Low-Power, Multifunction, Polyphase AFE
with Harmonics and Tamper Detect
______________________________________________________________________________________
25
READ MAXQ3183
SEND COMMAND BYTE 1
GET 0xC1?
GET 0xC2?
EXIT
SPI TIMEOUT (360ms)
DELAY > 400 SYSCLK
SEND COMMAND BYTE 2
SEND 0x00
DELAY > 400 SYSCLK
SEND 0x00
GET DATA BYTE
DELAY > 400 SYSCLK
GET 0x4E?
GET 0x41?
DONE?
N
N
N
Y
N
WRITE MAXQ3183
SEND COMMAND BYTE 1
GET 0xC1?
GET 0xC2?
EXIT
SPI TIMEOUT (360ms)
DELAY > 400 SYSCLK
SEND COMMAND BYTE 2
SEND DATA BYTE
DELAY > 400 SYSCLK
SEND 0x00
DELAY > 400 SYSCLK
GET 0x4E?
GET 0x41?
DONE?
GET 0x41?
N
N
N
N
Y
N

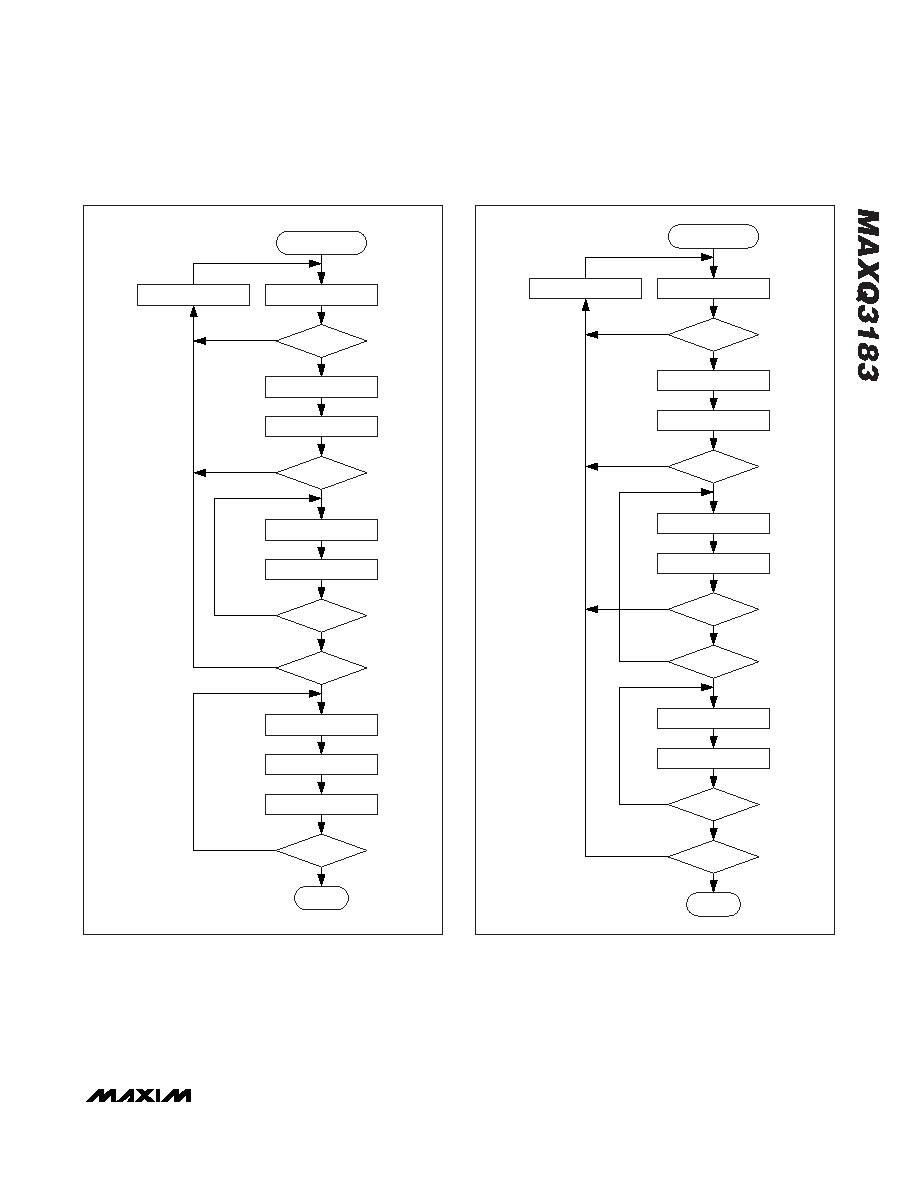

Figure 8. Flowchart for Writing to MAXQ3183
Figure 7. Flowchart for Reading from MAXQ3183
The virtual registers contain calculated values derived
from one or more real registers. They are calculated at
the time they are requested, and thus can involve addi-
tional time to return a value. Most virtual registers are 8
bytes in length and are delivered least significant byte
first.
