Low-Power, Multifunction, Polyphase AFE
with Harmonics and Tamper Detect
12
______________________________________________________________________________________
ELECTRICAL CHARACTERISTICS (continued)
(VAVDD = VDVDD = VRST to 3.6V, TA = -40°C to +85°C, unless otherwise noted.) (Note 2)
PARAMETER
SYMBOL
CONDITIONS
MIN
TYP
MAX
UNITS
SSEL Low to First SCLK Edge
(Slave Enable)
tSE
(Note 3)
4tSYS
ns
Last SCLK Edge to SSEL High
(Slave Disable)
tSD
tSYS +
5
ns
MOSI Valid to SCLK Sample
Edge (MOSI Setup)
tSIS
5
ns
SCLK Sample Edge to MOSI
Change (MOSI Hold)
tSIH
tSYS +
5
ns
SCLK Shift Edge to MISO Valid
(MISO Hold)
tSOV
3tSYS
+ 5
ns
Note 1: Specifications guaranteed by design but not production tested.
Note 2: Specifications to -40°C are guaranteed by design and are not production tested.
Note 3: tSYS = 1/fSYS.

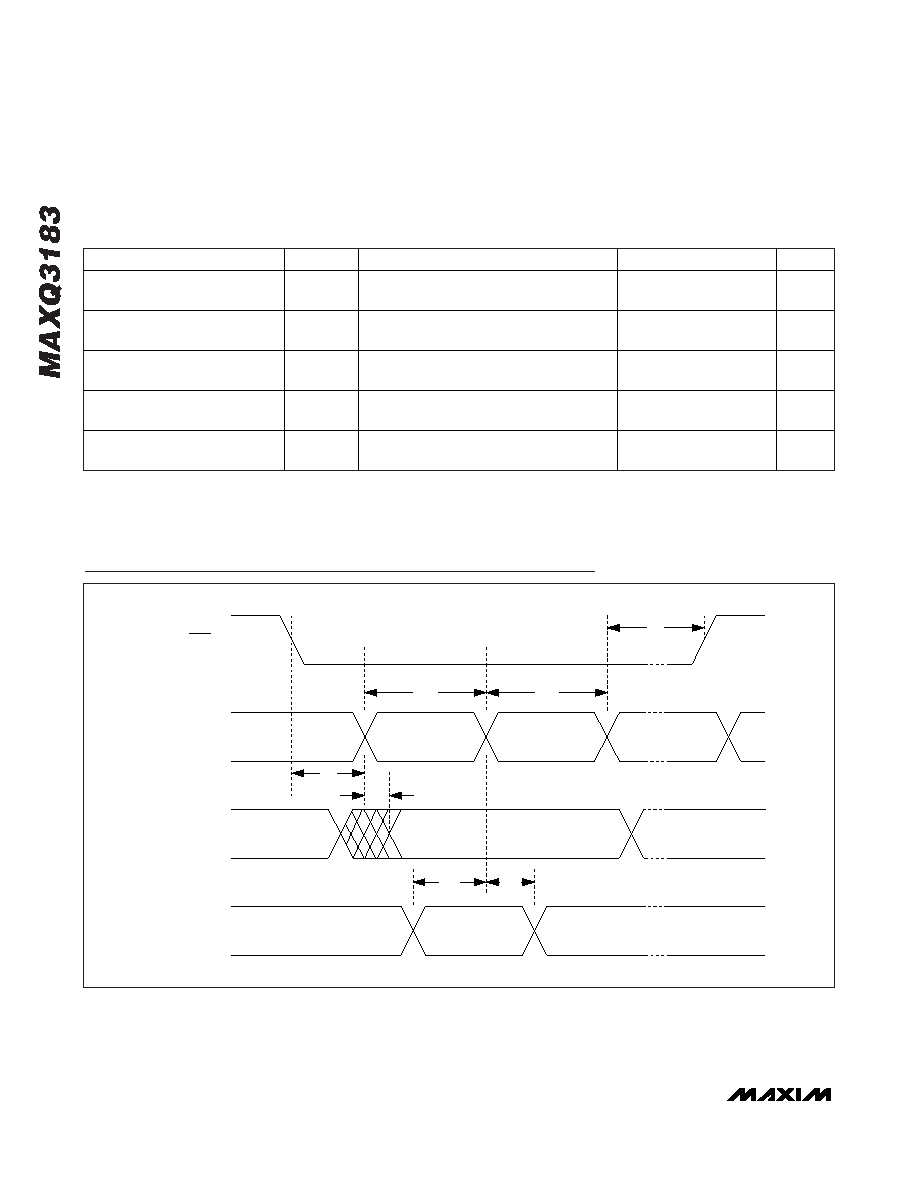

SPI Slave Mode Timing
SSEL
SHIFT EDGE
SAMPLE EDGE
SCLK
DATA OUTPUT
DATA INPUT
tSD
tSE
tSOV
tSIS
tSIH
tSCL
tSCH
