Data Sheet
ADP1052
Rev. B | Page 13 of 113
–60
–40
–20
0
20
40
TEMPERATURE (°C)
60
80
100
120
140
MAX SPEC
MIN SPEC
MAX
MIN
2.5
2.0
1.5
0.5
–0.5
1.0
0
–1.0
–1.5
–2.0
–2.5
MEAN

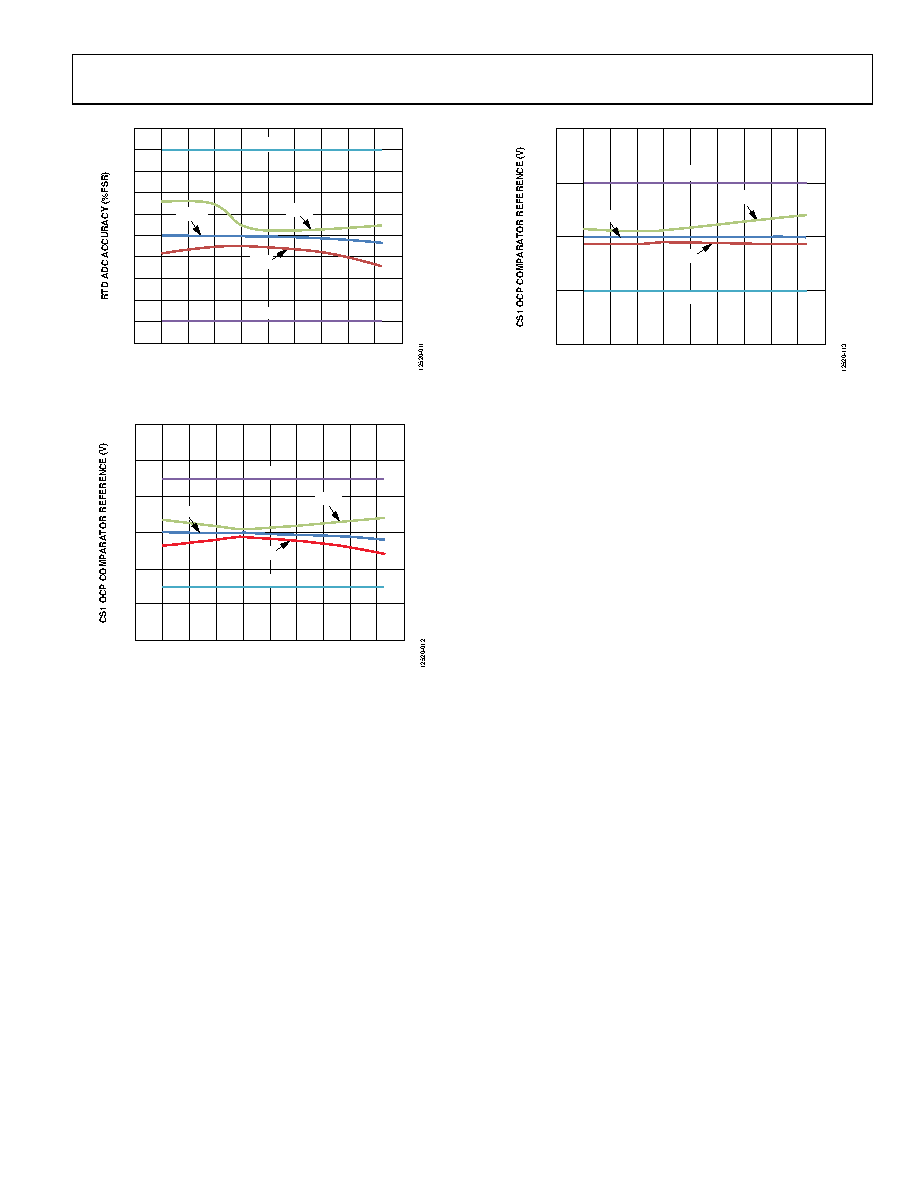

Figure 8. Resistance Temperature Detection (RTD) ADC Accuracy vs.
Temperature (From 10% to 90% of FSR)
1.23
1.22
1.21
1.20
1.19
1.18
1.17
–60
–40
–20
0
20
40
TEMPERATURE (°C)
60
80
100
120
140
MAX SPEC
MIN SPEC
MAX
MIN
MEAN
Figure 9. CS1 OCP Comparator Reference vs. Temperature (1.2 V Reference)
0.280
0.265
0.250
0.235
0.220
–60
–40
–20
0
20
40
TEMPERATURE (°C)
60
80
100
120
140
MAX SPEC
MIN SPEC
MAX
MIN
MEAN
Figure 10. CS1 OCP Comparator Reference vs. Temperature (0.25 V Reference)
