Data Sheet

ADP1053

Rev. A | Page 17 of 84

Voltage Feedback Sensing (VS+_A/VS+_B, VS−_A/VS−_B)

VS_A and VS_B are used for the control, monitoring, and

undervoltage protection (UVP) of the remote output voltage

of Channel A and Channel B, respectively. VS_A and VS_B are

differential inputs; they function as the main feedback sense

points for the control loop.

The VS_A/VS_B sense points on the power rail require an

external resistor divider to bring the nominal voltage to 1 V

at the VS pins (see Figure 11). This voltage provides the best

accuracy for the ADC reading.

VS_A/VS_B use ADC1 for the high accuracy feedback loop and

ADC2 for the high speed feedback loop.

ADCs

Σ-Δ ADCs have a resolution of one bit and operate differently

from traditional flash ADCs. The equivalent resolution obtain-

able depends on how long the output bit stream of the Σ-Δ

ADC is sampled.

Σ-Δ ADCs also differ from Nyquist rate ADCs in that the quan-

tization noise is not uniform across the frequency spectrum. At

lower frequencies the noise is lower, and at higher frequencies

the noise is higher (see Figure 12).

FREQUENCY

NYQUIST ADC

NOISE

Σ-∆ ADC

NOISE

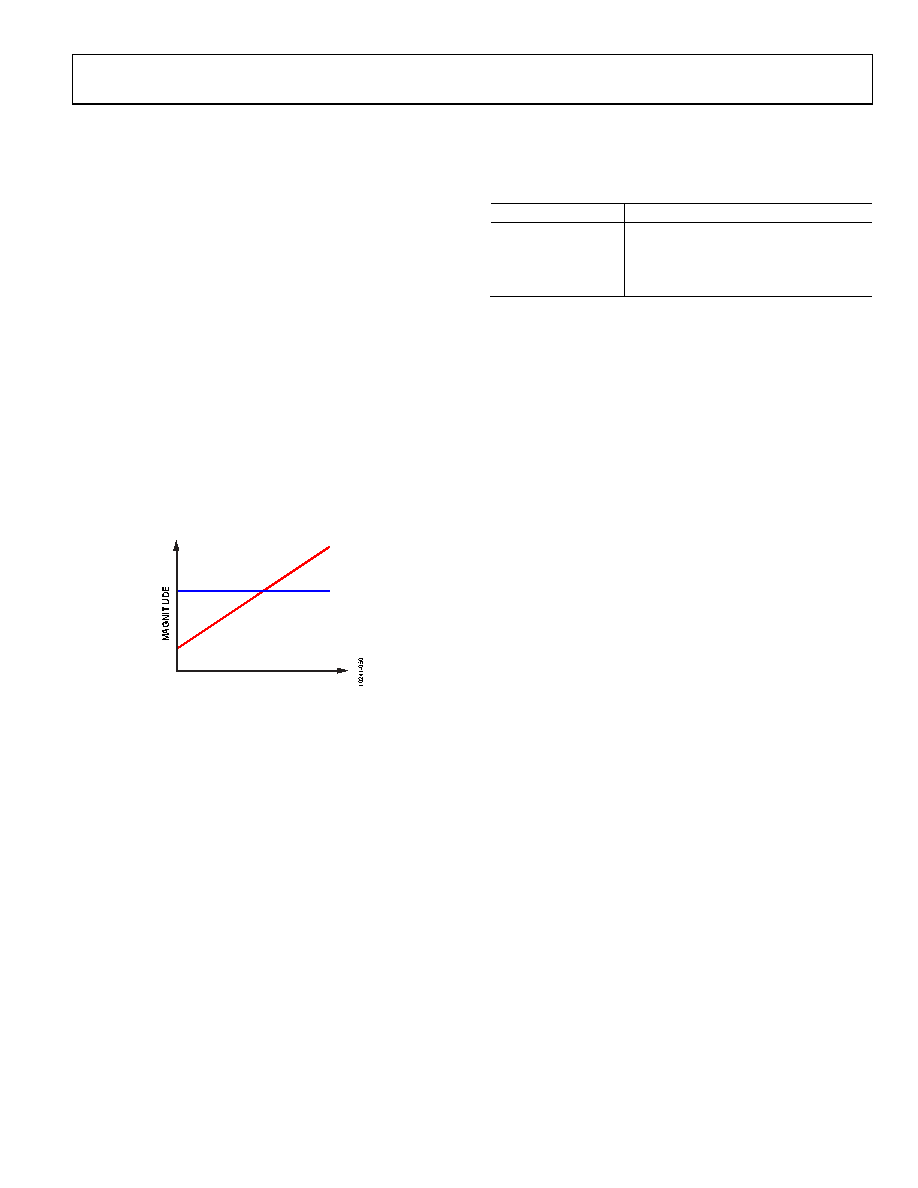

Figure 12. Noise Performance for Nyquist Rate and Σ-Δ ADCs

Two types of Σ-Δ ADCs are used in the feedback loop of the

ADP1053: a low frequency ADC and a high frequency ADC.

The low frequency ADC runs at approximately 1.56 MHz. For a

specified bandwidth, the equivalent resolution can be calculated

as follows:

ln(1.56 M/BW)/ln(2) = N bits

For example, at a bandwidth of 95 Hz, the equivalent

resolution/noise is

ln(1.5 M/95)/ln(2) = 14 bits

At a bandwidth of 1.5 kHz, the equivalent resolution/noise is

ln(1.56 M/1.5 k)/ln(2) = 10 bits

The high frequency ADC has a clock of 25 MHz. It is comb

filtered and outputs at the switching frequency (fSW) into the

digital filter.

The equivalent resolution for some sample frequencies is listed

in Table 7.

Table 7. Equivalent Resolution for High Frequency ADC

at Various Switching Frequencies

fSW (kHz)

High Frequency ADC Resolution

48.8

9 bits

97.7

8 bits

195.3

7 bits

390.6

6 bits

The high frequency ADC has a range of ±10 mV. With the

switching frequency (fSW) set to 200 kHz, the quantization noise

is 0.156 mV, which is one LSB (2 × 10 mV/27 = 0.156 mV).

Increasing fSW to 400 kHz increases the quantization noise

to 0.3125 mV (1 LSB = 2 × 10 mV/26 = 0.3125 mV).

OVP Sensing (OVP_A, OVP_B)

OVP_A and OVP_B are used for overvoltage protection of

Channel A and Channel B, respectively. They are referenced

to PGND_A and PGND_B.

The OVP_A/OVP_B sense points on the power rail require an

external resistor divider to bring the nominal voltage to 1 V at the

OVP_A/OVP_B pins (see Figure 11). This divided-down signal is

internally fed into a comparator. The output of the comparator

goes to the OVP fault flags. The OVP threshold level can be pro-

grammed from 0.75 V to 1.5 V. For more information about the

OVP flags, see the Overvoltage Protection (OVP) Flags section.

CURRENT SENSE

The ADP1053 has five separate current sense inputs: CS, CS1_A,

CS1_B, CS2_A, and CS2_B. These inputs are used to protect the

power supply when the current exceeds the preset current limit.

The registers that configure the current sensing inputs must be

calibrated to remove errors due to external components. For

more information, see the Power Supply Calibration and Trim

section.

CS and CS1 (CS1_A/CS1_B) Sensing

CS1_A and CS1_B are typically used for the monitoring and

protection of Channel A and Channel B, respectively, whereas

CS is used for the unregulated Channel C. Generally, the current

inputs are sensed through a current transformer (CT). The input

signals at the pins are fed into ADCs for current monitoring.

The valid input range of these ADCs is from 0 V to 1.4 V. The

input signal is also fed into a comparator for fast overcurrent

protection (fast OCP). Typical configurations for current

sensing are shown in Figure 13 and Figure 14.
