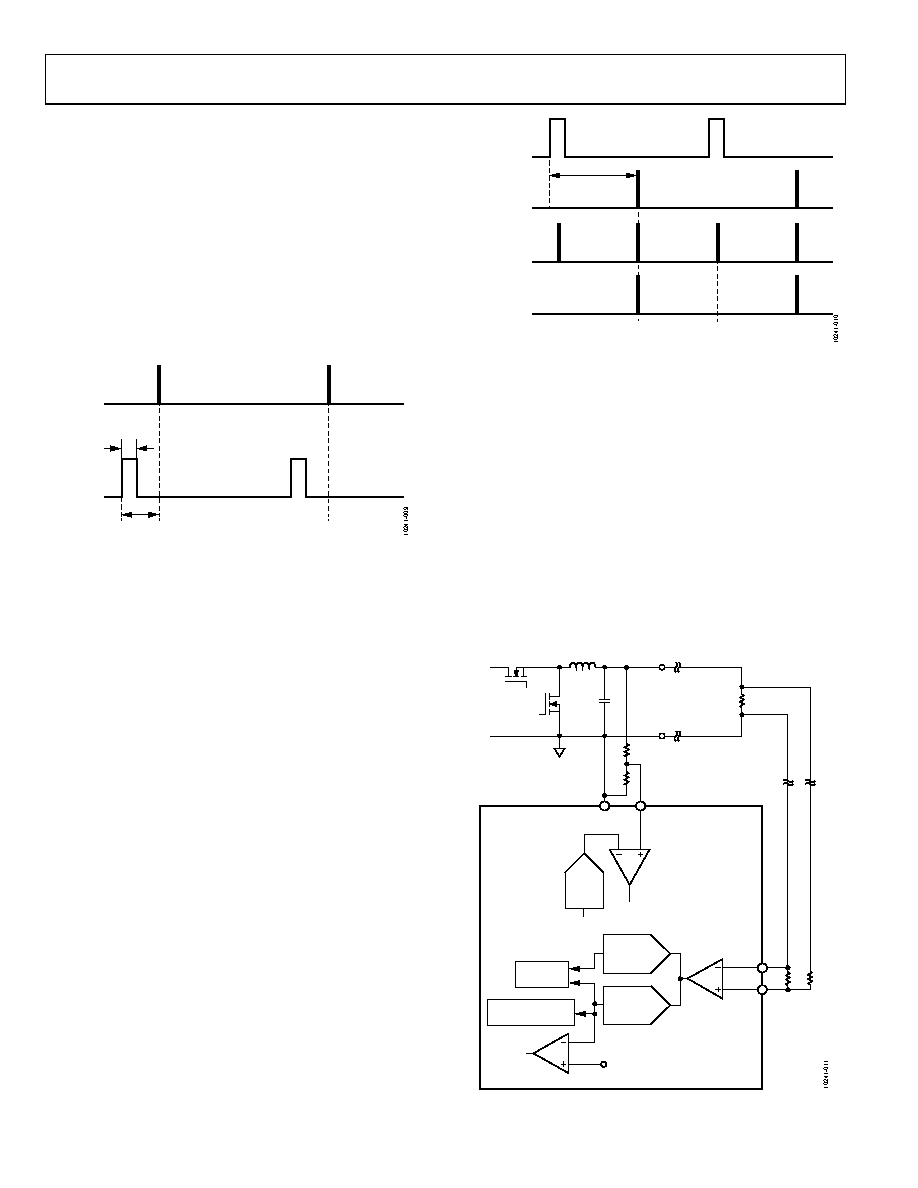

FREQUENCY SYNCHRONIZATION

Synchronization Output

The FLGO/SYNO pin can be programmed to generate a synchro-

nization reference output using Bit 3 of Register 0xFE0F. The pin

outputs a 320 ns pulse-width signal, whose frequency follows

either Channel A or Channel C (programmable using Bit 3 of

To compensate for the propagation delays in the ADP1053

synchronization scheme, the SYNO signal has a 760 ns lead

time before the start of the switching cycle.

Figure 9 shows an example of the SYNO timing when using

Channel A as the reference.

760ns

CLOCKA

SYNO

320ns

Figure 9. SYNO Timing

Synchronization Input

When the FLGI/SYNI pin is configured as a synchronization

input, the external clock frequency at the pin must be between

90% and 110% of the internal switching frequency set by the

channel’s internal switching frequency register. If the switching

cycle is out of this range or if there is no rising edge detected for

80 μs, the part exits synchronization mode, and each channel

operates at its preset internal switching frequency. The maximum

external synchronization clock frequency should be less than

625 kHz. If the FLGI/SYNI pin is programmed for the FLGI

function, the synchronization function is disabled.

If two or more channels are enabled for synchronization, the

valid synchronization frequency range is determined by the

channel with the lowest synchronization multiple. The multiple

is set using Bits[7:6] of Register 0xFE0A (Channel A), Register

0xFE0B (Channel B), and Register 0xFE0C (Channel C). If the

multiple value is the same for two or more channels, the value

set for Channel A has the highest priority and the value set for

Channel C has the lowest priority.

Note that if Channel A or Channel C is synchronized with an

external clock at the SYNI pin, the SYNO frequency is the preset

internal frequency but not the operating switching frequency.

For example, if the preset frequency of Channel A is 100 kHz

and the SYNO frequency is configured to follow Channel A,

the SYNO frequency is still 100 kHz even when the external

synchronization clock is at 105 kHz.

To ensure proper operation of the synchronization mode, the

synchronization multiple for at least one channel must be set

to 1 (Bits[7:6] = 00).

760ns +

tSYNC_DELAY

tS/2

CLOCKA

CLOCKC

CLOCKSYNC

SYNI

Figure 10. Synchronization Timing

VOLTAGE SENSE

Multiple voltage sense inputs on the ADP1053 are used for the

monitoring, control, and protection of the power supply output.

The voltage information is available through the PMBus/I2C

interface. All voltage sense points can be calibrated digitally to

remove any errors due to external components. This calibration

can be performed in the production environment, and the settings

saved in the EEPROM of the ADP1053. For more information,

see the Power Supply Calibration and Trim section.

The update rate of the ADC from a control loop standpoint is

set to the switching frequency. For example, if the switching

frequency is set to 100 kHz, the ADC outputs a signal at a rate

of 100 kHz to the control loop. Because the Σ-Δ ADC samples

at 1.6 MHz, the output of the ADC is the average of the

16 readings per switching cycle.

ADP1053

HIGH SPEED

ADC2

ACCURATE

ADC1

LOAD

DAC

6 BITS

OVP

DIGITAL

FILTER

VOLTAGE SENSE

REGISTERS

VS+_A/

VS+_B

VS–_A/

VS–_B

UVP

THRESHOLD

PGND_A/

PGND_B

OVP_A/

OVP_B

Figure 11. Voltage Sense Configuration
