ADMV1455BBCZ-R7 datasheet(21/141 Pages) AD

Os motores de busca de Datasheet de Componentes eletrônicos

ADMV1455BBCZ-R7 Folha de dados(PDF) 21 Page - Analog Devices

Nome de Peças	ADMV1455BBCZ-R7

Descrição Electrónicos	17.7GHz to 55GHz, Wideband, Microwave Downconverter

PDF	141 Pages

Scroll/Zoom	100%

Fabricante Electrônico	AD [Analog Devices]

Página de início	http://www.analog.com

Logo

21 / 141 page

Data Sheet

ADMV1455

TYPICAL PERFORMANCE CHARACTERISTICS

analog.com

Rev. 0 | 21 of 141

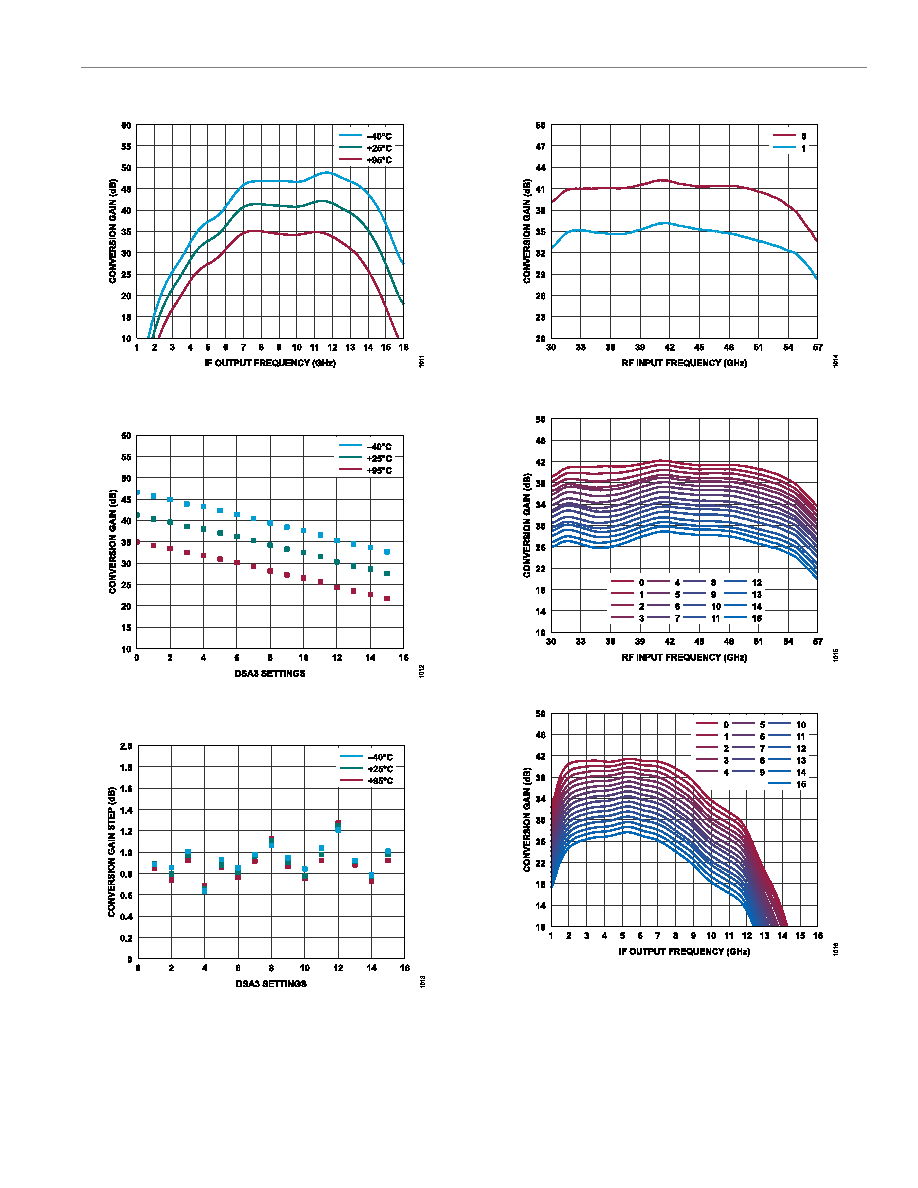

Figure 14. Conversion Gain vs. IF Output Frequency at Various

Temperatures, 10GHz IF Filter

Figure 15. Conversion Gain vs. DSA3 Settings at Various Temperatures,

Single fRF = 49GHz

Figure 16. Conversion Gain Step vs. DSA3 Settings at Various Temperatures,

Single fRF = 49GHz

Figure 17. Conversion Gain vs. RF Input Frequency at Various DSA2 Settings

Figure 18. Conversion Gain vs. RF Input Frequency at Various DSA3 Settings

Figure 19. Conversion Gain vs. IF Output Frequency at Various DSA4

Settings, 4GHz IF Filter
