CC1010

SWRS047

Page 57 of 152

System Clk

Divide by 12

Divide by 4

T0 / T1

T0M / T1M

C/T0 / C/T1

TR0 / TR1

GATE0 / GATE1

INT0 / INT1

TL0 / TL1

TH0 / TH1

TF0 / TF1

Timer 0 / Timer 1

interrupt request

Clock

Mux

Reload

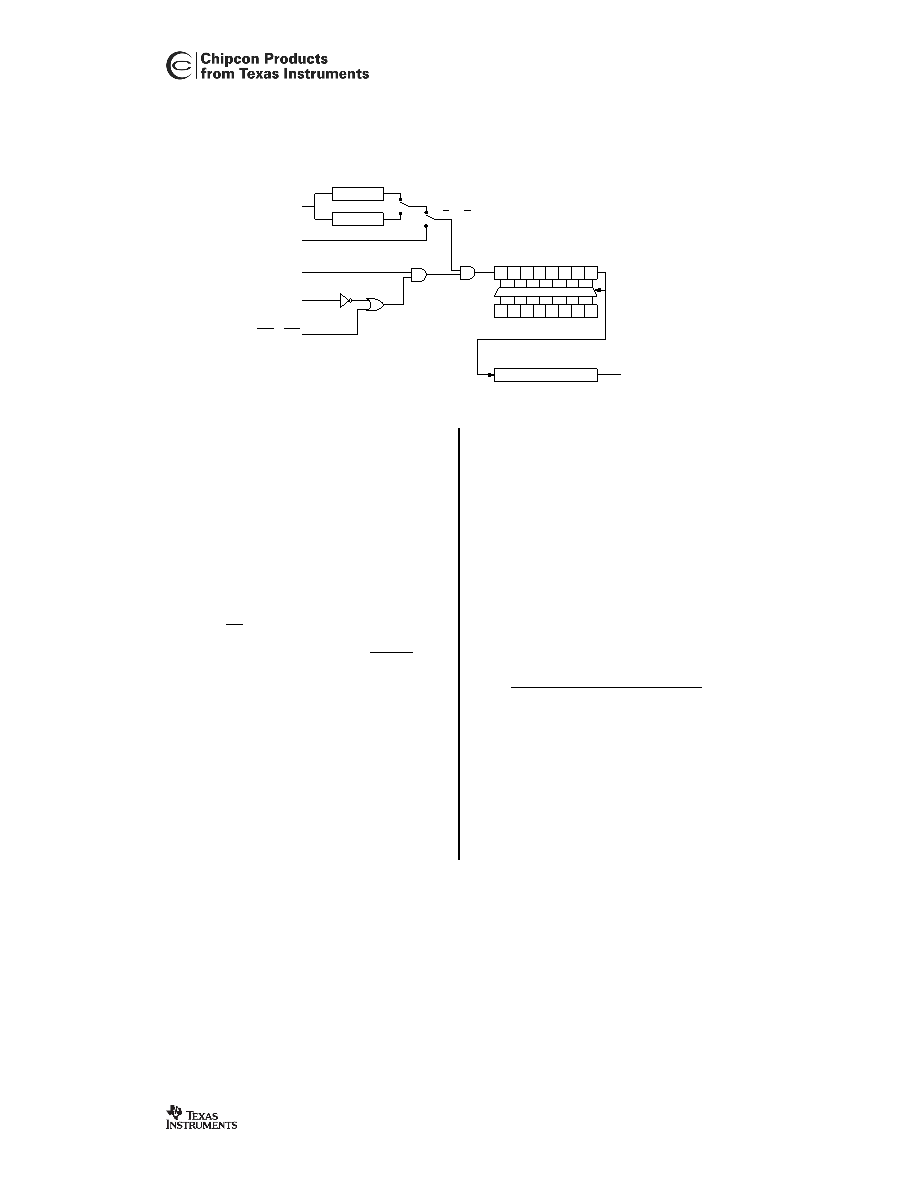

Figure 9. Mode 2 operation for Timer / Counter 0 or 1

16.2.5

Mode 3

In Mode 3, which is illustrated in Figure 10,

Timer 0 is operated as two separate 8-bit

counters and Timer 1 stops counting and

holds its value.

TL0 is configured as an 8-bit counter

controlled by the normal Timer 0 control

bits. It counts either clock cycles divided

by 4 or by 12 (as given by CKCON.T0M), or

high to low transitions on T0 (as given by

TMOD.C/ T 0). It is also possible to use

the GATE function for TL0 to set INT0 as

count enable.

TH0 is locked into a timer function, and

takes over the use of TR1 and TF1 from

Timer 1. It counts clock cycles divided by 4

or 12 (as given by CKCON.T1M). TH0 may

then generate Timer 1 interrupts.

Timer 1 has limited usage when Timer 0 is

in mode 3. This is because Timer 0 uses

the Timer 1 control bit TR1 and the

interrupt flag TF1. However, Timer 1 can

still be used for baud rate generation and

the Timer 1 count values are still available

in the TL1 and TH1 registers.

Control of Timer 1 when Timer 0 is in

mode 3 is done through the Timer 1 mode

bits. To turn Timer 1 on, set Timer 1 to

mode 0, 1 or 2. To turn Timer 1 off, set it

to mode 3. Timer 1 can count clock cycles

divided by 4 or 12 or high to low transitions

on the T1 pin. The GATE function is also

available.

In Mode 3, the timer timeout periods are

determined by:

(

)(

)

xosc

TYx

TxM

CKCON

−

⋅

−

256

where TYx is the contents of the THx or

TLx register if this is reloaded in the

interrupt handler, or 0 if no reload is done.
