EM351 / EM357

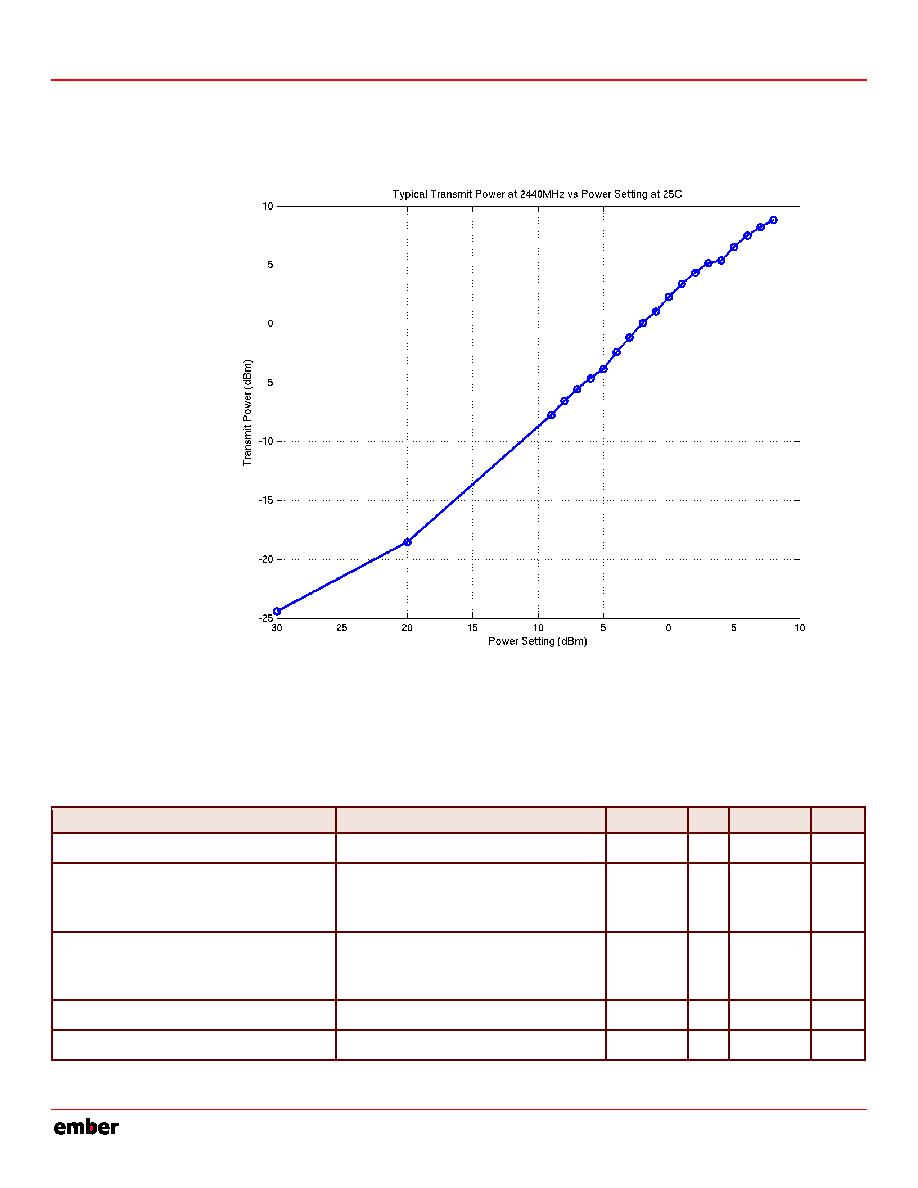

Figure 2-2 shows typical output power against power setting on the Ember reference design.
Figure 2-2. Transmit Output Power
2.5
Digital I/O Specifications
Table 2-5 lists the digital I/O specifications for the EM35x. The digital I/O power (named VDD_PADS) comes
from three dedicated pins (Pins 23, 28 and 37). The voltage applied to these pins sets the I/O voltage.
Table 2-5. Digital I/O specifications
Parameter
Test Conditions
Min.
Typ.
Max.
Unit
Voltage supply (Regulator Input voltage)
2.1
3.6
V
Low Schmitt switching threshold
VSWIL
Schmitt input threshold going from high to
low
0.42 x
VDD_PADS
0.50 x
VDD_PADS
V
High Schmitt switching threshold
VSWIH
Schmitt input threshold going from low to
high
0.62 x
VDD_PADS
0.80 x
VDD_PADS
V
Input current for logic 0
IIL
-0.5
μA
Input current for logic 1
IIH
+0.5
μA
2-5
120-035X-000D
Preliminary
