CC1150
SWRS037A
Page 57 of 60
26 Package Description (QLP 16)
26.1
Recommended PCB layout for package (QLP 16)

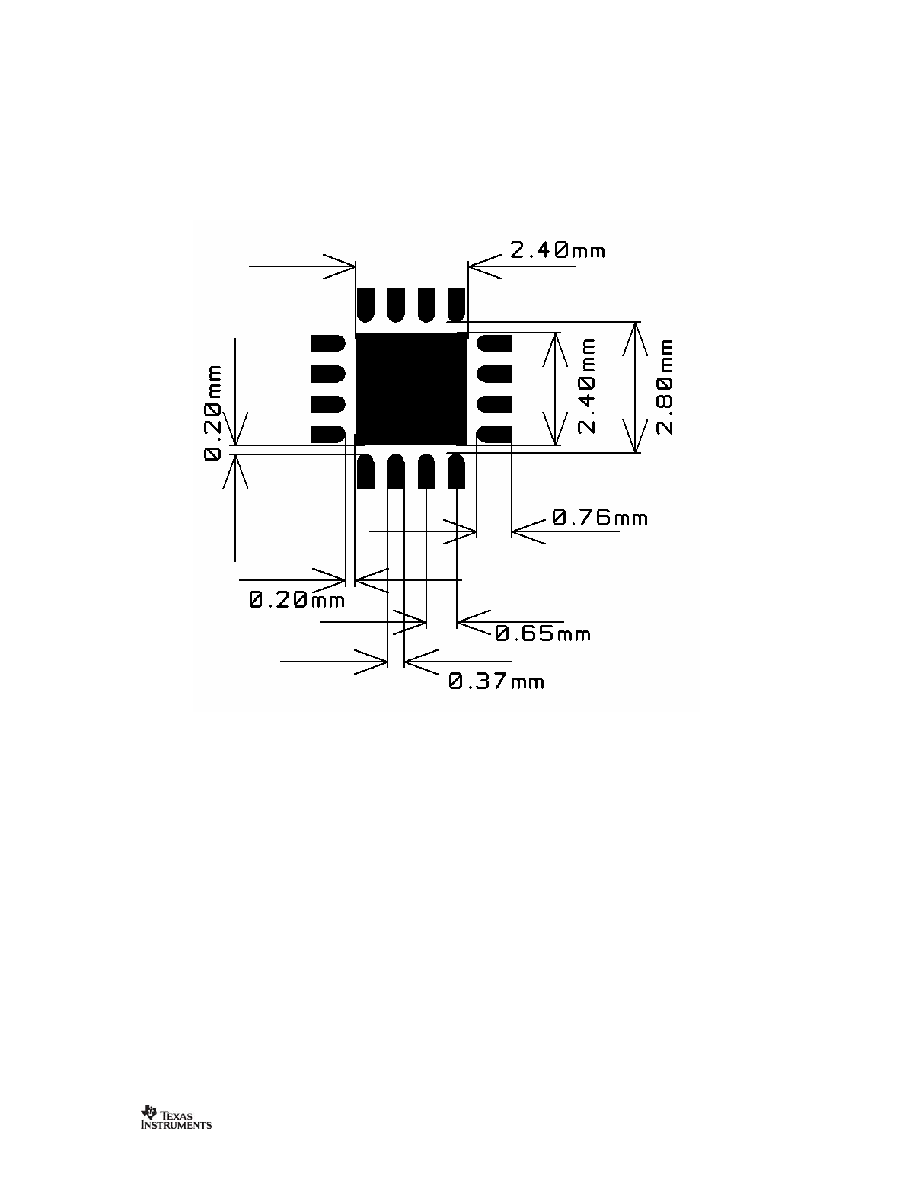

Figure 24: Recommended PCB layout for QLP 16 package
Note: The figure is an illustration only and not to scale. There are five 10 mil diameter via holes
distributed symmetrically in the ground pad under the package. See also the CC1150EM
reference design ([1] and [2]).
26.2
Soldering information
The recommendations for lead-free reflow in IPC/JEDEC J-STD-020 should be followed.
