4173D–USB–02/06

AT89C5132

11.4.1

Entering Power-down Mode

To enter Power-down mode, set PD bit in PCON register. The AT89C5132 enters the Power-

down mode upon execution of the instruction that sets PD bit. The instruction that sets PD bit is

the last instruction executed.

11.4.2

Exiting Power-down Mode

If V

DD was reduced during the Power-down mode, do not exit Power-down mode until VDD is

restored to the normal operating level.

There are 2 ways to exit the Power-down mode:

Generate an enabled external interrupt.

–

The AT89C5132 provides capability to exit from Power-down using INT0, INT1, and

KIN3:0 inputs. In addition, using KIN input provides high or low level exit capability

(see Section “Keyboard Interface”, page 181).

Hardware clears PD bit in PCON register which starts the oscillator and restores the

clocks to the CPU and peripherals. Using INTn input, execution resumes when the

input is released (see Figure 11-3) while using KINx input, execution resumes after

counting 1024 clock ensuring the oscillator is restarted properly (see Figure 11-4).

This behavior is necessary for decoding the key while it is still pressed. In both

cases, execution resumes with the interrupt service routine. Upon completion of the

interrupt service routine, program execution resumes with the instruction

immediately following the instruction that activated Power-down mode.

Note:

1. The external interrupt used to exit Power-down mode must be configured as level sensitive

(

INT0 and INT1) and must be assigned the highest priority. In addition, the duration of the

interrupt must be long enough to allow the oscillator to stabilize. The execution will only

resume when the interrupt is deasserted.

2. Exit from power-down by external interrupt does not affect the SFRs nor the internal RAM

content.

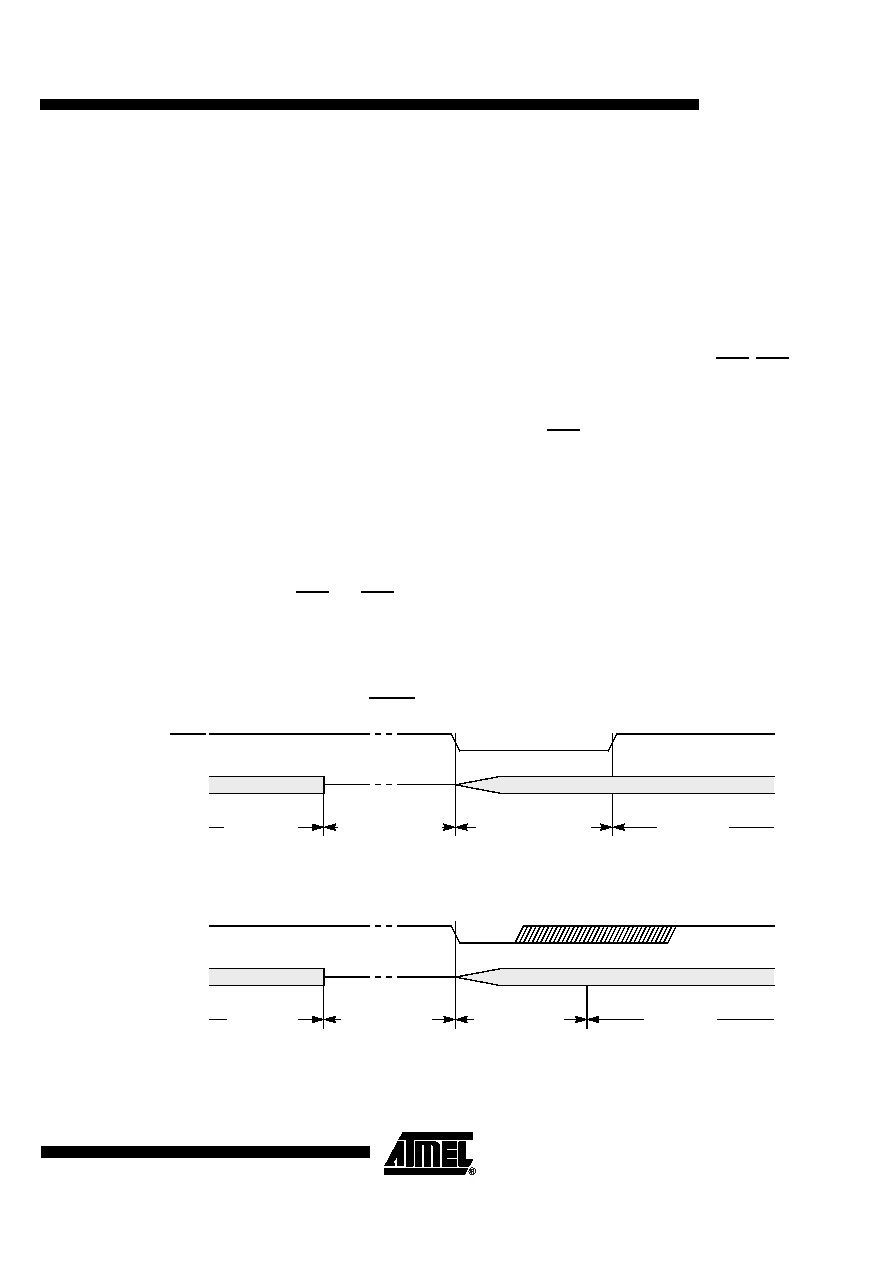

Figure 11-3.

Power-down Exit Waveform Using INT1:0

Figure 11-4.

Power-down Exit Waveform Using KIN3:0

Note:

1. KIN3:0 can be high or low-level triggered.

Generate a reset.

INT1:0

OSC

Power-down Phase

Oscillator Restart

Active Phase

Active phase

KIN3:0

OSC

Power-down

1024 clock count

Active phase
