4173D–USB–02/06

AT89C5132

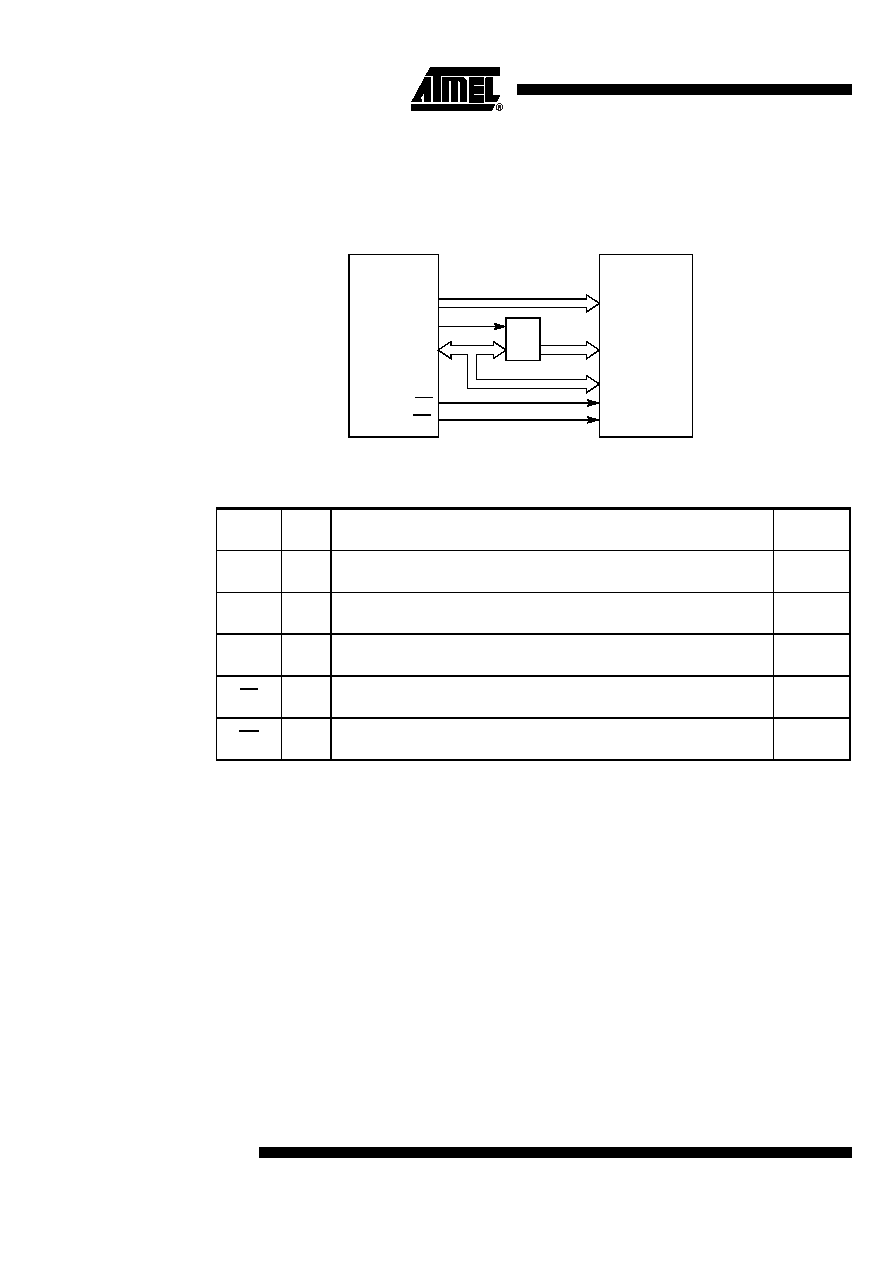

Figure 8-3 shows the structure of the external address bus. P0 carries address A7:0 while P2

carries address A15:8. Data D7:0 is multiplexed with A7:0 on P0. Table 12 describes the exter-

nal memory interface signals.

Figure 8-3.

External Data Memory Interface Structure

Table 12. External Data Memory Interface Signals

8.2.2

Page Access Mode

The AT89C5132 implement a feature called Page Access that disables the output of DPH on P2

when executing MOVX @DPTR instruction. Page Access is enable by setting the DPHDIS bit in

AUXR register.

Page Access is useful when application uses both ERAM and 256 Bytes of XRAM. In this case,

software modifies intensively EXTRAM bit to select access to ERAM or XRAM and must save it

if used in interrupt service routine. Page Access allows external access above 00FFh address

without generating DPH on P2. Thus ERAM is accessed using MOVX @Ri or MOVX @DPTR

with DPTR < 0100h, < 0200h, < 0400h or < 0800h depending on the XRS1:0 bits value. Then

XRAM is accessed using MOVX @DPTR with DPTR

≥ 0800h regardless of XRS1:0 bits value

while keeping P2 for general I/O usage.

8.2.3

External Bus Cycles

This section describes the bus cycles that AT89C5132 executes to read (see Figure 8-4), and

write data (see Figure 8-5) in the external data memory.

Signal

Name

Type

Description

Alternate

Function

A15:8

Address Lines

Upper address lines for the external bus.

P2.7:0

AD7:0

I/O

Address/Data Lines

Multiplexed lower address lines and data for the external memory.

P0.7:0

ALE

Address Latch Enable

ALE signals indicates that valid address information are available on lines AD7:0.

Read

Read signal output to external data memory.

P3.7

Write

Write signal output to external memory.

P3.6

RAM

PERIPHERAL

AT89C5132

AD7:0

A15:8

A7:0

A15:8

D7:0

A7:0

ALE

Latch
