CC1010

SWRS047A

Page 134 of 146

For a more thorough primer on antennas,

please refer to Application Note AN003

SRD Antennas available on Chipcon’s

web site.

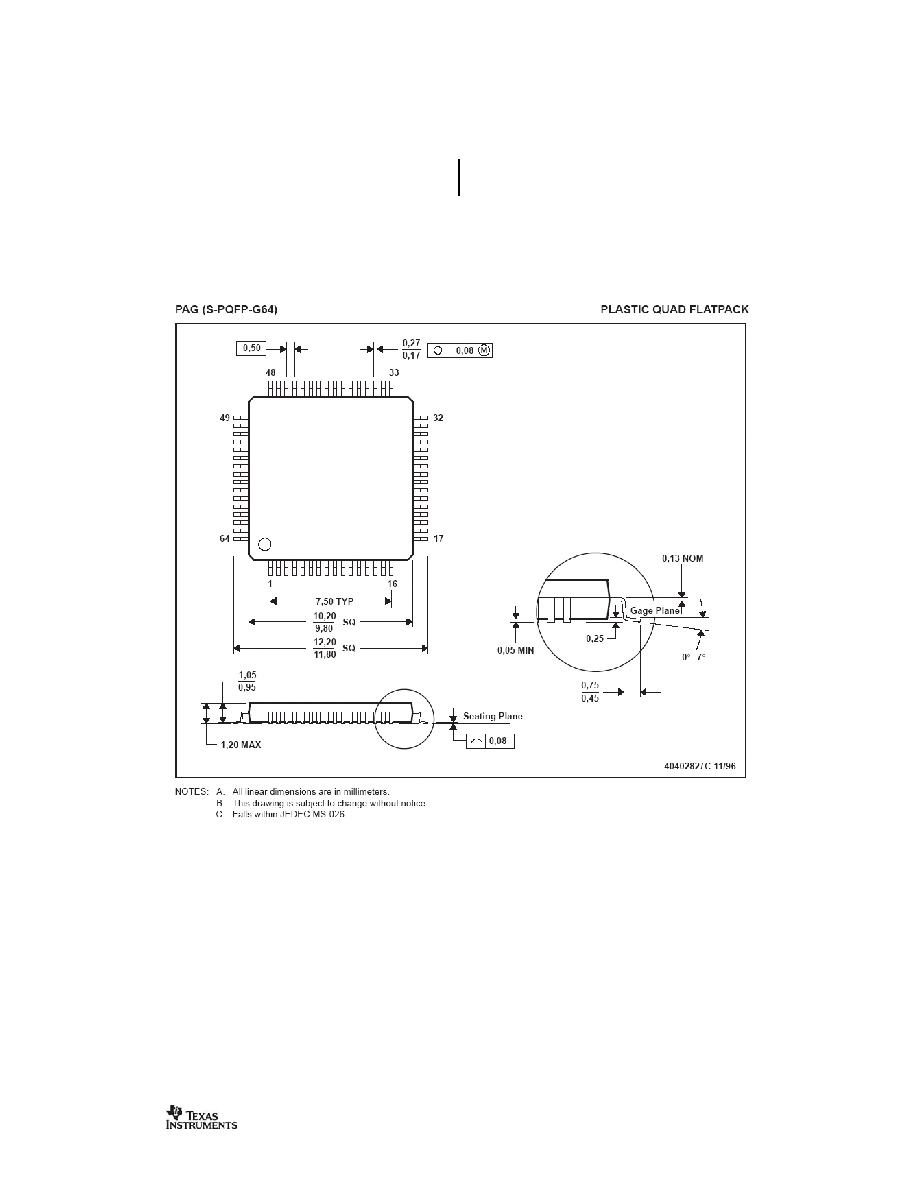

20. Package Description (TQFP-64)

CC1010 is packaged in a TQFP-64 package. The package is shown in Figure 45. Please note

that the drawing in Figure 45 is not to scale.

Figure 45. TQFP-64 package

21. Soldering Information

The recommended soldering profiles for both leaded and Pb-free packages are according to

IPC/JEDEC J-STD-020.

22. Tray Specification
