17.4 Transceiver Configuration Overview

The RF transceiver configuration can be

optimised to achieve the best performance

for different applications. Through the SFR

registers the following key parameters can

be programmed:

• Receive / transmit mode

• RF output power

• Frequency synthesiser key parameters:

RF output frequency, FSK frequency

separation (deviation), crystal oscillator

reference frequency

• Power-down / power-up mode

• Data rate and data format (NRZ,

Manchester

coded,

Transparent

UART interface)

• Synthesiser lock indicator mode

• Optional RSSI or external IF output

17.4.1

SmartRF

® Studio

Chipcon provides users of

CC1010 with a

Windows application, SmartRF

® Studio,

which generates all necessary

CC1010 RF

configuration settings based on the user's

selections of various parameters. These

SFR register settings can be used in a

CC1010 program to configure the RF. In

addition SmartRF

® Studio will provide the

user with the component values needed

for the input/output matching circuit and

the VCO inductor.

Chipcon recommends using the register

settings found using the SmartRF

® Studio

software. These are the register settings

that

Chipcon

can

guarantee

across

temperature, voltage and process. Please

visit the Chipcon web site regularly for

updates to the SmartRF

® Studio software,

or subscribe to the Chipcon Developer’s

Newsletter to be notified of updates.

Figure 21 shows the user interface of

SmartRF

® Studio.

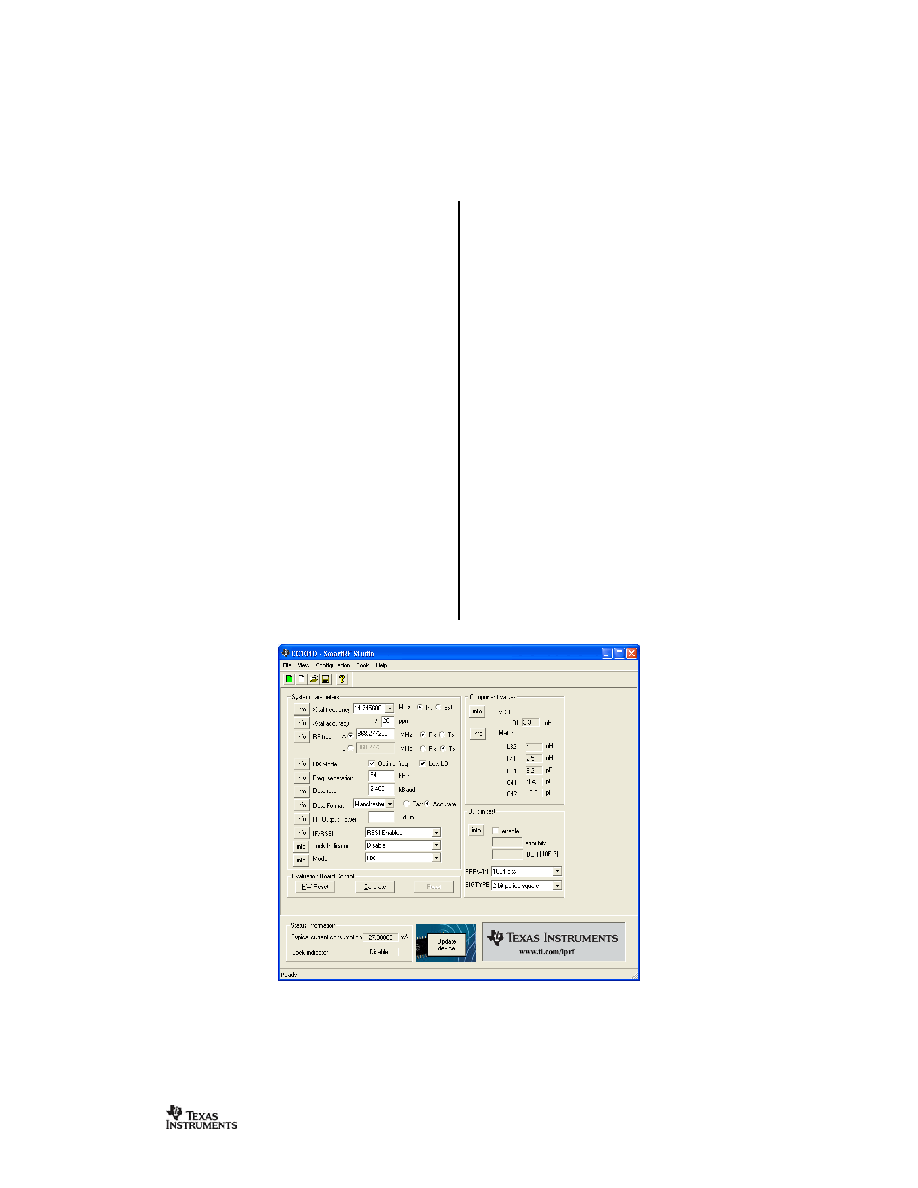

Figure 21. SmartRF

® Studio
