17.21 IF output

CC1010 has a built-in 10.7 MHz IF output

buffer.

This buffer can be used in

applications requiring image frequency

rejection.

The system is then built with

CC1010, a 10.7 MHz ceramic filter, SAW

front-end filter and an external 10.7 MHz

demodulator. The matching network for an

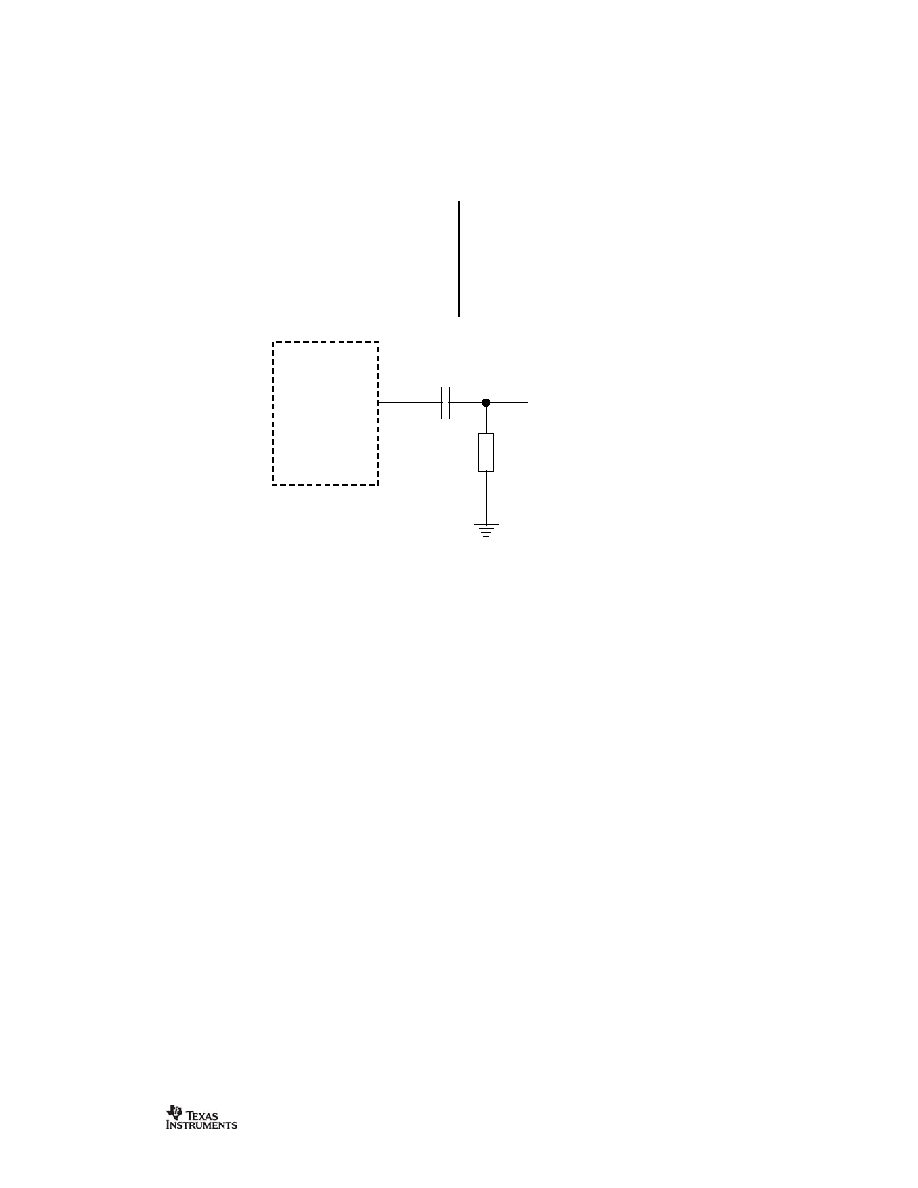

external IF filter is shown in Figure 43.

R281 = 470

Ω, C281 = 3.3nF. This

external network provides a 330

Ω source

impedance for the 10.7 MHz ceramic filter.

AD2 (RSSI/IF)

CC1010

R281

C281

To 10.7MHz filter

and demodulator

Figure 43. IF Output
