ADL8113ACCZ-R7 Folha de dados(PDF) 16 Page - Analog Devices

Nome de Peças ADL8113ACCZ-R7
Descrição Electrónicos  10MHz to 12GHz Low Noise Amplifier with 10MHz to 14GHz Bypass Switches
PDF  37 Pages
Scroll/Zoom Zoom In 100%  Zoom Out
Fabricante Electrônico  AD [Analog Devices]
Página de início  http://www.analog.com
Logo AD - Analog Devices

ADL8113ACCZ-R7 Folha de dados(HTML) 16 Page - Analog Devices

Back Button ADL8113ACCZ-R7 Datasheet HTML 12Page - Analog Devices ADL8113ACCZ-R7 Datasheet HTML 13Page - Analog Devices ADL8113ACCZ-R7 Datasheet HTML 14Page - Analog Devices ADL8113ACCZ-R7 Datasheet HTML 15Page - Analog Devices ADL8113ACCZ-R7 Datasheet HTML 16Page - Analog Devices ADL8113ACCZ-R7 Datasheet HTML 17Page - Analog Devices ADL8113ACCZ-R7 Datasheet HTML 18Page - Analog Devices ADL8113ACCZ-R7 Datasheet HTML 19Page - Analog Devices ADL8113ACCZ-R7 Datasheet HTML 20Page - Analog Devices Next Button
Zoom Inzoom in Zoom Outzoom out
 16 / 37 page
background image
Data Sheet
ADL8113
TYPICAL PERFORMANCE CHARACTERISTICS
analog.com
Rev. 0 | 16 of 37

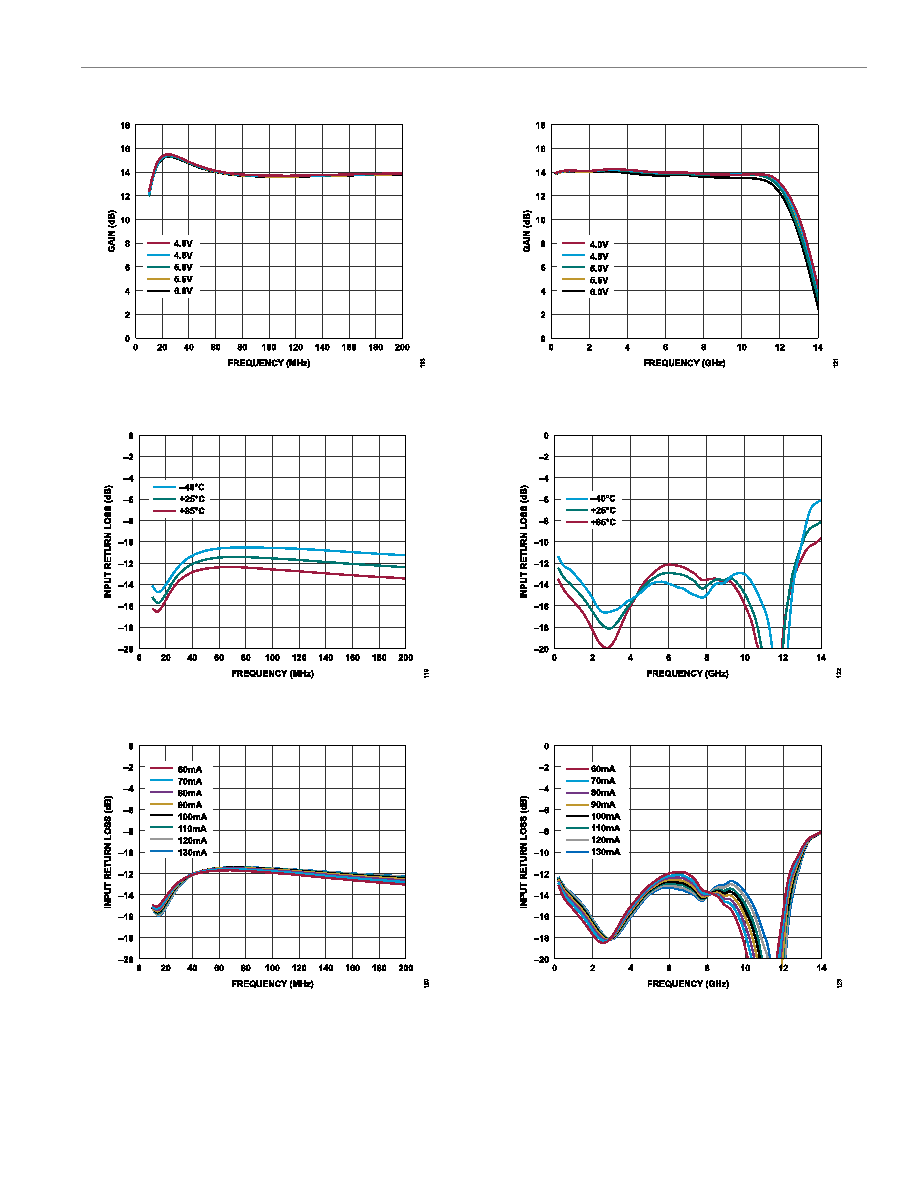

Figure 18. Gain vs. Frequency for Various Supply Voltages,
10MHz to 200 MHz, VDD = 5V, IDQ = 110mA
Figure 19. Input Return Loss vs. Frequency for Various Temperatures,
10MHz to 200MHz, VDD = 5V, IDQ = 110mA
Figure 20. Input Return Loss vs. Frequency for Various IDQ Values,
10MHz to 200MHz, VDD = 5V
Figure 21. Gain vs. Frequency for Various Supply Voltages,
200MHz to 14GHz, IDQ = 110mA
Figure 22. Input Return Loss vs. Frequency for Various Temperatures,
200MHz to 14GHz, VDD = 5V, IDQ = 110mA
Figure 23. Input Return Loss vs. Frequency for Various IDQ Values,
200MHz to 14GHz, VDD = 5V
