Data Sheet
ADL8113
TYPICAL PERFORMANCE CHARACTERISTICS
analog.com
Rev. 0 | 15 of 37
INTERNAL AMPLIFIER MODE

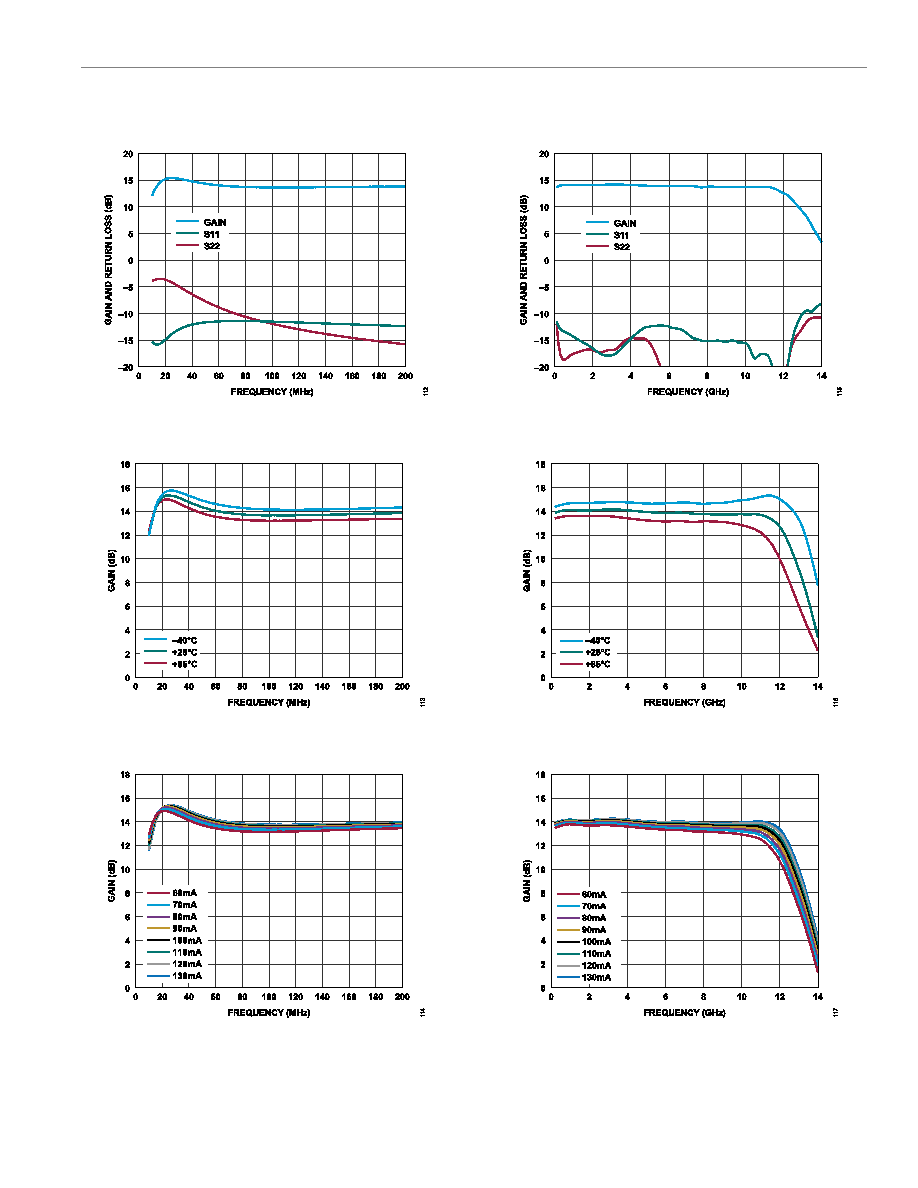

Figure 12. Gain and Return Loss vs. Frequency, 10MHz to 200MHz, VDD = 5V,
IDQ = 110mA
Figure 13. Gain vs. Frequency for Various Temperatures, 10MHz to 200MHz,
VDD = 5V, IDQ = 110mA
Figure 14. Gain vs. Frequency for Various IDQ Values, 10MHz to 200MHz,
VDD = 5V
Figure 15. Gain and Return Loss vs. Frequency, 200MHz to 14GHz, VDD = 5V,
IDQ = 110mA
Figure 16. Gain vs. Frequency for Various Temperatures, IDQ = 110mA,
200MHz to 14GHz
Figure 17. Gain vs. Frequency for Various IDQ Values, 200MHz to 14GHz,
VDD = 5V, IDQ = 110mA
