Data Sheet

ADL8113

ABSOLUTE MAXIMUM RATINGS

analog.com

Rev. 0 | 12 of 37

Table 8. Absolute Maximum Ratings

Parameter

Rating

VDD1

VDD2

−0.3V to +3.6V

VSS2

−3.6V to +0.3V

Control Voltage (VA and VB) Range

−0.3V to VDD2 + 0.3V

RF Input Power (RFIN)

Internal Amplifier Mode

31dBm

Internal and External Bypass Mode (Derate at

Lower Frequencies, According to Figure 2)

27.5dBm

Hot Switch Power Level

External and Internal Switch Mode

27.5dBm

Continuous Power Dissipation,PDISS (TCASE = 85°C,

Derate 11.1mW/°C Above 85°C)

Temperature Range

Storage

−40°C to +125°C

Operating

−40°C to +85°C

Nominal Channel (TCASE = 85°C, VDD = 5V, IDQ =

110mA, PIN = Off)

134.5°C

Maximum Channel

175°C

Stresses at or above those listed under Absolute Maximum Ratings

may cause permanent damage to the product. This is a stress

rating only; functional operation of the product at these or any other

conditions above those indicated in the operational section of this

specification is not implied. Operation beyond the maximum operat-

ing conditions for extended periods may affect product reliability.

THERMAL RESISTANCE

Overall thermal performance is directly linked to the printed circuit

board (PCB) design and operating environment. Careful attention to

PCB thermal design is required.

θJC is the channel-to-case thermal resistance (channel to exposed

metal ground paddle/pad on the underside of the device).

Table 9. Thermal Resistance

Package Type

θJC

Unit

CC-28-4

Worst Case, TCASE = 85°C1

°C/W

1 Across all specified conditions.

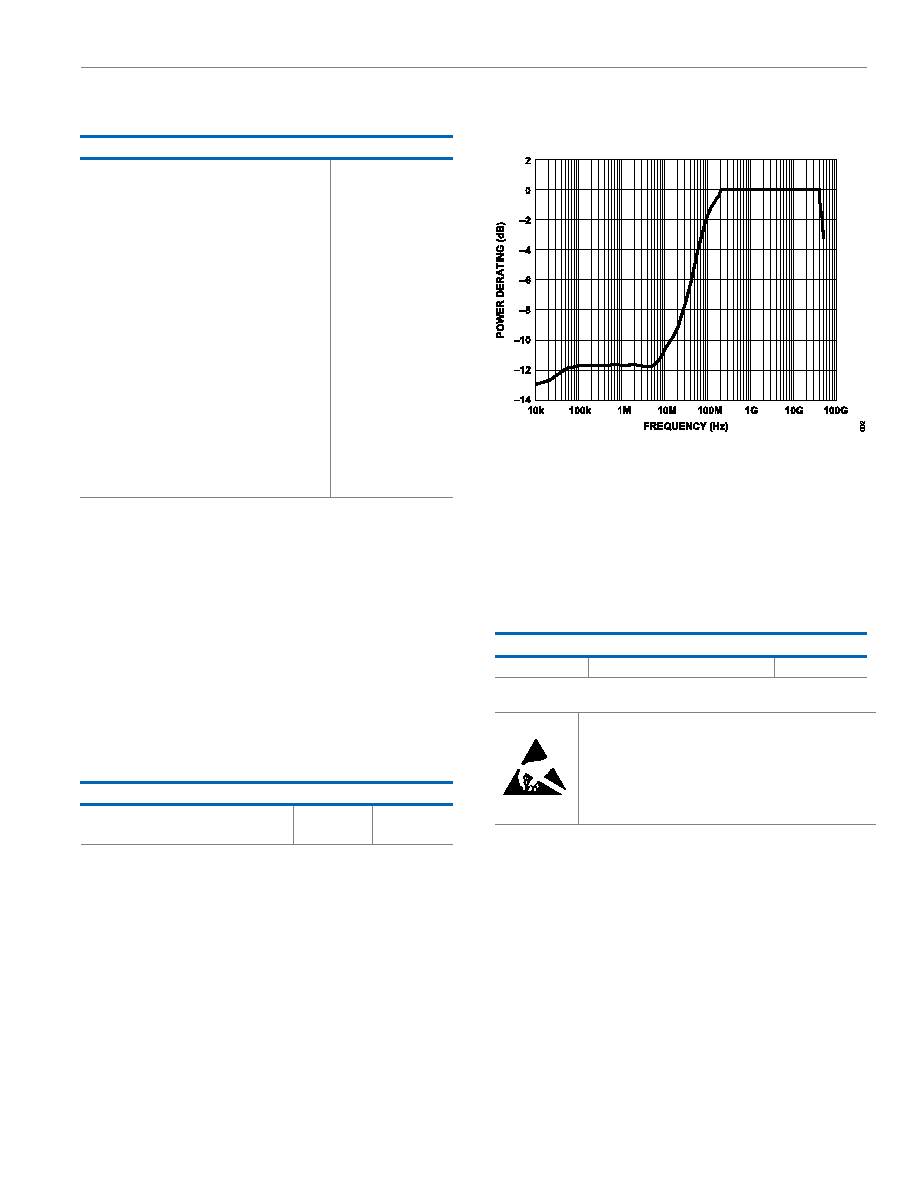

RF INPUT POWER DERATING CURVE

Figure 2. RF Input Power Derating Curve

ELECTROSTATIC DISCHARGE (ESD) RATINGS

The following ESD information is provided for handling of ESD-sen-

sitive devices in an ESD protected area only.

Human body model (HBM) per ANSI/ESDA/JEDEC JS-001.

ESD Ratings for ADL8113

Table 10. ADL8113, 28-Terminal LGA

ESD Model

Withstand Threshold (V)

Class

HBM

±250

ESD CAUTION

ESD (electrostatic discharge) sensitive device. Charged devi-

ces and circuit boards can discharge without detection. Although

this product features patented or proprietary protection circuitry,

damage may occur on devices subjected to high energy ESD.

Therefore, proper ESD precautions should be taken to avoid

performance degradation or loss of functionality.
