CY8CKIT-059 PSoC® 5LP Prototyping Kit Guide, Doc. #: 001-96498 Rev. *G

Hardware

4.2.5.3

Functionality of J8 and J9 Headers (KitProg)

The KitProg board contains two dual-inline headers (J8 and J9). These headers are both 1x7-pin-

headers, used to pull out several pins of PSoC 5LP to support advanced features like a low-speed

oscilloscope and a low-speed digital logic analyzer. This header also contains the KitProg bridge

pins that can be used when the two boards are separated.

The J8 and J9 headers support 100-mil spacing, so you can solder connectors to connect the

KitProg board to any development breadboard.

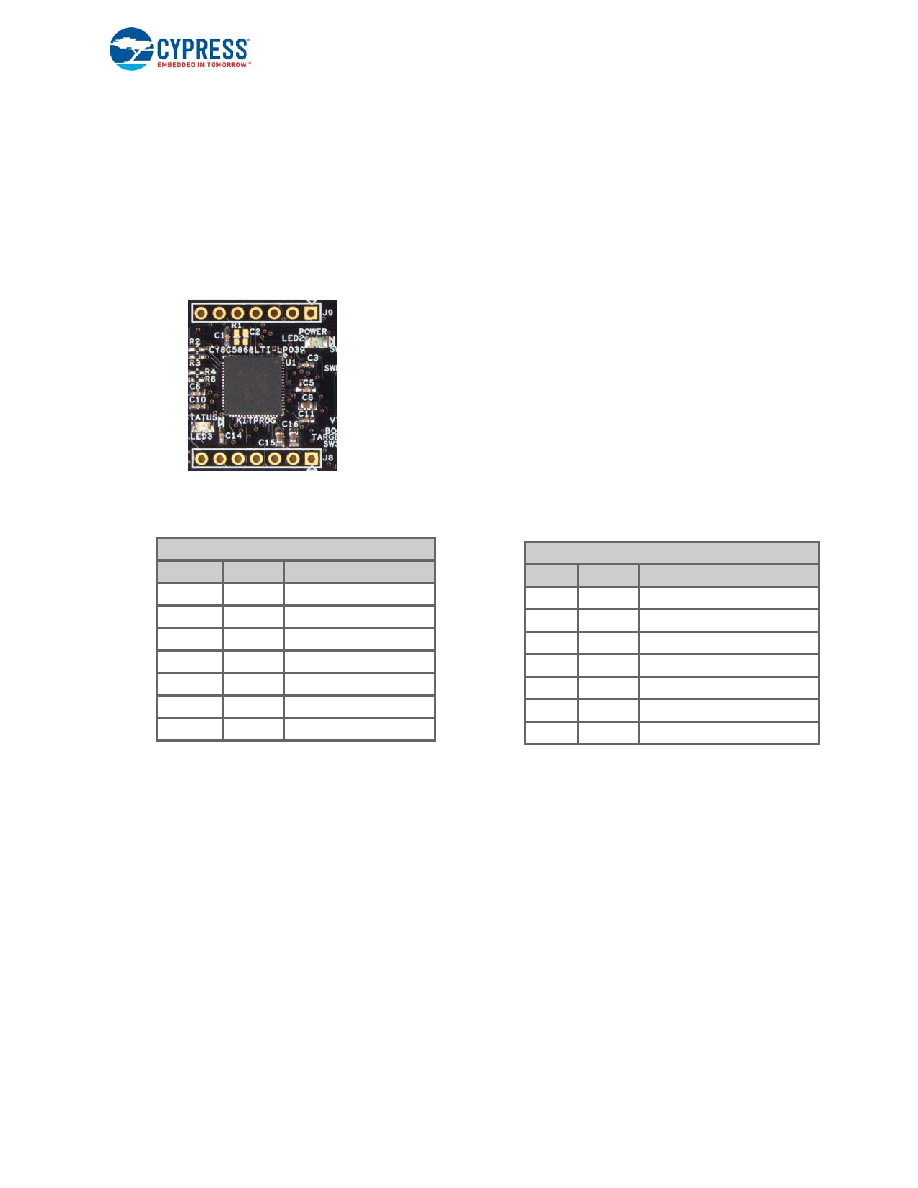

Figure 4-7. J8 and J9 Headers

Table 4-5. Pin Details of J9

Table 4-6. Pin Details of J8

KitProg GPIO Header (J9)

Signal

Description

J9_01

VBUS

Power

J9_02

GND

Ground

J9_03

P12.5

GPIO

J9_04

P12.0

GPIO/I2C_SCL

J9_05

P12.1

GPIO/I2C_SDA

J9_06

P12.6

GPIO/UART_RX

J9_07

P12.7

GPIO/UART_TX

KitProg GPIO Header (J8)

Signal

Description

J8_01

GND

Ground

J8_02

P3.0

GPIO

J8_03

P3.4

GPIO

J8_04

P3.5

GPIO

J8_05

P3.6

GPIO

J8_06

P0.0

GPIO

J8_07

P0.1

GPIO
