CY8CKIT-059 PSoC® 5LP Prototyping Kit Guide, Doc. #: 001-96498 Rev. *G

Software Installation

3. Click Install CY8CKIT-059 Kit to start the kit installation, as shown in Figure 2-1.

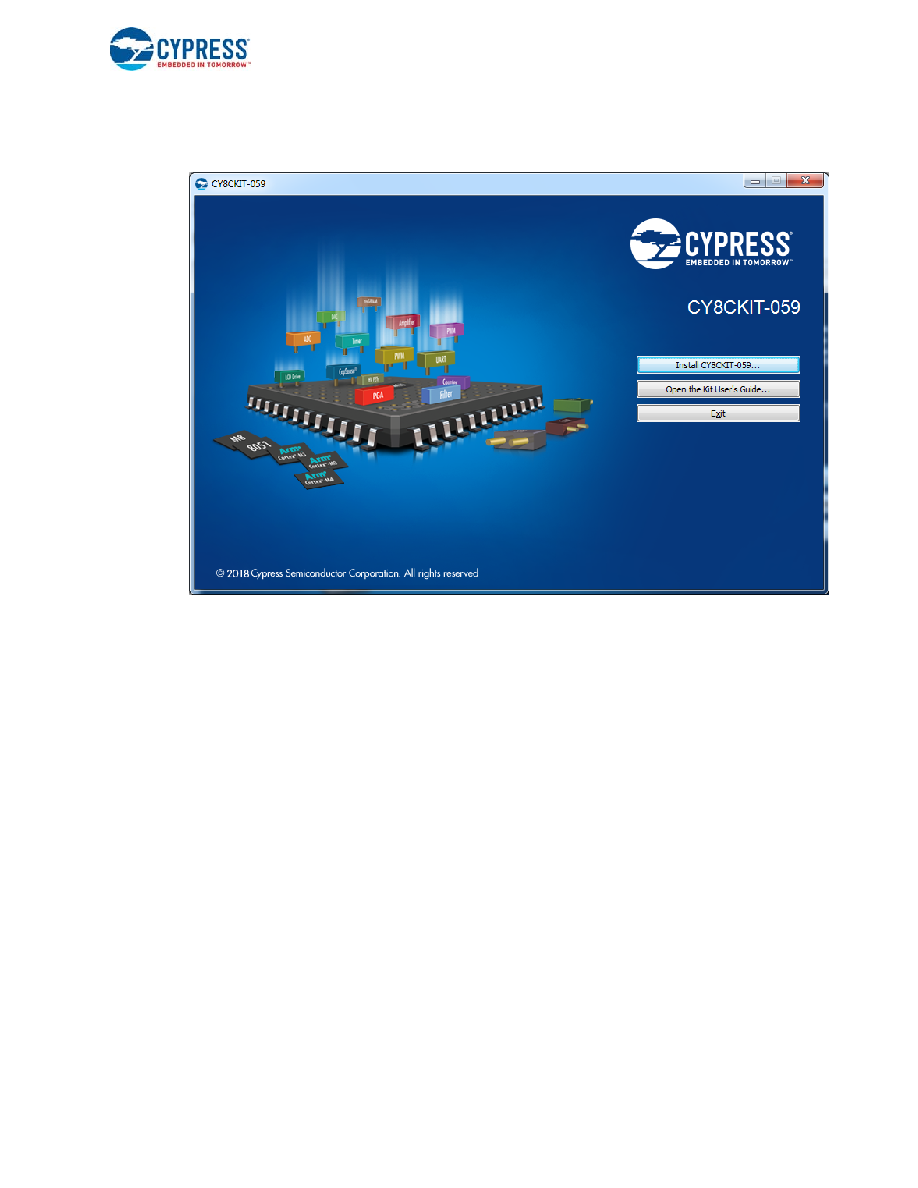

Figure 2-1. Kit Installer Screen

4. Select the directory in which you want to install the PSoC 5LP Prototyping Kit-related files.

Choose the directory and click Next.

5. When you click Next, the PSoC 5LP Prototyping Kit installer automatically installs the required

software, if it is not present on your computer. Following is the required software:

a. PSoC Creator 4.2: This software is available for download separately from the kit at

www.cypress.com/psoccreator. PSoC Creator 4.2 installer automatically installs the following

additional software:

– PSoC Programmer 3.27.1

– Peripheral Driver Library 3.0.1.

6. Choose the Typical/Custom/Complete installation type in the Product Installation Overview

window, as shown in Figure 2-2. Click Next after you select the installation type.
