CY8CKIT-059 PSoC® 5LP Prototyping Kit Guide, Doc. #: 001-96498 Rev. *G

Code Examples

5.3

CE195277_ADC_and_UART

This code example implements a simple data collection system using the DelSig ADC and the UART

component. The ADC continuously samples an analog input. The resulting samples can be sent to a

PC over a UART connection a single sample at a time or continuously. Emulated data, which is just

an incrementing number, can also be sent over the UART connection to test the communication. The

USB-UART Bridge in the KitProg is used to create an RS-232 connection to a terminal program on a

PC. The terminal program is used to send commands to get the ADC sample data and read the

resulting responses.

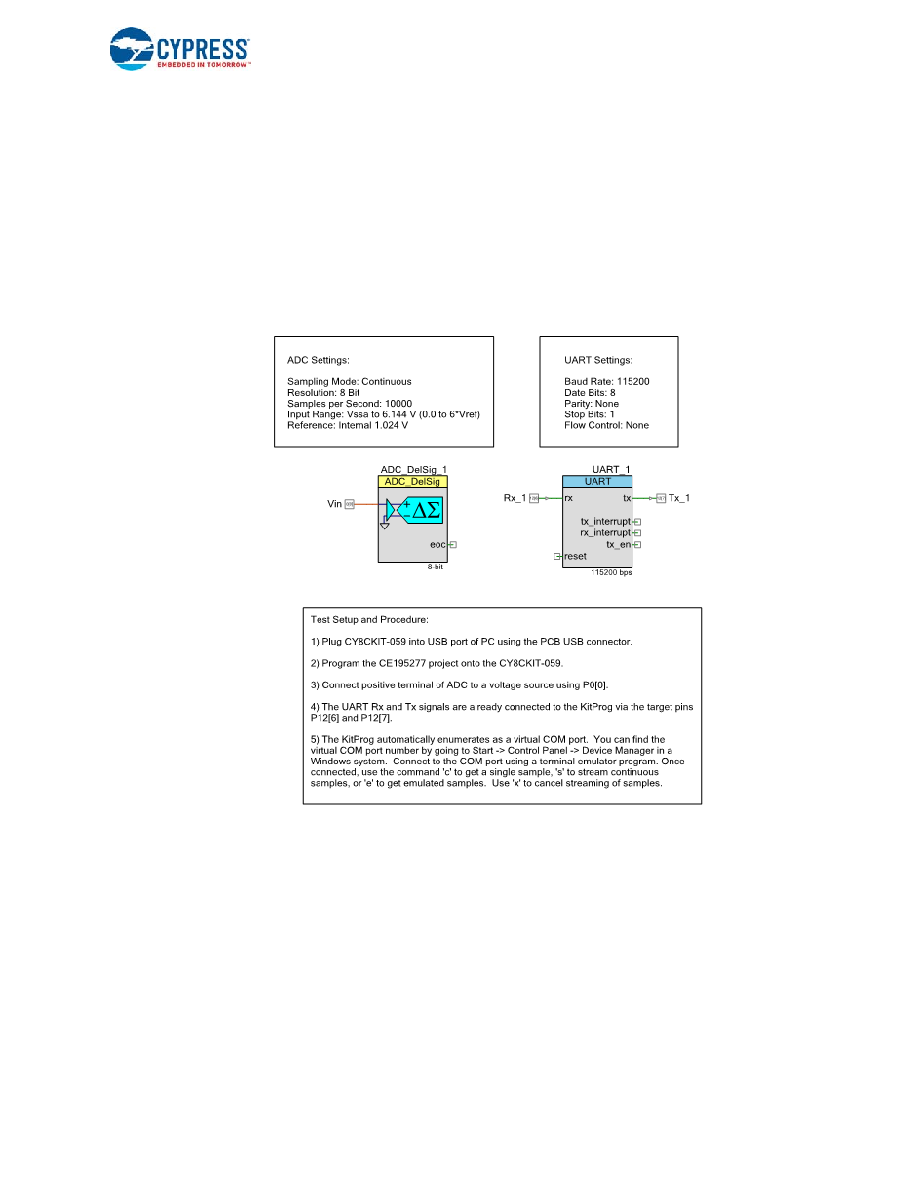

Figure 5-9. TopDesign CE195277_ADC_and_UART

For detailed operation, refer to the CE195277_ADC_and_UART.pdf from PSoC Creator.
