CY8CKIT-059 PSoC® 5LP Prototyping Kit Guide, Doc. #: 001-96498 Rev. *G

Introduction

1.2.4

Component Datasheets

Right-click a Component and select Open Datasheet (see Figure 1-5).

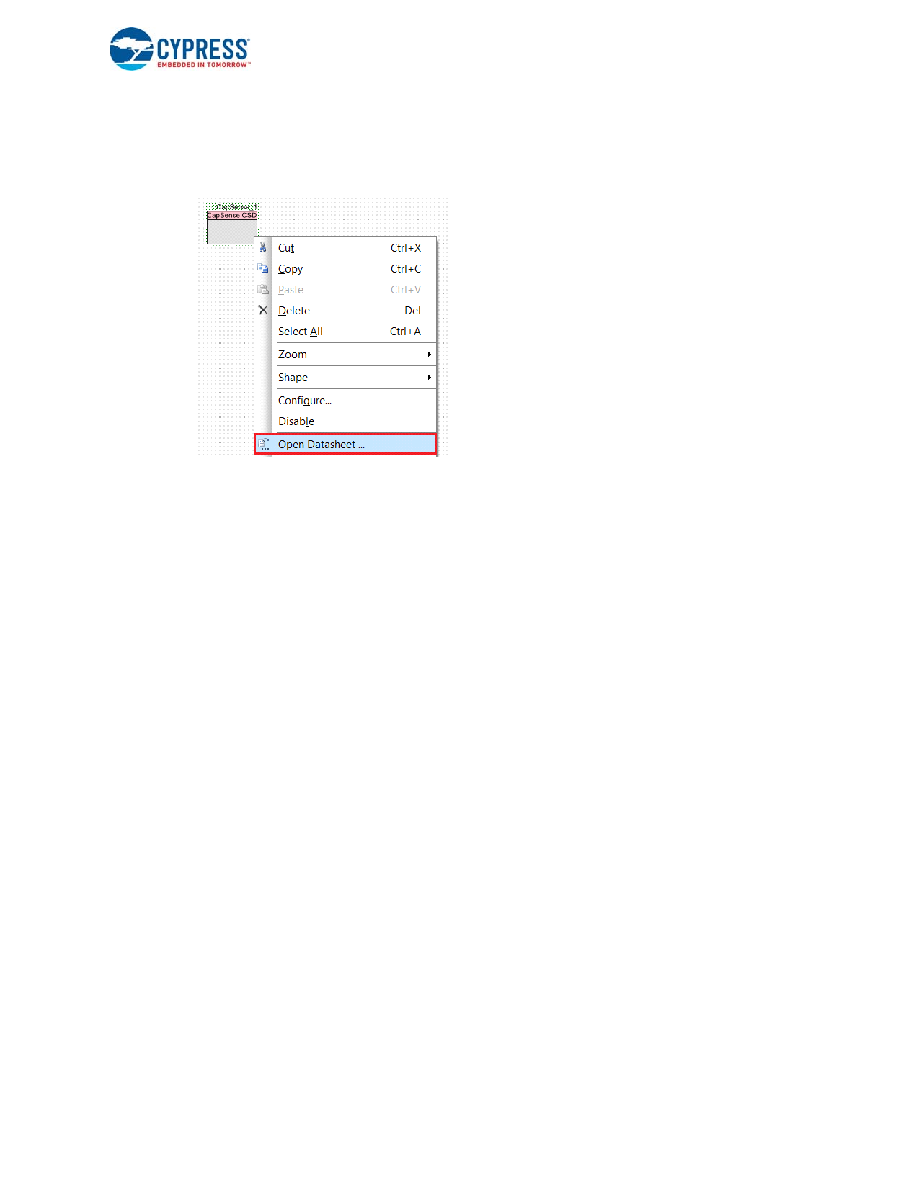

Figure 1-5. Opening Component Datasheet

1.3

Getting Started

This guide will help you get acquainted with the PSoC 5LP Prototyping Kit:

■

The Software Installation chapter on page 13 describes the installation of the kit software. This

includes installation of PSoC Creator IDE for development and debugging the applications, and

PSoC Programmer for programming hex files.

■

The Kit Operation chapter on page 16 describes the major features of the PSoC 5LP Pioneer Kit

and functionalities such as programming, debugging, and the USB-UART and USB-I2C bridges.

■

The Hardware chapter on page 20 details the hardware content of the kit and the hardware

operation.

■

The Code Examples chapter on page 31 describes multiple PSoC 5LP code examples that will

help you understand how to create your own PSoC 5LP projects.

■

The Appendix on page 39 provides schematics, details about programming the kit using

MiniProg3, and the bill of materials (BOM).

1.4

Additional Learning Resources

Cypress provides a wealth of information at www.cypress.com to help you to select the right PSoC

device for your design, and to help you to quickly and effectively integrate the device into your

design. For a comprehensive list of resources, see KBA86521, How to Design with PSoC 3, PSoC 4,

and PSoC 5LP. The following is an abbreviated list for PSoC 5LP:

■

Overview: PSoC Portfolio, PSoC Roadmap

■

Product Selectors: PSoC 1, PSoC 3, PSoC 4, or PSoC 5LP. In addition, PSoC Creator includes a

device selection tool.

■

Datasheets: Describe and provide electrical specifications for the PSoC 5LP device family

■

CapSense Design Guide: Learn how to design capacitive touch-sensing applications with the

PSoC 5LP family of devices.

■

Application Notes and Code Examples: Cover a broad range of topics, from basic to advanced

level. Many of the application notes include code examples. Visit the PSoC 3/4/5 Code Examples
