CC1150

SWRS037B – JANUARY 2006 – REVISED MARCH 2015

www.ti.com

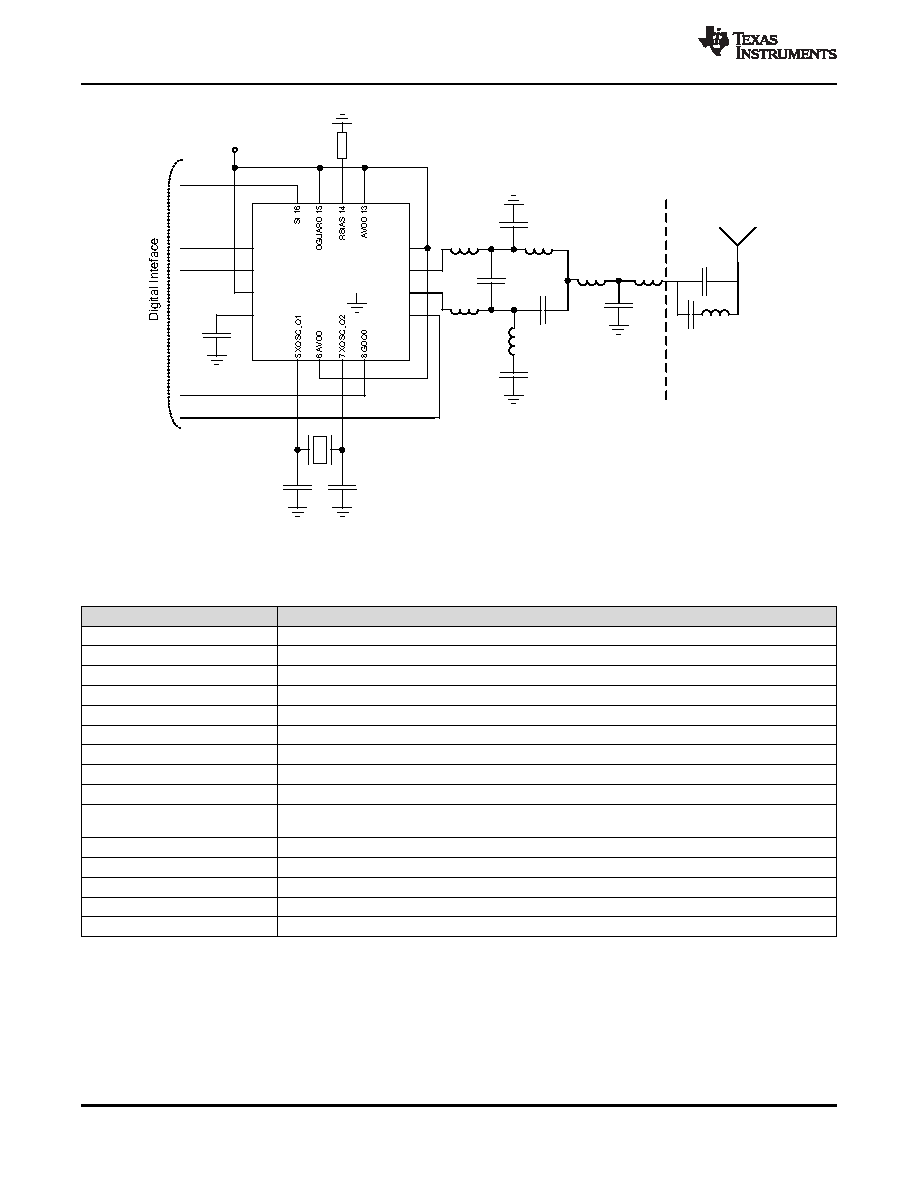

Figure 6-2. Typical Application and Evaluation Circuit 868/915 MHz

(Excluding Supply Decoupling Capacitors)

Table 6-1. Overview of External Components (Excluding Supply Decoupling Capacitors)

COMPONENT

DESCRIPTION

C41

Decoupling capacitor for on-chip voltage regulator to digital part

C51/C71

Crystal loading capacitors

C101/C111

RF balun/matching capacitors

C102

RF LC filter/matching filter capacitor (315 and 433 MHz). RF balun/matching capacitor (868/915 MHz).

C103

RF LC filter/matching capacitors

C104

RF balun DC blocking capacitor

C105

RF LC filter DC blocking capacitor and part of optional RF LC filter (868/915 MHz)

C106

Part of optional RF LC filter and DC Block (868/915 MHz)

L101/L111

RF balun/matching inductors (inexpensive multi-layer type)

RF LC filter/matching filter inductor (315 and 433 MHz). RF balun/matching inductor (868/915 MHz)

L102

(inexpensive multi-layer type)

L103

RF LC filter/matching inductor (inexpensive multi-layer type)

L104

RF LC filter/matching inductor (inexpensive multi-layer type)

L105

Part of optional RF LC filter (868/915 MHz)(inexpensive multi-layer type)

R141

Resistor for internal bias current reference

XTAL

26 to 27 MHz crystal
