e.g 6

PA_POWER[2:0]

in FREND0 register

PATABLE(0)[7:0]

PATABLE(1)[7:0]

PATABLE(2)[7:0]

PATABLE(3)[7:0]

PATABLE(4)[7:0]

PATABLE(5)[7:0]

PATABLE(6)[7:0]

PATABLE(7)[7:0]

Index into PATABLE(7:0)

The PA uses this

setting.

Settings 0 to PA_POWER are

used during ramp-up at start of

transmission and ramp-down at

end of transmission, and for

ASK/OOK modulation.

The SmartRF

Studio software

should be used to obtain optimum

PATABLE settings for various

output powers.

CC1150

SWRS037B – JANUARY 2006 – REVISED MARCH 2015

www.ti.com

5.15 Voltage Regulators

CC1150 contains several on-chip linear voltage regulators, which generate the supply voltage needed by

low-voltage modules. These voltage regulators are invisible to the user, and can be viewed as integral

parts of the various modules. The user must however make sure that the absolute maximum ratings and

required pin voltages in Section 4.1 and Table 3-1 are not exceeded.

Setting the CSn pin low turns on the voltage regulator to the digital core and start the crystal oscillator.

The SO pin on the SPI interface must go low before the first positive edge on the SCLK (setup time is s

given in Table 5-1).

If the chip is programmed to enter power-down mode (SPWD strobe issued), the power will be turned off

after CSn goes high. The power and crystal oscillator will be turned on again when CSn goes low.

The voltage regulator for the digital core requires one external decoupling capacitor. The voltage regulator

output should only be used for driving the CC1150.

5.16 Output Power Programming

The RF output power level from the device has two levels of programmability, as illustrated in Figure 5-16.

Firstly, the special PATABLE register can hold up to eight user selected output power settings. Secondly,

the 3-bit FREND0.PA_POWER value selects the PATABLE entry to use. This two-level functionality

provides flexible PA power ramp up and ramp down at the start and end of transmission, as well as ASK

modulation shaping. In each case, all the PA power settings in the PATABLE from index 0 up to the

FREND0.PA_POWER value are used.

The power ramping at the start and at the end of a packet can be turned off by setting

FREND0.PA_POWER to zero and then programming the desired output power to index 0 in the

PATABLE.

If OOK modulation is used, the logic 0 and logic 1 power levels shall be programmed to index 0 and 1

respectively.

Table 5-8 contains recommended PATABLE settings for various output levels and frequency bands.

DN012 [3] gives complete tables for the different frequency bands. Using PA settings from 0x61 to 0x6F is

not recommended. Table 5-9 contains output power and current consumption for default PATABLE setting

(0xC6).

PATABLE must be programmed in burst mode if you want to write to other entries than PATABLE[0]. See

Section 5.5.6 for PATABLE programming details.

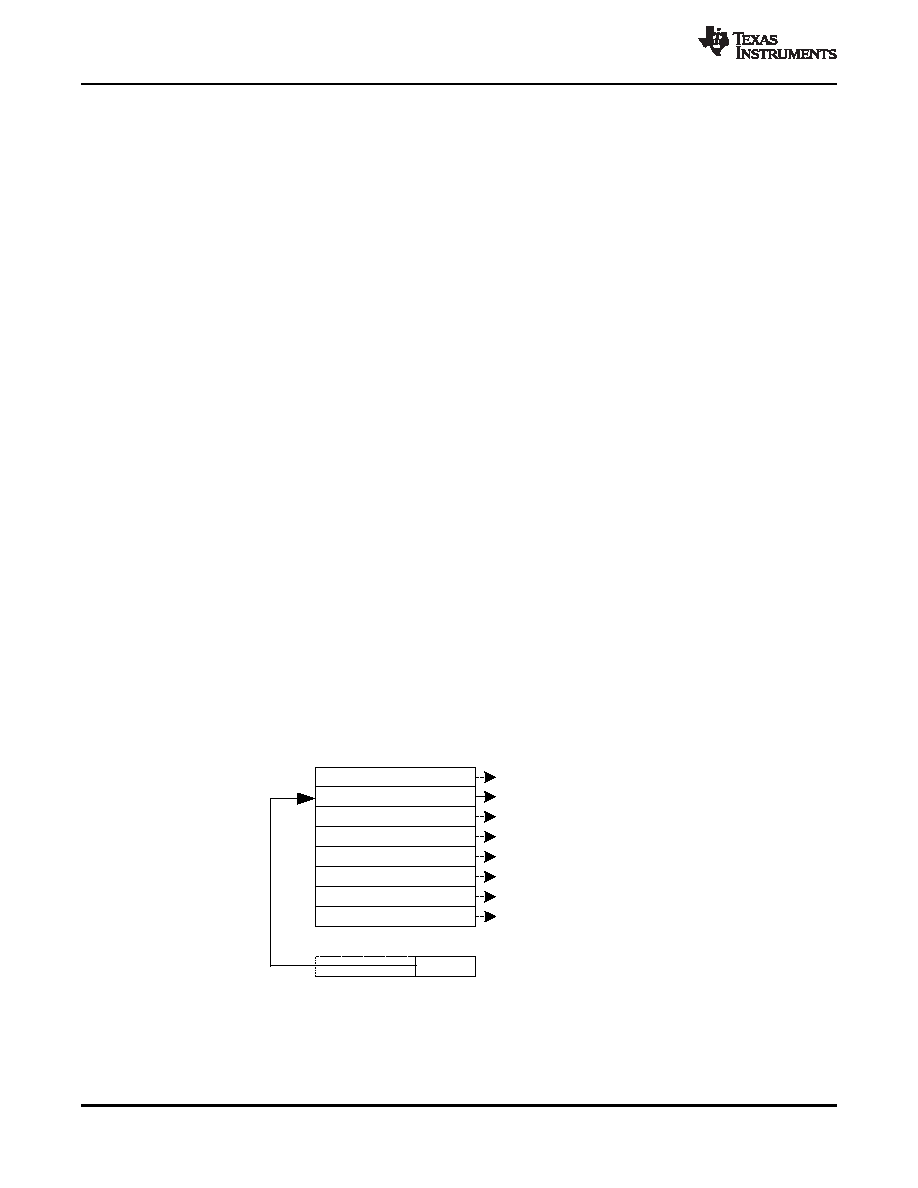

Figure 5-16. PA_POWER and PATABLE

Detailed Description
