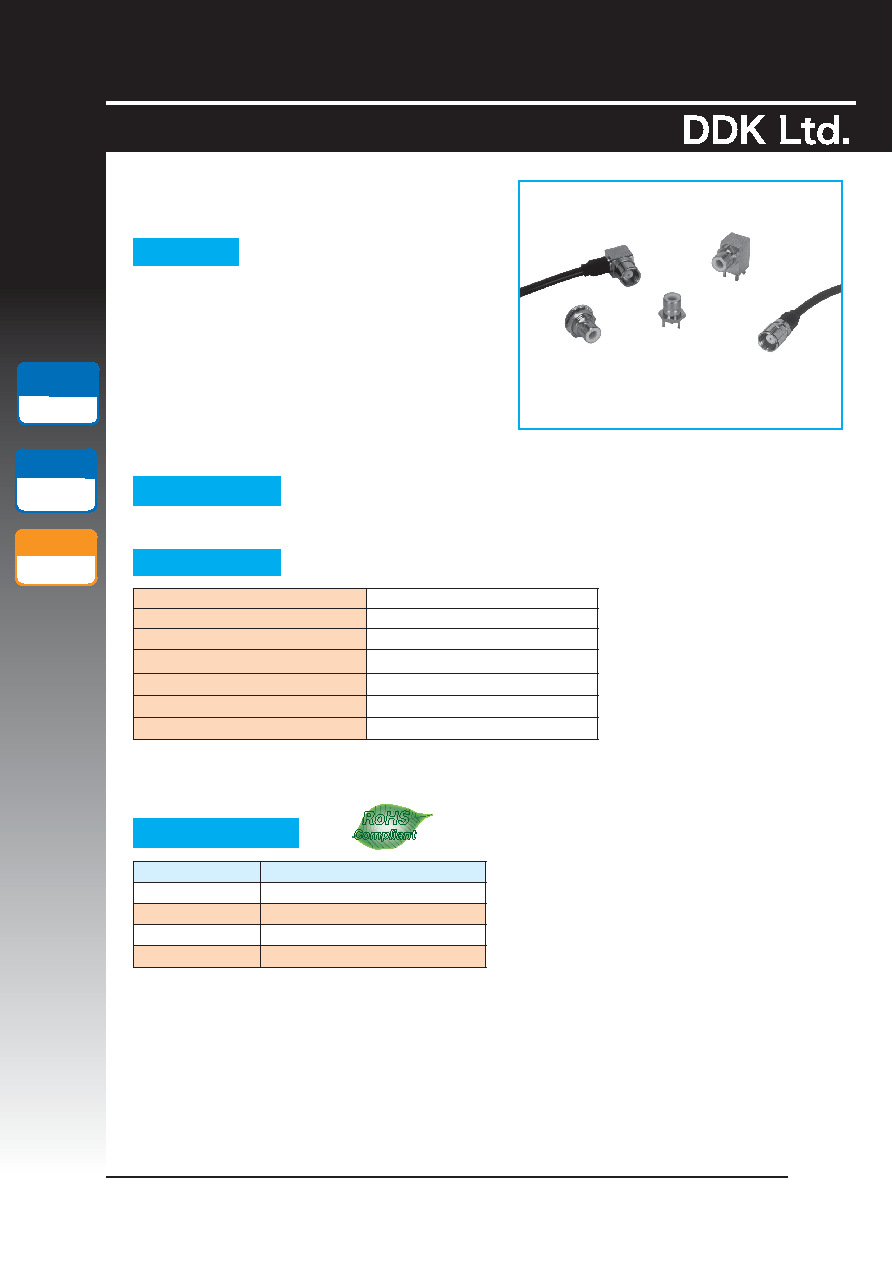

27CP Series

75 Ω SMB Style Coaxial Connector

121226

Measurement equipments, Broadcasting, CATV, HDTV

APPLICATIONS

RoHS

Compliant

RoHS

Compliant

Item

Material / Finish

Shell (Body)

Copper Alloy / Ni or Au Plating

Contact (Male)

Copper Alloy / Au Plating

Contact (Female) Copper Alloy / Au Plating

Insulator

PTFE

Characteristic Impedance

　75 Ω

Rated Voltage

500VAC(r.m.s.)

Dielectric Withstanding Voltage 1000V AC(r.m.s.)for1 minute

Insulation Resistance

1000M Ω Mim. at 500V DC

Contact Resistance

6m Ω Max.

V.S.W.R.

1.5 max. at DC to 500MHz

Operating Temperature

-40 〜 +85℃

SPECIFICATIONS

＊ The specifications are typical but may not apply to all connectors. Please check 　

the specifications on each item with its drawing from us when you use.

MATERIAL/FINISH

・27CP series is a SMB connector which

corresponding to 75 Ω .

・Low profile coaxial connector with push on lock

mechanism. It is suitable to the applications of

internal equipments.

・Push-on locking mechanism provides quick and

reliable connection.

・Incompatible to 27DPseries(50 Ω SMB connector)

FEATURE

Frequency

Range

DC to 500MHz

75 Ω

Lock Type

Push On

Characteristic

Impedance
