27CP Series

5

◎ Please acknowledge that the specification etc. of this catalog might change by the improvement etc. without notice.

　Moreover, the characteristic and the specification of the published product are the reference values.

　Please confirm the content with the latest delivery specifications when you use the product.

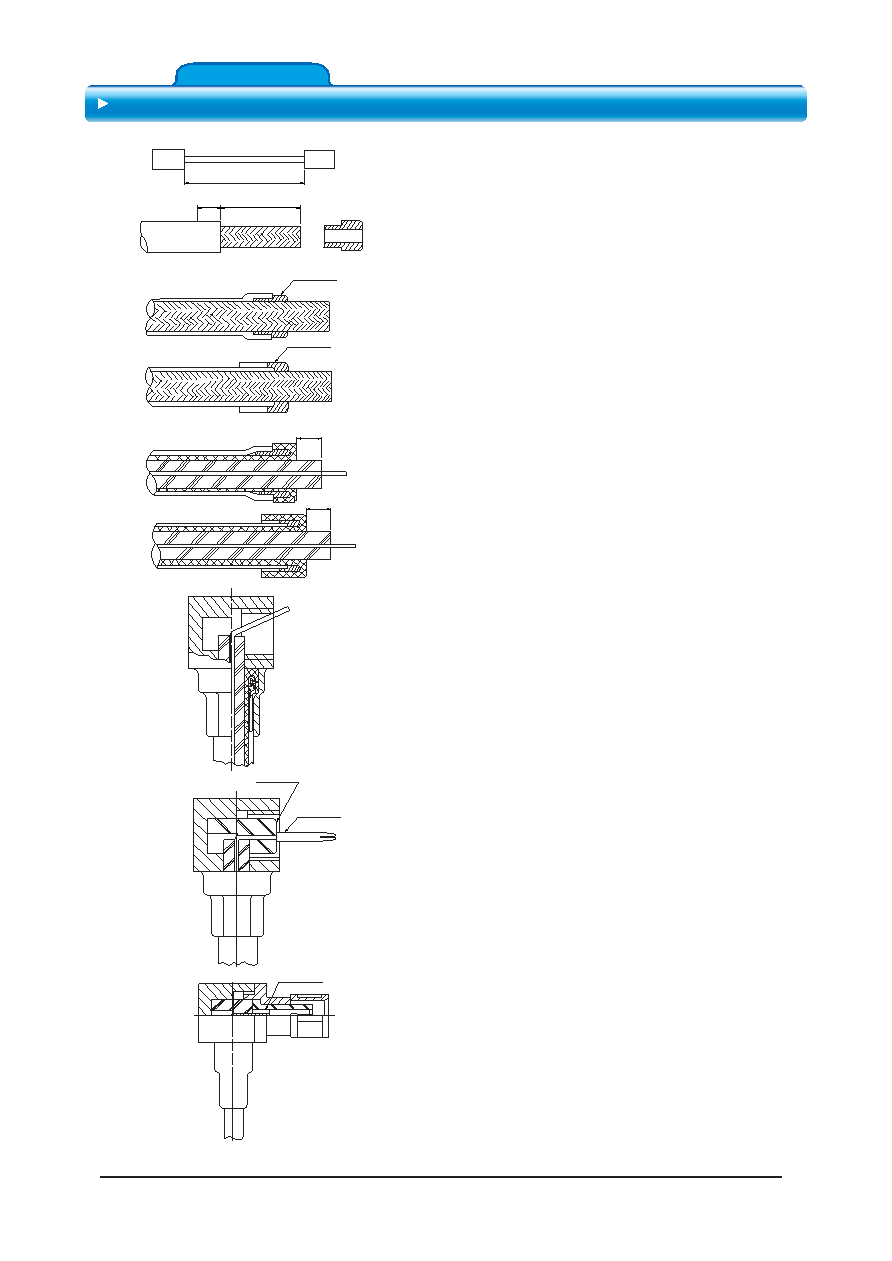

○Assembly Instruction（2）

L1

15.0

3

Ferule

Ferule

2.8

2.8

Soldering

Rear Insulator

Front Insulator

①

②

③

④

⑤

⑥

① Cut the cable as fig.1.

The cable length require for the cable assembly

L=L1+15+3

② Insert the ferule between outer conductor and

sheath when the cable is 2.5C-2V.

Insert the ferule until ferule contacts with the

sheath when the cable is 1.5C-2V.

center conductor into the body as fig.4.

Crimp the root of the body.

⑤ Insert the rear insulator into the center

conductor.

Cut the center conductor in 1.6mm and pre-

soldering.

Insert the contact and solder.

⑥ Insert the front insulator into the contact and

twist in the interface.

Cover the heat-shrinkable tube and heat up.

③ Pick the outer conductor and turn down to the

ferule. Cut the extra outer conductor along the

ferule. Cut the center conductor as fig.3.

Please be careful to not damage the center

conductor. Pre-solder the center conductor.
