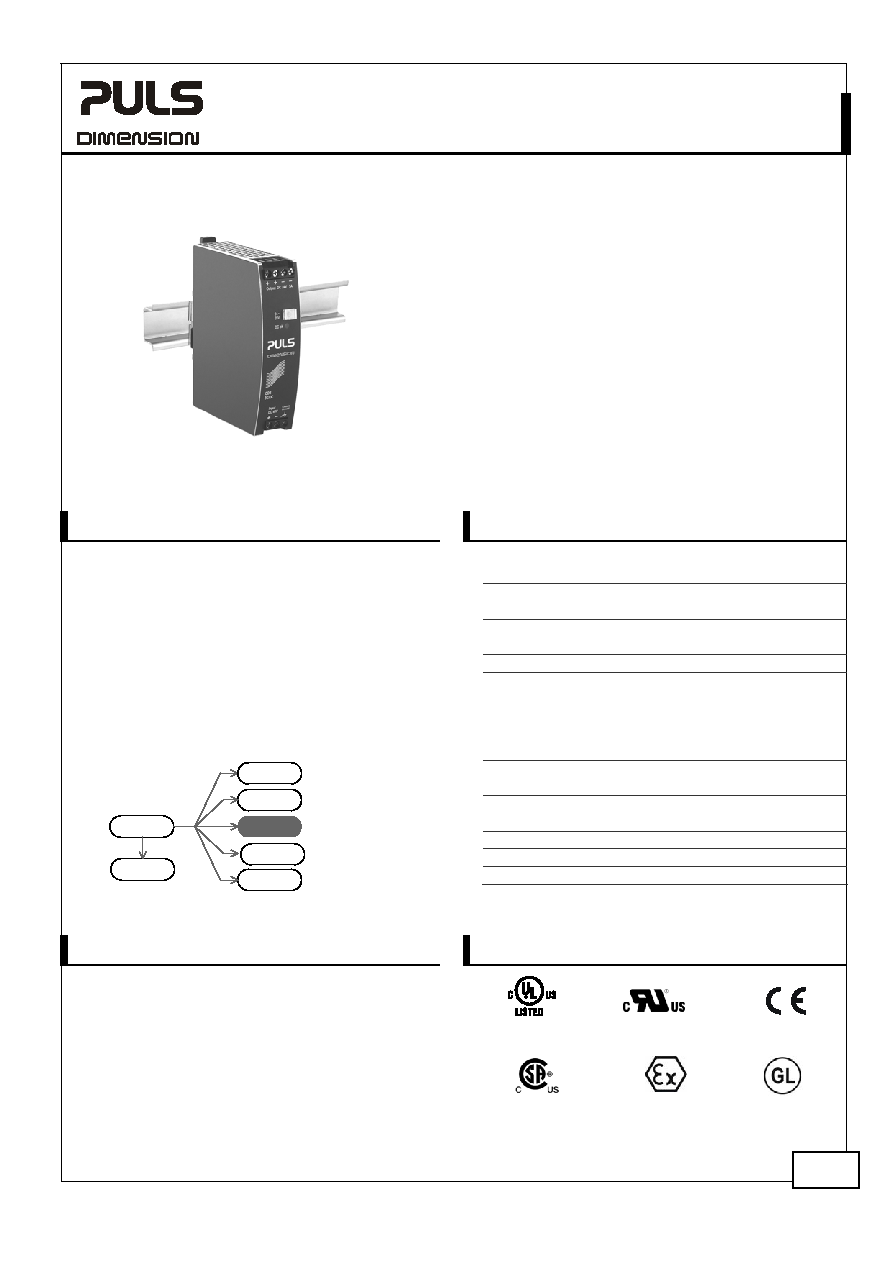

CD5.242

CD-Series

DC/DC Converter 24V, 5A

48V DC-Input

Isolated 24Vdc Output

Efficiency up to 90.3%

Width only 32mm

20% Output Power Reserves

Full Power Between -25°C and +60°C

Soft-start Function Included

Minimal Inrush Current Surge

Reverse Input Polarity Protection

3 Year Warranty

1/22

The Dimension CD-Series offer DIN-rail DC/DC converters

in the 92-120W output power range in a very compact

housing. These DC/DC converters are allowed to run

with a battery or similar sources.

The CD5.242 converts a 48V voltage to a 24V voltage.

The CD5.242 includes all the essential basic functions

and has a power reserve of 20% included. This extra

power can be used continuously up to +45°C.

The output is electrically isolated from the input in a

safe way. The input is protected against reversed

voltages and contains a soft start function.

CD5.241

CD5.242

CD5.243

Output voltage

DC 24V

Adjustment range

24 - 28V

Output current

5 – 4.3A

ambient <60°C

6 – 5.2A

ambient <45°C

Output power

120W

ambient <60°C

144W

ambient <45°C

Output ripple

< 50mVpp

20Hz to 20MHz

Input voltage

DC 48V

Input voltage range

36 to 60Vdc

full specified

30.5 to 36Vdc

with derating

Input current

typ. 2.75A

at 48Vdc input

Input inrush current

typ. 0.6A peak

Efficiency

90.3%

at 48Vdc input

Losses

12.9W

at 48Vdc input

Temperature range -25°C to +70°C

operational

Derating

3W/°C

+60 to +70°C

Hold-up time

typ. 5.6ms

at 48Vdc input

Dimensions

32x124x102mm

WxHxD

Weight

425g / 0.94lb

CD5.241-S1

24V->24V,

Spring-clamp-terminals,

Input-low, DC-OK signals

CD-Series

Related products

24V->24V

48V->24V

12V->24V

CD5.241-L1

24V->24V, NEC Class 2,

Spring-clamp-terminals,

CD5.121

24V->12V

SLD2.100

24V->5V

*) extended guaranteed adjustment range down to 23V.

DC/DC Converter

CD5.242

Standard unit

Accessory

ZM1.WALL

Wall mount bracket

ZM11.SIDE

Side mount bracket

YRM2.DIODE Redundancy module

Ind. Cont. Eq.

UL 508

UL 60950-1

EMC, ATEX

Class I Div 2

IECEx

ATEX

II 3G Ex nA nC II T4 Gc

Marine

Mar. 2016 / Rev. 1.5 DS-CD5.242-EN

All parameters are specified at 24V, 5A, 48Vdc input voltage, 25°C ambient and after a 5 minutes run-in time unless otherwise noted.
