T89C5115-RATIM Folha de dados(PDF) 8 Page - ATMEL Corporation

Nome de Peças T89C5115-RATIM
Descrição Electrónicos  Low Pin Count 8-bit MCU with A/D Converter and 16-Kbytes of Flash Memory
PDF  105 Pages
Scroll/Zoom Zoom In 100%  Zoom Out
Fabricante Electrônico  ATMEL [ATMEL Corporation]
Página de início  http://www.atmel.com
Logo ATMEL - ATMEL Corporation

T89C5115-RATIM Folha de dados(HTML) 8 Page - ATMEL Corporation

Back Button T89C5115-RATIM Datasheet HTML 4Page - ATMEL Corporation T89C5115-RATIM Datasheet HTML 5Page - ATMEL Corporation T89C5115-RATIM Datasheet HTML 6Page - ATMEL Corporation T89C5115-RATIM Datasheet HTML 7Page - ATMEL Corporation T89C5115-RATIM Datasheet HTML 8Page - ATMEL Corporation T89C5115-RATIM Datasheet HTML 9Page - ATMEL Corporation T89C5115-RATIM Datasheet HTML 10Page - ATMEL Corporation T89C5115-RATIM Datasheet HTML 11Page - ATMEL Corporation T89C5115-RATIM Datasheet HTML 12Page - ATMEL Corporation Next Button
Zoom Inzoom in Zoom Outzoom out
 8 / 105 page
background image
8
T89C5115
4128A–8051–04/02
associated nFET is switched off. This is traditional CMOS switch convention. Current
strengths are 1/10 that of pFET #3

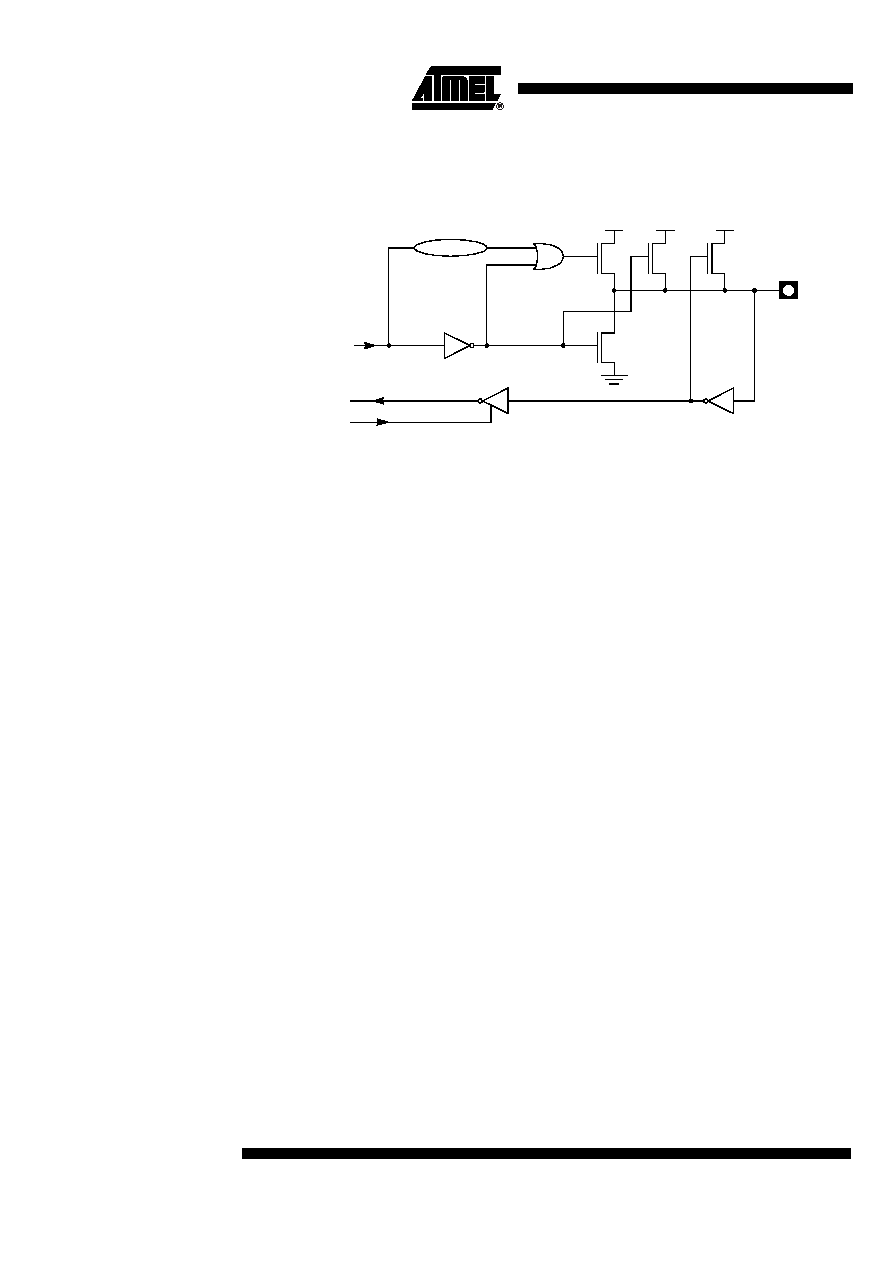

Figure 2. Internal Pull-Up Configurations
READ PIN
INPUT DATA
P1.x
OUTPUT DATA
2 Osc. PERIODS
n
p1(1)
p2
p3
VCC
VCC
VCC
P2.x
P3.x
P4.x
