A25LS512A Series

512Kbit Low Voltage, Serial Flash Memory

With 100MHz Uniform 4KB Sectors

(November, 2014, Version 1.1)

AMIC Technology Corp.

FEATURES

Family of Serial Flash Memories

- A25LS512A: 512K-bit /64K-byte

Flexible Sector Architecture with 4KB sectors

- Sector Erase (4K-bytes) in 0.2s (typical)

- Block Erase (64K-bytes) in 0.5s (typical)

Page Program (up to 256 Bytes) in 2ms (typical)

2.7 to 3.6V Single Supply Voltage

SPI Bus Compatible Serial Interface

100MHz Clock Rate (maximum)

Electronic Signatures

- JEDEC Standard Two-Byte Signature

A25LS512A (3010h)

- RES Instruction, One-Byte, Signature, for backward

compatibility

A25LS512A (05h)

Package options

- 8-pin SOP (150/209mil), 8-pin DIP (300mil), 8-pin TSSOP ,

8-pin USON (2*3mm) and 8-pin WSON (6*5mm)

- All Pb-free (Lead-free) products are RoHS2.0 compliant

GENERAL DESCRIPTION

The A25LS512A is 512K bit Serial Flash Memory, with

advanced write protection mechanisms, accessed by a high

speed SPI-compatible bus.

The memory can be programmed 1 to 256 bytes at a time,

using the Page Program instruction.

The memory is organized as one block, containing 16 sectors.

Each sector is composed of 16 pages. Each page is 256 bytes

wide. Thus, the whole memory can be viewed as consisting of

512 pages, or 65,536 bytes.

The whole memory can be erased using the Chip Erase

instruction, a block at a time, using Block Erase instruction, or a

sector at a time, using the Sector Erase instruction.

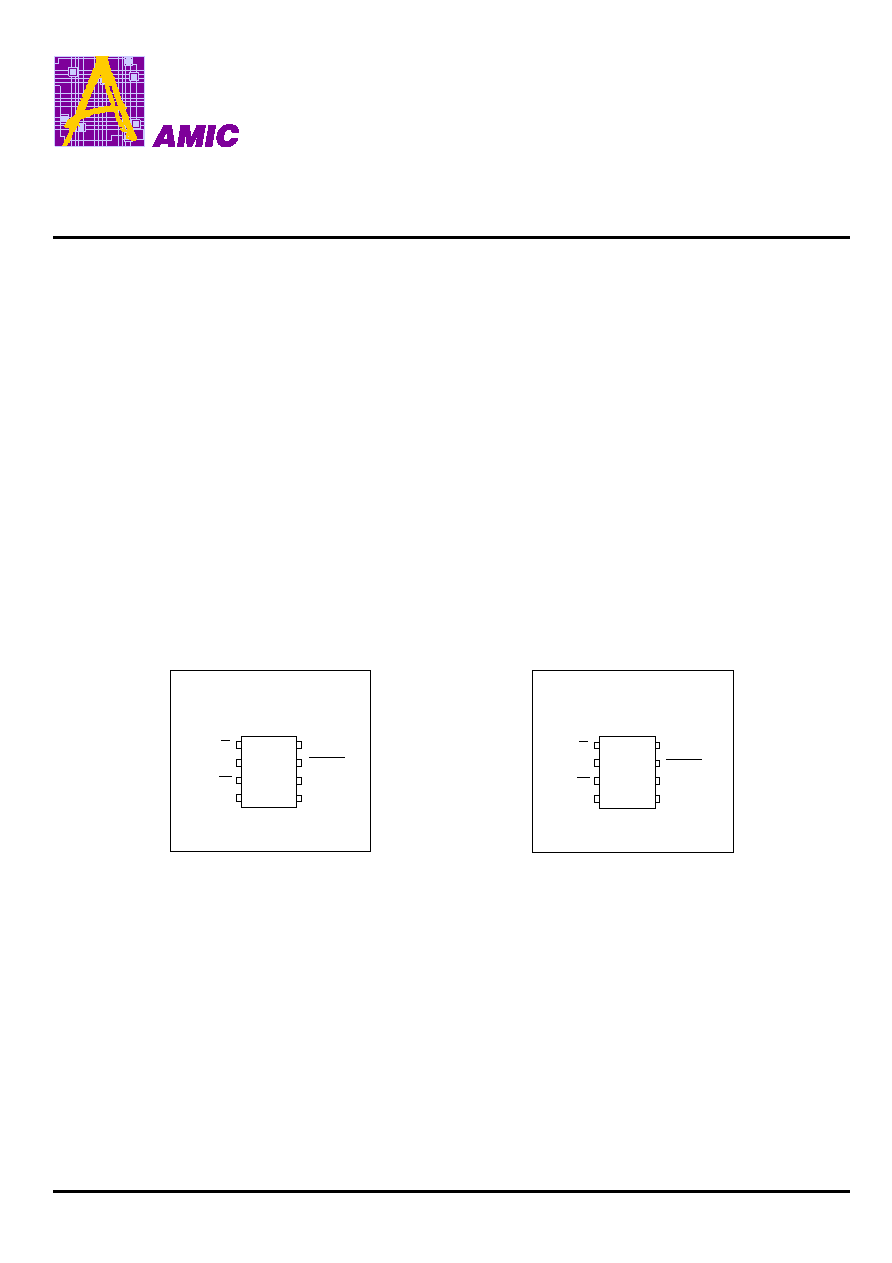

Pin Configurations

SOP8 Connections

DIP8 Connections

HOLD

A25LS512A

DIO

HOLD

DIO

A25LS512A
