LT3684
21
3684f

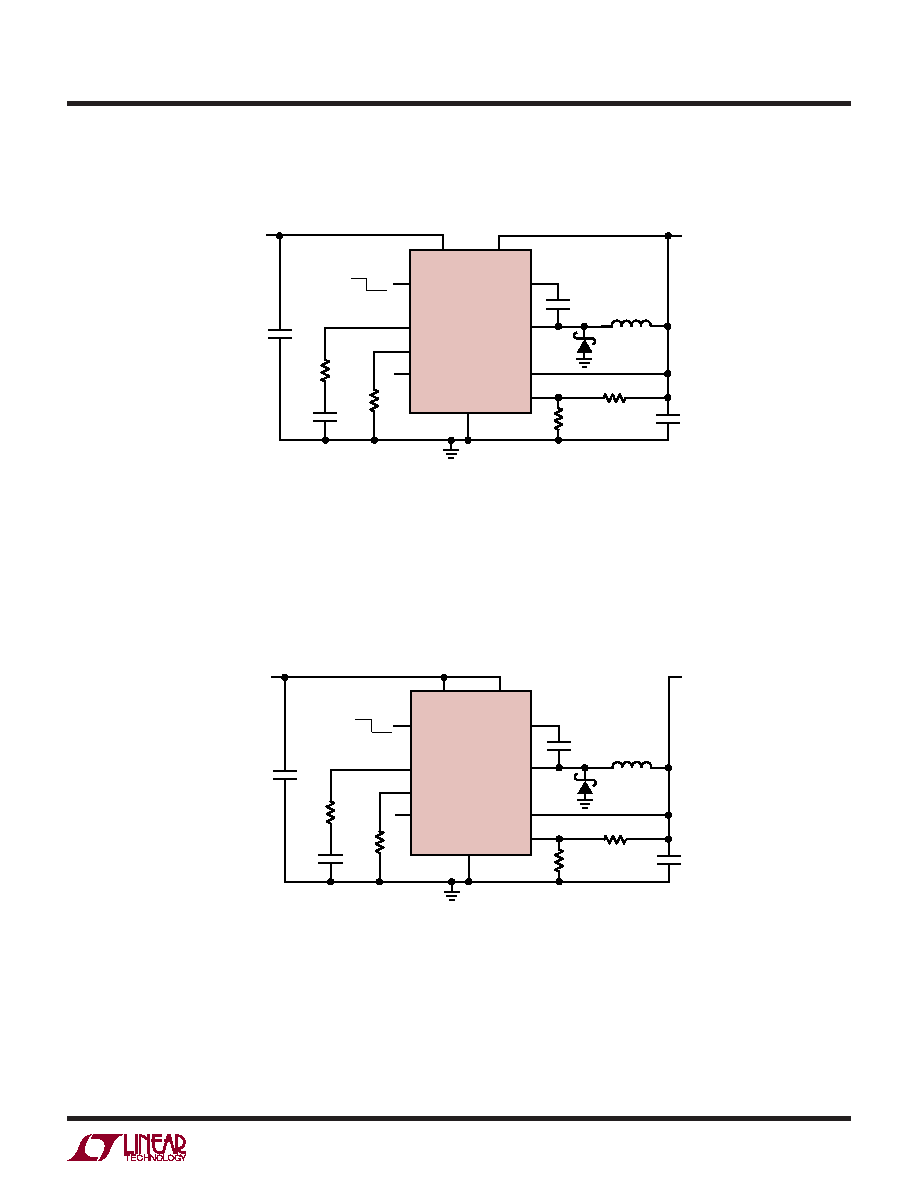

TYPICAL APPLICATIONS
1.8V Step-Down Converter
12V Step-Down Converter
SW
BIAS
FB
VC
PG
RT
VIN
BD
VIN
15V TO 34V
VOUT
12V
2A
10
µF
0.47
µF
22
µF
100k
f = 800kHz
D: DIODES INC. DFLS240L
L: NEC/TOKIN PLC-0755-100
D
30k
60.4k
L
10
µH
845k
GND
330pF
ON OFF
LT3684
3684 TA06
RUN/SS
BOOST
SW
BIAS
FB
VC
PG
RT
VIN
BD
VIN
3.5V TO 27V
VOUT
1.8V
2A
4.7
µF
0.47
µF
47
µF
200k
f = 500kHz
D: DIODES INC. DFLS240L
L: TAIYO YUDEN NP06DZB3R3M
D
15.4k
105k
L
3.3
µH
84.5k
GND
330pF
ON OFF
LT3684
3684 TA07
RUN/SS
BOOST
