E3X
E3X
33

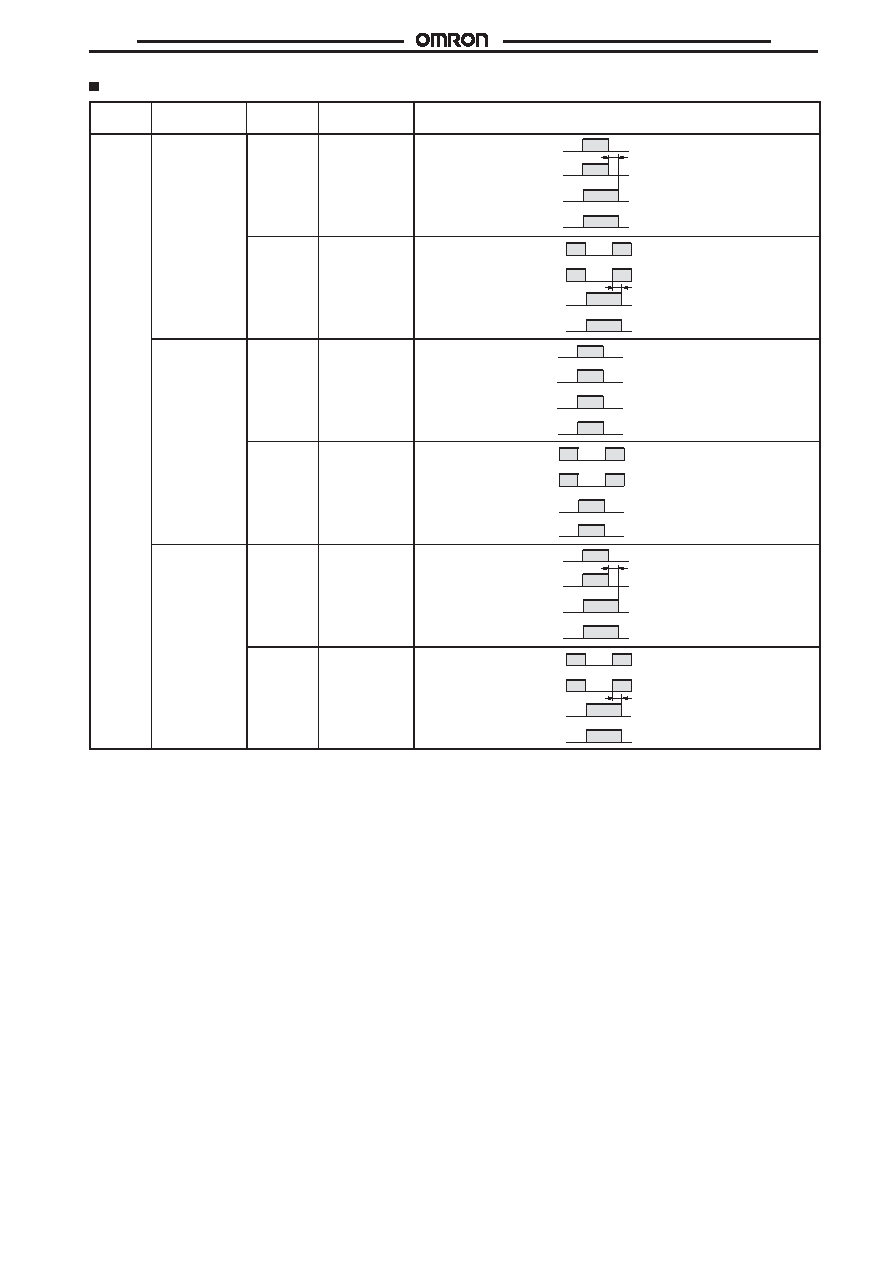

Timing Charts
Type
Model
Mode
switch
Output
transistor
Timing chart
NPN
E3X-T21
Light ON
ON when light
is received.
T
(Between brown and black)
Light indicator
(Red)
ON
OFF
Output
transistor
Load
(relay)
Operate
Release
ON
OFF
Light received
Light not received
Dark ON
ON when light
is not received.
T
(Between brown and black)
Light indicator
(Red)
ON
OFF
Output
transistor
Load
(relay)
Operate
Release
ON
OFF
Light received
Light not received
E3X-T11
E3X-H11
E3X-A11
E3X-VG11
Light ON
ON when light
is received.
Light indicator
(Red)
ON
OFF
Output
transistor
Load
(relay)
Operate
Release
ON
OFF
(Between brown and black)
Light received
Light not received
Dark ON
ON when light
is not received.
Light indicator
(Red)
ON
OFF
Output
transistor
Load
(relay)
Operate
Release
ON
OFF
Light received
Light not received
(Between brown and black)
E3X-A21
E3X-VG21
E3X-F21
Light ON
ON when light
is received.
T
Light indicator
(Red)
ON
OFF
Output
transistor
Load
(relay)
Operate
Release
ON
OFF
Light received
Light not received
(Between brown and black)
Dark ON
ON when light
is not received.
T
Light indicator
(Red)
ON
OFF
Output
transistor
Load
(relay)
Operate
Release
ON
OFF
Light received
Light not received
(Between brown and black)
