Data Sheet
ADA4870
TYPICAL PERFORMANCE CHARACTERISTICS
analog.com
Rev. B | 16 of 24

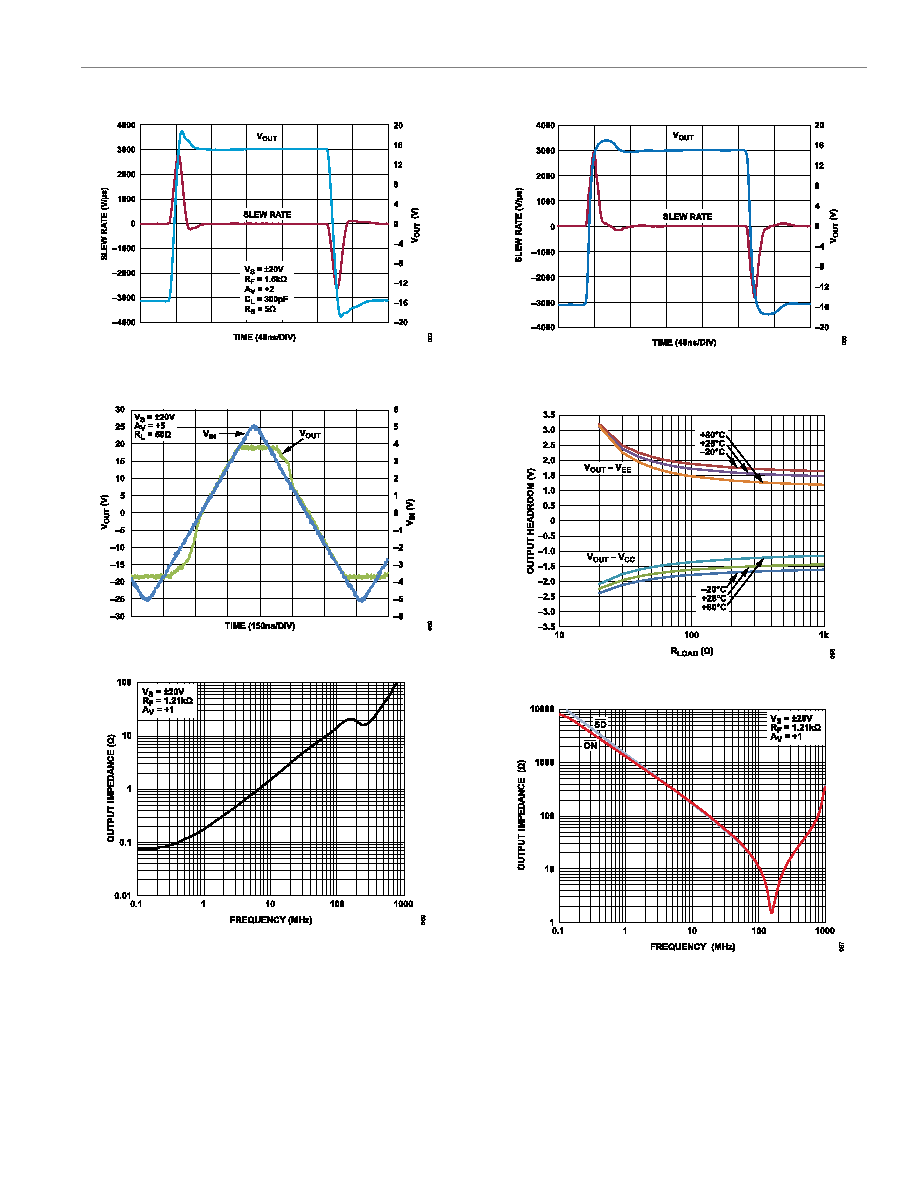

Figure 52. Large Signal Instantaneous Slew Rate, AV = +2, VS = ±20 V, RF =
1.5 kΩ, CL = 300 pF, RS = 5 Ω
Figure 53. Output Overdrive Recovery, VS = ± 20 V, AV = +5, RL = 50 Ω
Figure 54. Enabled Closed-Loop Output Impedance vs. Frequency
Figure 55. Large Signal Instantaneous Slew Rate, AV = +2, VS = ±20 V, RF =
1.5 kΩ, RL = 25 Ω
Figure 56. Output Headroom vs. RLOAD Over Case Temperature, VS = ±20 V
Figure 57. Disabled Closed-Loop Output Impedance vs. Frequency
