Data Sheet

ADA4870

TYPICAL PERFORMANCE CHARACTERISTICS

analog.com

Rev. B | 9 of 24

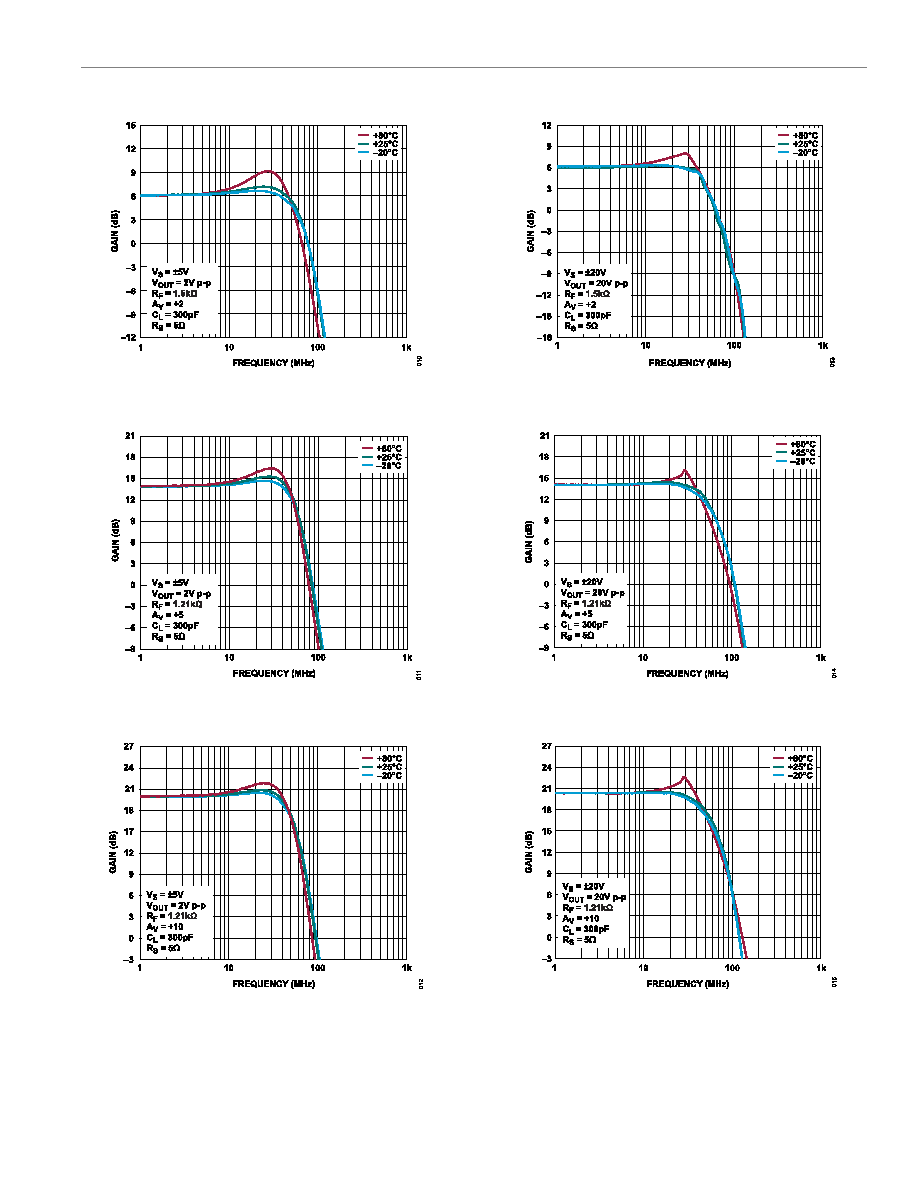

Figure 10. Small Signal Frequency Response vs. Case Temperature, AV = +2,

VS = ±5 V, VOUT = 2 V p-p, RF = 1.5 kΩ, CL = 300 pF, RS = 5 Ω

Figure 11. Small Signal Frequency Response vs. Case Temperature, AV = +5,

VS = ±5 V, VOUT = 2 V p-p, RF = 1.21 kΩ, CL = 300 pF, RS = 5 Ω

Figure 12. Small Signal Frequency Response vs. Case Temperature, AV =

+10, VS = ±5 V, VOUT = 2 V p-p, RF = 1.21 kΩ, CL = 300 pF, RS = 5 Ω

Figure 13. Large Signal Frequency Response vs. Case Temperature, AV = +2,

VS = ±20 V, VOUT = 20 V p-p, RF = 1.5 kΩ, CL = 300 pF, RS = 5 Ω

Figure 14. Large Signal Frequency Response vs. Case Temperature, AV = +5,

VS = ±20 V, VOUT = 20 V p-p, RF = 1.21 kΩ, CL = 300 pF, RS = 5 Ω

Figure 15. Large Signal Frequency Response vs. Case Temperature, AV =

+10, VS = ±20 V, VOUT = 20 V p-p, RF = 1.21 kΩ, CL = 300 pF, RS = 5 Ω
