AS7331

Functional Description

Datasheet

• PUBLIC

DS001047

• v4-00 • 2023-Mar-24

│ 43

After the protocol starts, the data at the SDA pin must be fully stable during the high phase of the I²C

clock at the SCL pin. The change of the communication data at the SDA pin is only allowed during the

low phase of the SCL clock.

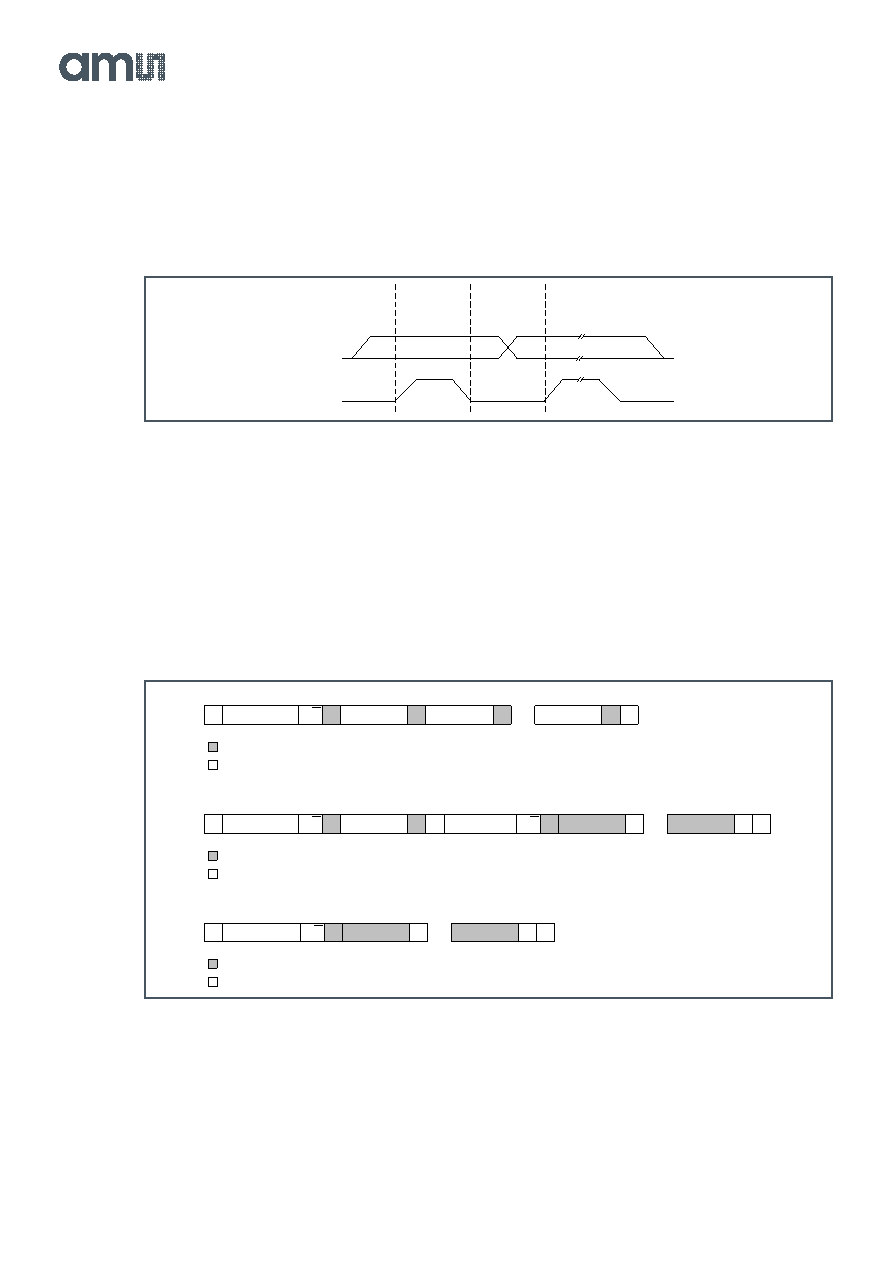

Figure 37:

Bit

– Transfer on I²C Bus

Each data transfer consists of 1 byte, which has to be followed by an acknowledge bit (A) (see

Figure 38). The bits arrive with the MSB first. The acknowledge signal shall be pulled low by the

receiver during the high period of the ninth clock pulse while the transmitter releases the SDA line.

When SDA stays high during the ninth clock pulse, the not acknowledge signal (NA) is output. After

the not acknowledge signal, the master generates either a stop or a repeated start condition,

depending on whether the master either wants to abort or start a new transfer. In the case of the

AS7331 as a slave, a not acknowledge (NA) is only generated if the device address did not match.

Figure 38:

I²C Write and Read Sequences

SCL

SDA

data line

stable;

data valid

change

of data

allowed

read sequence:

P: STOP cond.

S SLAVE ADDR. R/W A

REG ADDR. A

A: acknowledge

NA: not acknowledge

S: START cond.

Sr: repeated START cond.

DATA

NA P

. . .

Sr SLAVE ADDR.R/W

S: START cond.

P: STOP cond.

S SLAVE ADDR. R/W A

REG ADDR. A

DATA

A P

write sequence:

. . .

data transferred from slave to master

data transferred from master to slave

A: acknowledge

DATA

NA P

. . .

S SLAVE ADDR. R/W

short read sequence:

S: START cond.

P: STOP cond.

A: acknowledge

data transferred from slave to master

data transferred from master to slave

data transferred from slave to master

data transferred from master to slave
