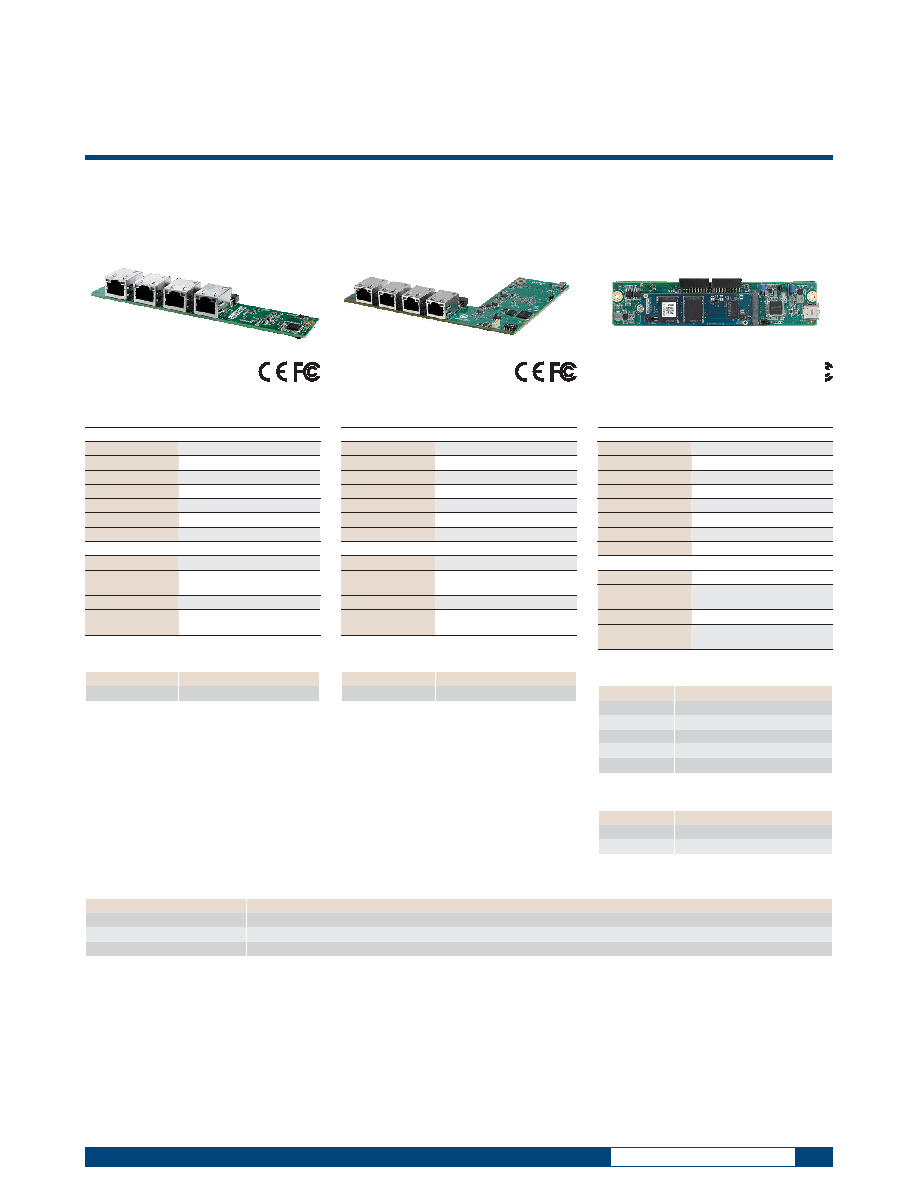

UIO40-Express I/O Expansion Boards

UIO-4036

4 x GbE

UIO-4038

4 x GbE (3 x LAN; 1 x WAN)

UIO-4040

NVMe SSD

Compatible Main Boards

Part No.

Description

RSB-3430XD-PXA1E*

RSB-3430 NXP i.MX6 Series 2.5" UIO Main Board

RSB-3720XX-XCA1E*

RSB-3720 NXP i.MX8M Plus Series 2.5" UIO Main Board

RSB-3710XX-XXA1E*

RSB-3710 Rockchip RK3399 Series 2.5" UIO Main Board

*X indicates different configurations, please refer to each main board's datasheet for complete P/N to order.

Specifications

General

USB

–

RS-232

–

RS-485

–

GPIO

–

CAN Bus

–

GbE

4 x GbE

Dimension

146 x 31 x 20 mm

Environment

Weight

200g

Operating Humidity

5 ~ 95% relative humidity,

non-condensing

Operating Temperature -40 ~ 85 °C

Storage Temperature

-40 ~ 85 °C and 60 °C @ 95% RH

Non-Condensing

Ordering Information

P/N

Description

UIO-4036

UIO-4036, 4 GbE

Specifications

General

USB

-

RS-232

-

RS-485

-

GPIO

-

CAN Bus

-

GbE

4 x GbE (3 x LAN; 1 x WAN)

Dimension

146 x 100 x 20mm

Environment

Weight

300g

Operating Humidity

5 ~ 95% relative humidity,

non-condensing

Operating Temperature -40 ~ 85 °C

Storage Temperature

-40 ~ 85 °C and 60 °C @ 95% RH

Non-Condensing

Ordering Information

P/N

Description

UIO-4038

UIO-4038, 3 x LAN 1 X WAN

Specifications

General

USB

-

RS-232

-

RS-485

-

GPIO

-

CAN Bus

-

GbE

-

NVMe SSD

SQF-C8Bxx-xG-EDx

Dimension

146 x 31 x 20mm

Environment

Weight

200g

Operating Humidity

5 ~ 95% relative humidity,

non-condensing

Operating Temperature -40 ~ 85 °C

Storage Temperature

-40 ~ 85 °C and 60 °C @ 95% RH

Non-Condensing

Ordering Information

P/N

Description

UIO-4040-128G

UIO-4040, NVMe SSD storage 128GB

UIO-4040-256G

UIO-4040, NVMe SSD storage 256GB

UIO-4040-512G

UIO-4040, NVMe SSD storage 512GB

UIO-4040-1TB

UIO-4040, NVMe SSD storage 1TB

UIO-4040-2TB

UIO-4040, NVMe SSD storage 2TB

Optional Accessories

P/N

Description

TBD

Heat spreader, AL 68.5 x 16 x 11.63 mm

TBD

Heat spreader, AL 70 x 25.4 x 19.5 mm
