RSB-3810

Packing List

Part Number

Description

RSB-3810

RSB-3810 2.5" SBC with Heat Sink

Optional Accessories

Part Number

Description

96PSA-A36W12W7-5

ADP A/D 100-240V 36W 12V C6 LOCK DC JACK 62368

1700001524

Power Cord 3P UL 10A 125V 180cm

170203183C

Power Cord 3P Europe (WS-010+WS-083) 183cm

170203180A

Power Cord 3P UK 2.5A/3A 250V 1.83M

1700008921

Power Cord 3P PSE 183cm

1700009652

Power Cord CCC 3P 10A 250V 187cm

TBD

UIO20 extending cable of RSB-3720 for 3USB&2GPIO

1700030307-01

UIO40 extending cable of RSB-3430, 3COM&8GPIO

1700031429-01

Line out cable

1700026878-01

Mic. in cable

1700100250

Debug Cable 10P-2.0/D-SUB 9P(M) 25CM

1700019474

RS-232 Cable DB9 female to DB9 female

96LEDK-A070WV40NB1 LVDS 7" Panel G070VW01 V0 (VDD: 3.3V, Backlight Power:

12V)

1700021883-01

LVDS Cable

1700032155-01

LVDS BKLT Cable

EWM-W163M201E

802.11 a/b/g/n/ac,QCA6174A,2T2R,w/BT4.1,M.2 2230

1750008717-01

Dipole Ant. D.B 2.4/5G WIFI 3dBi SMA/M-R BLK

1750007965-01

Antenna Cable R/P SMA (M) to MHF4, 300mm

EWM-C117FL06E*

LTE 4G,3G WCDMA/DC-HSPA+, 2G module,

MPCI-L280H

1750008303-01

Antenna AN0727-64SP6BSM

1750006009

Antenna Cable SMA (F) to MHF 1.32 25cm

* Please contact us to get suitable celluar module for your region.

Ordering Information

Part No.

CPU

Memory

Flash Memory HDMI

LVDS

LAN

USB Host

SD

Operating Temperature

RSB-3810CO-FCA1E

MediaTek Genio 1200

8 GB

32 GB

1

1

2

2

1

-20 ~ 60 °C

Dimensions

Unit: mm

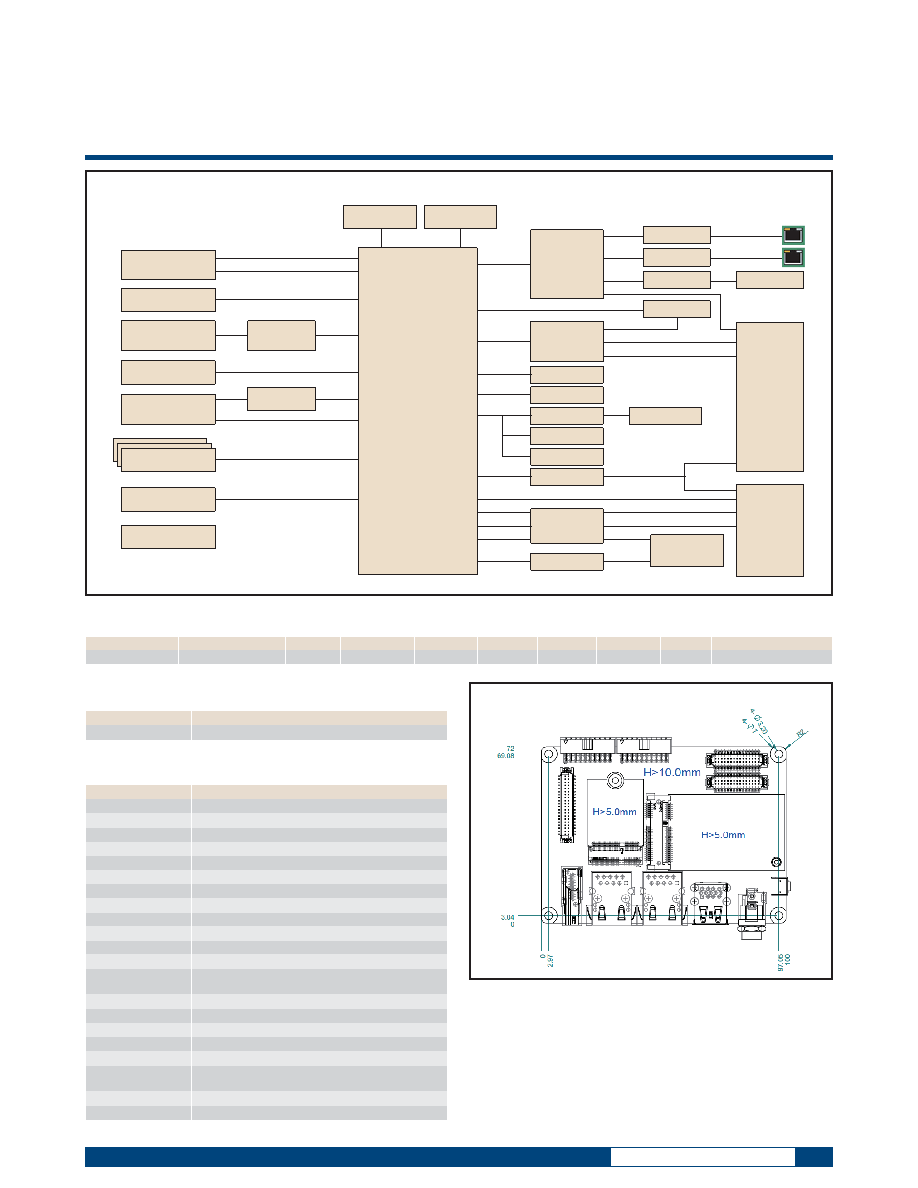

Block Diagram

Front I/O on RSB-3810

RTC Battery

USB3.0 P0

USB3.0 P1

PCIe3.0

USB3.0 1

USB3.0 P2

I2S

HDMI TX

USB3.0 + USB2.0

Type A Connector

USB3.0 HUB

USB2.0 HUB

2-Lane eDP

I2C1

LVDS

Line out

Mic in Pin Header

PMIC

MT6365

eDP to LVDS

RTL8135

USB3.0 4

RTL8135

USB3.0 3

USB2.0 3

USB2.0 2

USB2.0 1

M.2 Key B

USB2.0

Transceiver

UART 1

UART 3

UART 0

COM1

COM3

Debug Port

SPI

SPIA

LED

GPIO

SEIKO

I2C

WDT

TPM

GPIO Expander

I2C4

RS232/422/485

UART 2

I2C3

GPIOx10

M.2 Key E

SIM Slot

UIO1

UIO2

Micro SD

LPDDR4

eMMC

HDMI

4-Lane MIPI-CSI 1:3

Connector

HDMI RX

FPC HDMI RX

12V DC Jack

MediaTek Genio 1200

4 x Cotex A78

4 x Cotex A55

PIN Header
