RISC Computing Platforms

Features

ƒ

NXP Arm® Cortex®-A53 i.MX8M Plus Quad/Dual up to 1.8 GHz

ƒ

Onboard LPDDR4 4 GB/ 6 GB, 4000MT/s memory

ƒ

HDMI 1920x1080 at 60Hz, 1 Single or 1 Dual Channel 24 bit LVDS

(or 1 4-Lane MIPI-DSI by BOM Option)

ƒ

1 4-wire RS-232/422/485, 1 USB3.2 Gen1 By 1, 1 USB2.0, 1 Micro SD,

1 Mic. in / Line out

ƒ

1 mini-PCIe for 3G/4G, 1 M.2 2230 Key E Slot

ƒ

Supports Yocto Linux and Android

ƒ

Support I/O Expansions by UIO40-Express I/O boards, please refer to page

#3 for more information

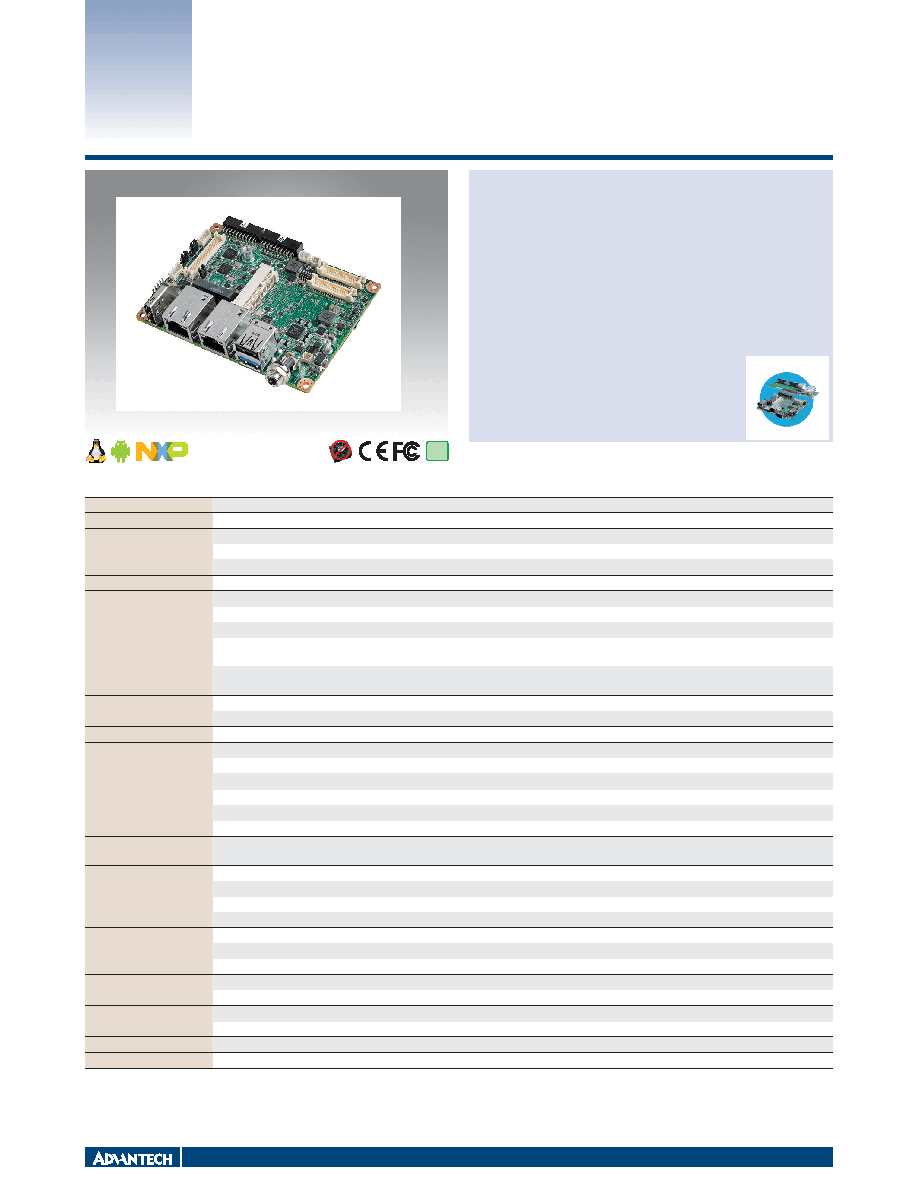

RSB-3720

NXP i.MX8M Plus Cortex®-A53 2.5" SBC

with UIO40-Express

Specifications

Form Factor

2.5" SBC with UIO40-Express for I/O Expansions

Processor System

CPU

NXP i.MX8M Plus Cortex-A53 Quad/Dual core (up to 1.8GHz)

Memory

Technology

LPDDR4 4000MT/s

Capacity

On-board 4 GB / 6 GB

Flash

16 GB eMMC Flash for O.S. and 8 MB QSPI NOR Flash for board information

NPU

NPU

2.3 TOP/s Neural Network Performance (Support AI models based on Tensorflow Lite and armNN Framework)

Graphics

HDMI

1 HDMI 2.0a, up to 3840 x 2160 at 30Hz

LVDS

1 Single Channel or 1 Dual Channel 24 Bit LVDS, Backlight power, 5/12V, Max. 1A

MIPI-DSI

1 4-Lane MIPI-DSI (shared with LVDS connector) by BOM option

Graphics Engine

GC7000UL with 2D/3D Graphic Acceleration supporting 1G Pixel/s, OpenVG 1.1, Open GL ES3.1, Vulkan,

and Open CL 1.2 FP.

H/W Video Codec

Decoder: 1080p60 HEVC/H.265 Main, VP9 Profile 0/2, VP8, AVC/H.264 Baseline/Main/High

Encoder: 1080p60 AVC/H.264, HEVC/H.265

Ethernet

Chipset

NXP i.MX8M Plus integrated RGMII

Speed

2 10/100/1000 Mbps

WatchDog Timer

WatchDog Timer

1~6553s, power on/off 4s

I/O

USB

1 USB3.2 Gen1 By 1 Host, 1 USB2.0 Host

Audio

1 Mic. in / Line out by pin header

CAN

1 CANbus for RSB-3720CQ/CD or 1 CAN-FD for RSB-3720WQ/WD by COM1 pin header*

Serial Port

1 4 wires RS-232/422/485 by COM1 pin header* (default configured as debug console)

Camera Input

2 4-Lane MIPI-CSI2

UIO40-Express

1 USB3.2 Gen1 By 1, 3 USB2.0, 10 GPIO, 2 UART, 1 CANbus, 1 I2C

Indicator

LED

1 Power LED

1 Programmable LED

Expansion

Mini PCIe

1 Full Size Mini PCIe Slot (USB Signal Only)

M.2

1 M.2 2230 Key E Slot (USB/PCIe/SDIO/UART/I2S)

SD Socket

1 Micro SD Socket

SIM Slot

1 Nano SIM Slot

Power

Power Supply Voltage

+12 V

Power Type

Lockable DC-Jack (2pin type connector by BOM option)

Power Consumption

7.13W

Environment

Operating Temperature

0 ~ 60 °C / -40 ~ 85 °C

Operating Humidity

5%~95% Relative humidity, non-condensing

Mechanical

Dimensions

100 x 72 x 19 mm

Weight

0.05kg

Operation System

Yocto Linux & Android

Certifications

CE/FCC Class B

*COM1 pin header shared by serial port and CANbus

RoHS

COMPLIANT

2002/95/EC

All product specifications are subject to change without notice.

Last updated: 1-Aug-2022
