RSB-3720

Packing List

Part Number

Description

RSB-3720

RSB-3720 2.5" SBC with Heat Sink

Optional Accessories

Part Number

Description

96PSA-A36W12W7-5

ADP A/D 100-240V 36W 12V C6 LOCK DC JACK 62368

1700001524

Power Cord 3P UL 10A 125V 180cm

170203183C

Power Cord 3P Europe (WS-010+WS-083) 183cm

170203180A

Power Cord 3P UK 2.5A/3A 250V 1.83M

1700008921

Power Cord 3P PSE 183cm

1700019146

Power Cord CCC 3P 10A 250V 187cm

1700030307-01

UIO40 extending cable of RSB-3430, 3COM&8GPIO

1700031429-01

Line out cable

1700026878-01

Mic. in cable

1700100250

Debug Cable 10P-2.0/D-SUB 9P(M) 25CM

1700019474

RS-232 Cable DB9 female to DB9 female

96LEDK-A070WV40NB1

LVDS 7" Panel G070VW01 V0 (VDD: 3.3V, Backlight Power: 12V)

1700021883-01

LVDS Cable

1700032155-01

LVDS BKLT Cable

AIW-154BN

802.11ac+BT5.0 NXP 88W8997 M.2 2230 PCIe+UART

1750008717-01

Dipole Ant. D.B 2.4/5G WIFI 3dBi SMA/M-R BLK

1750007965-01

Antenna Cable R/P SMA (M) to MHF4, 300mm

AIW-344FQ-J01*

AIW-3 series LTE CAT4 mini PCI-e module for JP

1750008303-01

Antenna AN0727-64SP6BSM

1750006009

Antenna Cable SMA (F) to MHF 1.32 25cm

* Please contact us to get suitable celluar module for your region.

Ordering Information

Part No.

CPU

Memory

Flash Memory

HDMI

LVDS

LAN

USB Host

SD

CANbus

Interface by

UIO40-Express

Operating

Temperature

RSB-3720CD-BCA2E

NXP i.MX8M Plus

Dual 1.8 GHz

4 GB

16 GB

1

2

2

2

1

2

1 USB3.2 Gen1 By 1,

3 USB2.0, 10 GPIO,

2 UART, 1 CANbus,

1 I2C

0 ~ 60 °C

RSB-3720WD-BCA2E

NXP i.MX8M Plus

Dual 1.6 GHz

4 GB

16 GB

1

2

2

2

1

2 (1 with CAN-FD)

-40 ~ 85 °C

RSB-3720CQ-ACA2E

NXP i.MX8M Plus

Quad 1.8 GHz

6 GB

16 GB

1

2

2

2

1

2

0 ~ 60 °C

RSB-3720WQ-ACA2E

NXP i.MX8M Plus

Quad 1.6 GHz

6 GB

16 GB

1

2

2

2

1

2 (1 with CAN-FD)

-40 ~ 85 °C

Dimensions

Unit: mm

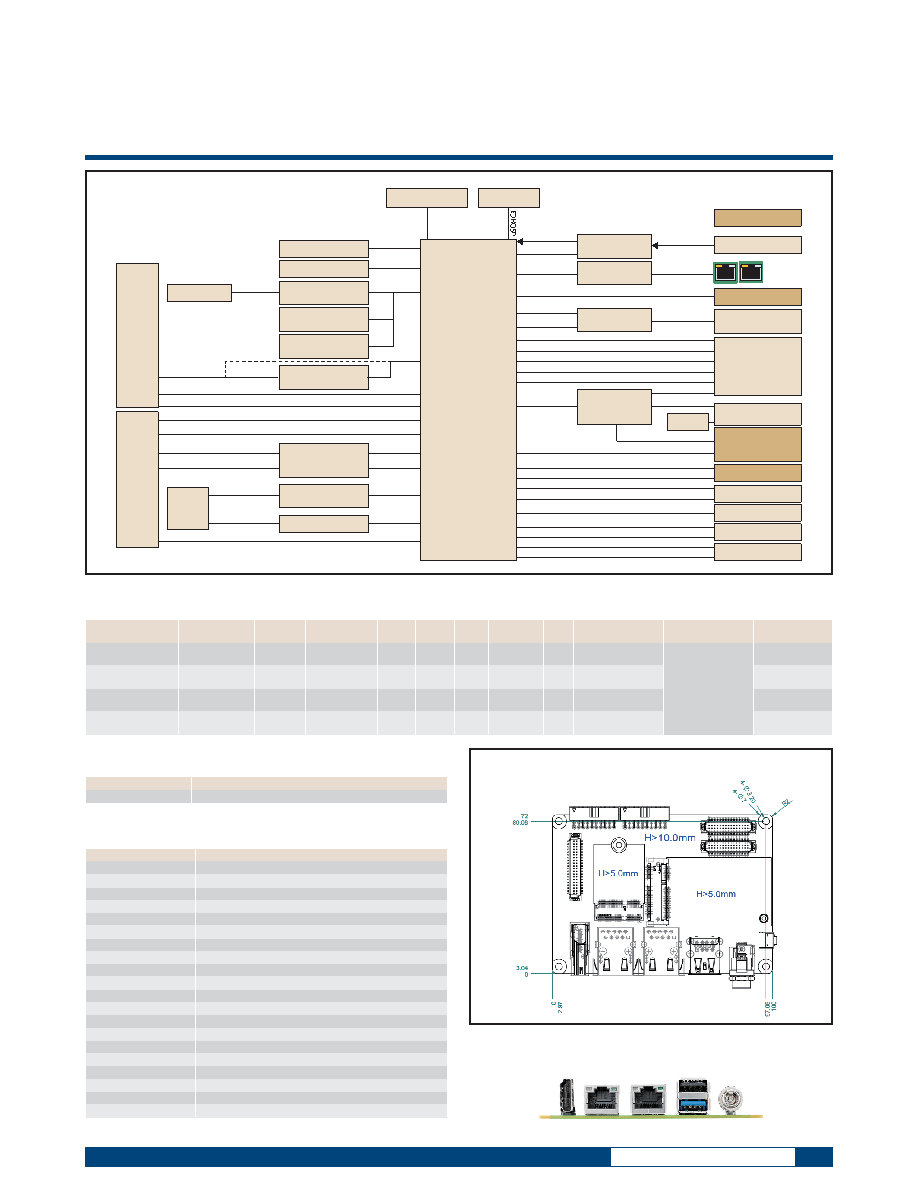

Block Diagram

Front I/O on RSB-3720

I2C1

QSPIA

32bits LPDDR4

UIO1

UIO2

eMMC

I2C1

RGMII x2

SAI2

UART1(4-wire)

uSDHC1

I2C1

PCIe

USB3

USB3.2 Gen1 By 1 x1

USB4

Power

GPIO x1

USB 2.0

USB 1/2/3

USB 1

COM2

COM4

(Default congured

as debug console)

USB3.2 Gen1

GPIO x2

GPIO x8

I2C4

FlexCAN2

*Support CAN-FD in Wide temp. SKUs: RSB-3720WQ/RSB-3720WD

UART2

UART4

UART3(4-wire)

RTC Battery

Pin

Header

QSPI

LED

SEIKO

S-35390A

PMIC

NXP_PCA9450CHN

GbE PHY x2

uSDHC2

DDC

HDMI

I2C1

BKLT

4-LaneMIPI-DSI x1 & LVDS x2

SIM Slot

RTL8211FS

I2C1

Audio Codec

SGTL5000

WDT

TI_MSP430

TPM

ST_ST33H

Microchip

USB2514B

RS-232

Transceiver

TI_MAX3243

RS-232/422/485

CP339

FlexCAN1

CAN-FD or CANbus*

NXP i.MX8M Plus

Up to 4x Cortex-A53

SAI3

USB2.0

USB1

USB2

Microchip

USB2514B

Micro SD

USB3.0 + USB2.0

Type A Stacking

Connector

HDMI Connector

Dual Channel LVDS

I2C2

4-Lane MIPI-CSI2-1

Connector

Reset Button

I2C3

4-Lane MIPI-CSI2-2

Connector

Line Out

Mic In Pin Header

Backlight Connector x2

MINI PCIe

M.2 (Key E) x1

12V DC-Jack
