FTK830P Folha de dados(PDF) 5 Page - First Silicon Co., Ltd

Nome de Peças FTK830P
Descrição Electrónicos  5A, 500V, 1.5 廓, N-CHANNEL POWER MOSFET
PDF  8 Pages
Scroll/Zoom Zoom In 100%  Zoom Out
Fabricante Electrônico  FS [First Silicon Co., Ltd]
Página de início  http://www.firstsilicon.co.kr/
Logo FS - First Silicon Co., Ltd

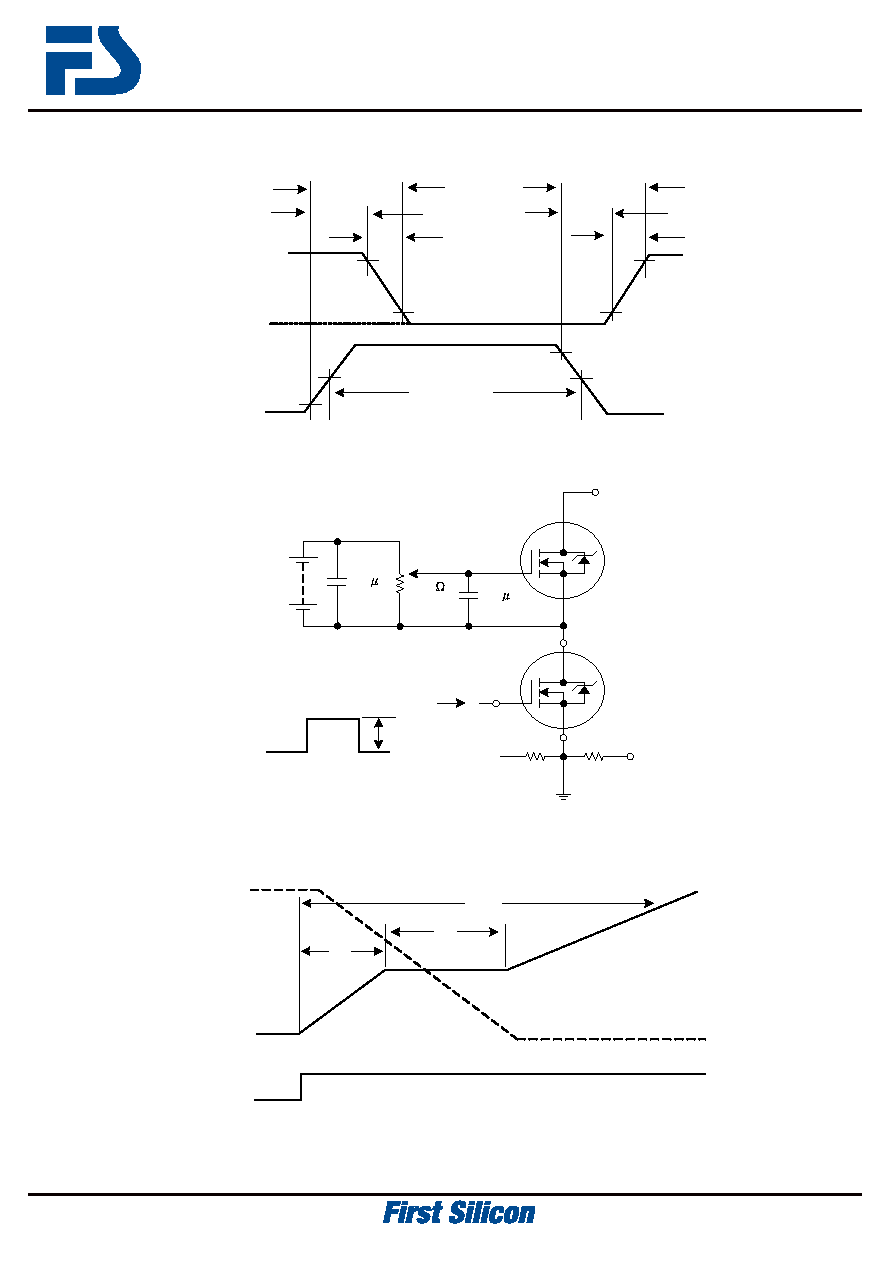

FTK830P Folha de dados(HTML) 5 Page - First Silicon Co., Ltd

  FTK830P Datasheet HTML 1Page - First Silicon Co., Ltd FTK830P Datasheet HTML 2Page - First Silicon Co., Ltd FTK830P Datasheet HTML 3Page - First Silicon Co., Ltd FTK830P Datasheet HTML 4Page - First Silicon Co., Ltd FTK830P Datasheet HTML 5Page - First Silicon Co., Ltd FTK830P Datasheet HTML 6Page - First Silicon Co., Ltd FTK830P Datasheet HTML 7Page - First Silicon Co., Ltd FTK830P Datasheet HTML 8Page - First Silicon Co., Ltd
Zoom Inzoom in Zoom Outzoom out
 5 / 8 page
background image
MOSFET
2007. 12. 18
5/8
FTK830P / F
Revision No : 0
tON
tDLY(ON)
tR
90%
10%
0
VDS
tDLY(OFF)
tOFF
tF
90%
10%
90%
50%
50%
VGS
0
10%
PULSE WIDTH
FIGURE 4. RESISTIVE SWITCHING WAVEFORMS
0
G
S
D
0.3 F
SAME TYPE
AS DUT
50K
0.2 F
12V
BATTERY
DUT
VDS
ID CURRENT
SAMPLING
RESISTOR
IG CURRENT
SAMPLING
RESISTOR
IG(REF)
CURRENT
REGULATOR
VDS (ISOLATED
SUPPLY)
FIGURE 5. GATE CHARGE TEST CIRCUIT
VGS
QGD
QG(TOT)
QGS
VDD
0
IG(REF)
0
VDS
FIGURE 6. GATE CHARGE WAVEFORMS
