Detailed description
STLED524
42/72
DocID026217 Rev 1

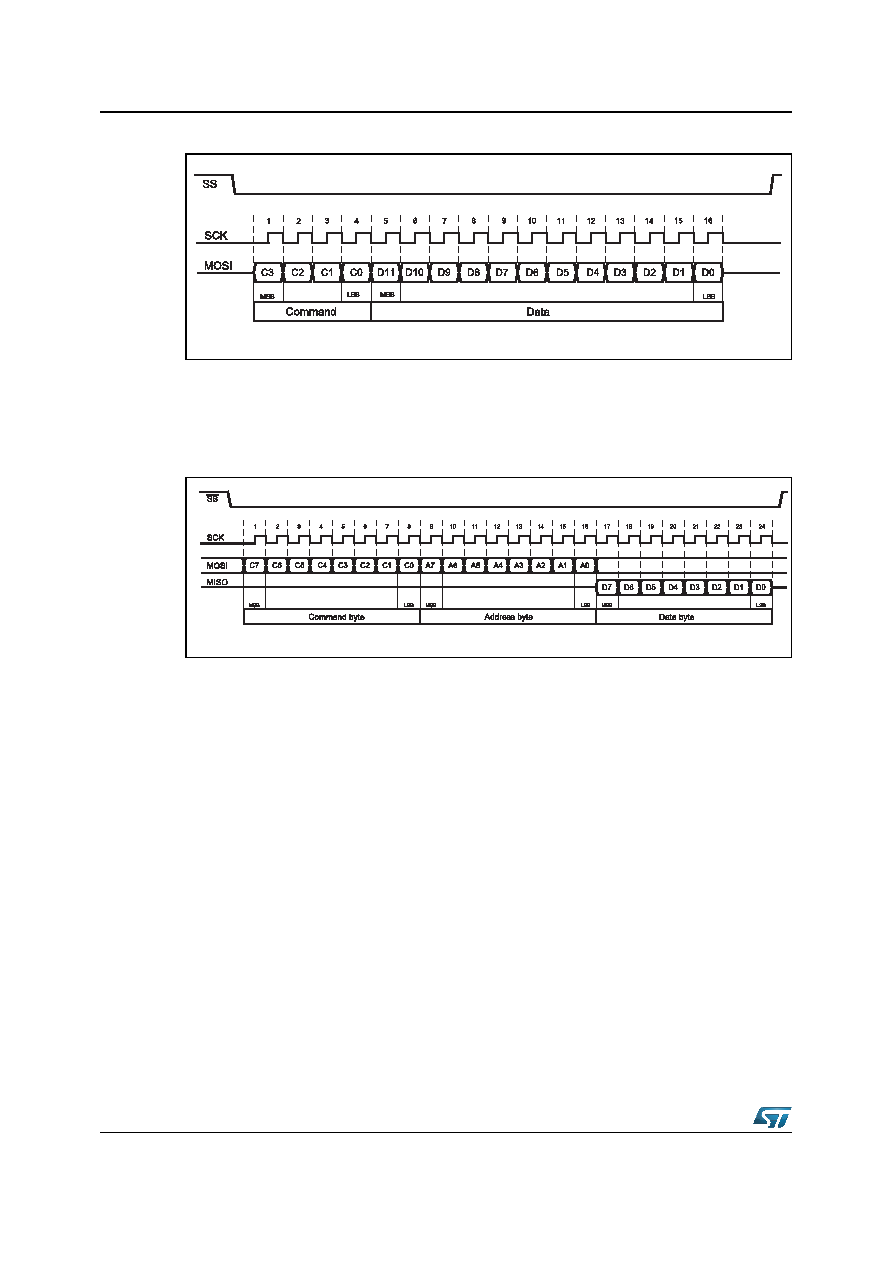

Figure 19. SPI protocol (writing)
All output data bytes are shifted out of the device, the most significant bit first. The serial
data output (MISO) is latched on the first falling edge of the serial clock (SCK) after the
command (such as the read from control registers) has been clocked into the device.
Figure 20 shows the reading of a single byte from the device.
Figure 20. SPI protocol (reading)
GIPG2103141035LM
GIPG2103141042LM
