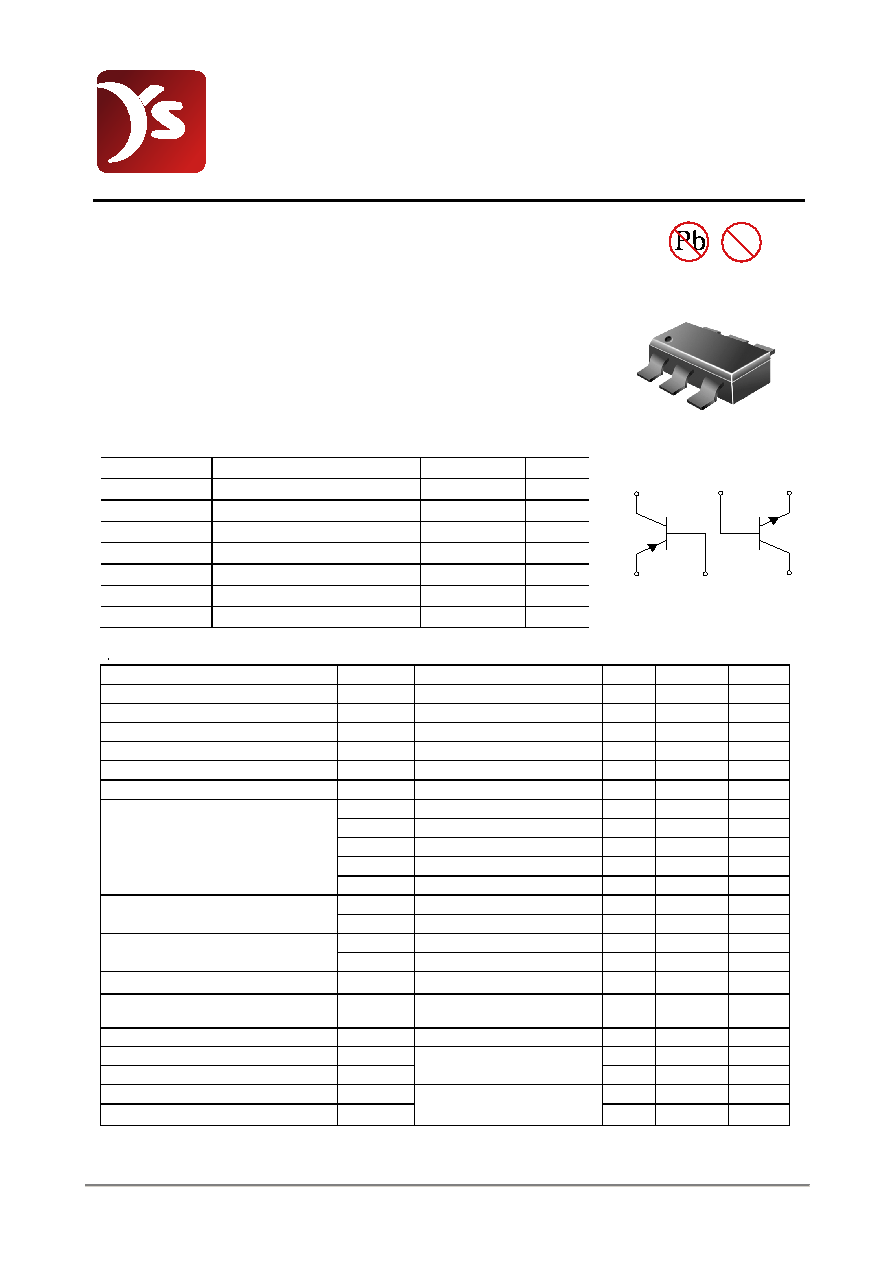

DATA SHEET

SEMICONDUCTOR

http://www.yeashin.com

1

REV.02 20120703

MMBT3946DW

COMPLEMENTARY NPN/PNP TRANSISTOR

FEATURES

Complementary Pair

One 3904-Type NPN,

One 3906-Type PNP

Epitaxial Planar Die Construction

Ideal for Low Power Amplification and Switching

MAKING: 46

MAXIMUM RATINGS (TA=25

℃ unless otherwise noted)

Symbol

Parameter

Value

Units

VCBO

Collector-Base Voltage

60

V

VCEO

Collector-Emitter Voltage

40

V

VEBO

Emitter-Base Voltage

5

V

IC

Collector Current -Continuous

0.2

A

PC

Collector Power Dissipation

0.2

W

TJ

Junction Temperature

150

℃

Tstg

Storage Temperature

-55-150

℃

NPN 3904 ELECTRICAL CHARACTERISTICS (Tamb=25

℃ unless otherwise specified)

Parameter

Symbol

Test

conditions

MIN

MAX

UNIT

Collector-base breakdown voltage

V(BR)CBO

IC = 10μA, IE=0

60

V

Collector-emitter breakdown voltage

V(BR)CEO

IC= 1mA, IB=0

40

V

Emitter-base breakdown voltage

V(BR)EBO

IE= 10μA, IC=0

5

V

Collector cut-off current

ICBO

VCB= 30 V , IE=0

0.05

μA

Collector cut-off current

ICEO

VCE= 30 V , IB=0

0.5

μA

Emitter cut-off current

IEBO

VEB= 5V ,

IC=0

0.05

μA

hFE(1)

VCE= 1V, IC= 0.1mA

40

hFE(2)

VCE= 1V, IC= 1mA

70

hFE(3)

VCE= 1V, IC= 10mA

100

300

hFE(4)

VCE= 1V, IC= 50mA

60

DC current gain

hFE(5)

VCE= 1V, IC= 100mA

30

VCE(sat)1

IC=10 mA, IB= 1mA

0.2

V

Collector-emitter saturation voltage

VCE(sat)2

IC=50 mA, IB= 5mA

0.3

V

VBE(sat)1

IC= 10 mA, IB= 1mA

0.65

0.85

V

Base-emitter saturation voltage

VBE(sat)2

IC= 50 mA, IB= 5mA

0.95

V

Transition frequency

fT

VCE=20V,IC=20mA, f=100MHz

300

MHz

Noise figure

NF

VCE=5V,Ic=0.1mA,

f=1KHz,Rg=1KΩ

5

dB

Output Capacitance

Cob

VCB=5V,IE=0,f=1MHz

4

pF

Delay time

td

35

nS

Rise time

tr

VCC=3V, VBE=0.5V

IC=10mA , IB1=- IB2=1mA

35

nS

Storage time

tS

200

nS

Fall time

tf

VCC=3V, IC=10mA

IB1=-IB2= 1mA

50

nS

Q1

(1)

(2)

(3)

(4)

(5)

(6)

Q2

1

3

2

6

4

5

SOT–363/SC–88

CASE 419B STYLE 1

H
