LMSD103C Folha de dados(PDF) 2 Page - SUNMATE electronic Co., LTD

Nome de Peças LMSD103C
Descrição Electrónicos  SURFACE MOUNT SCHOTTKY BARRIER DIODES
PDF  2 Pages
Scroll/Zoom Zoom In 100%  Zoom Out
Fabricante Electrônico  SUNMATE [SUNMATE electronic Co., LTD]
Página de início  http://www.sunmate.tw/
Logo SUNMATE - SUNMATE electronic Co., LTD

LMSD103C Folha de dados(HTML) 2 Page - SUNMATE electronic Co., LTD

  LMSD103C Datasheet HTML 1Page - SUNMATE electronic Co., LTD LMSD103C Datasheet HTML 2Page - SUNMATE electronic Co., LTD
Zoom Inzoom in Zoom Outzoom out
 2 / 2 page
background image
0
100
200
500
025
50
75
125
150
T , AMBIENT TEMPERATURE (°C)
A

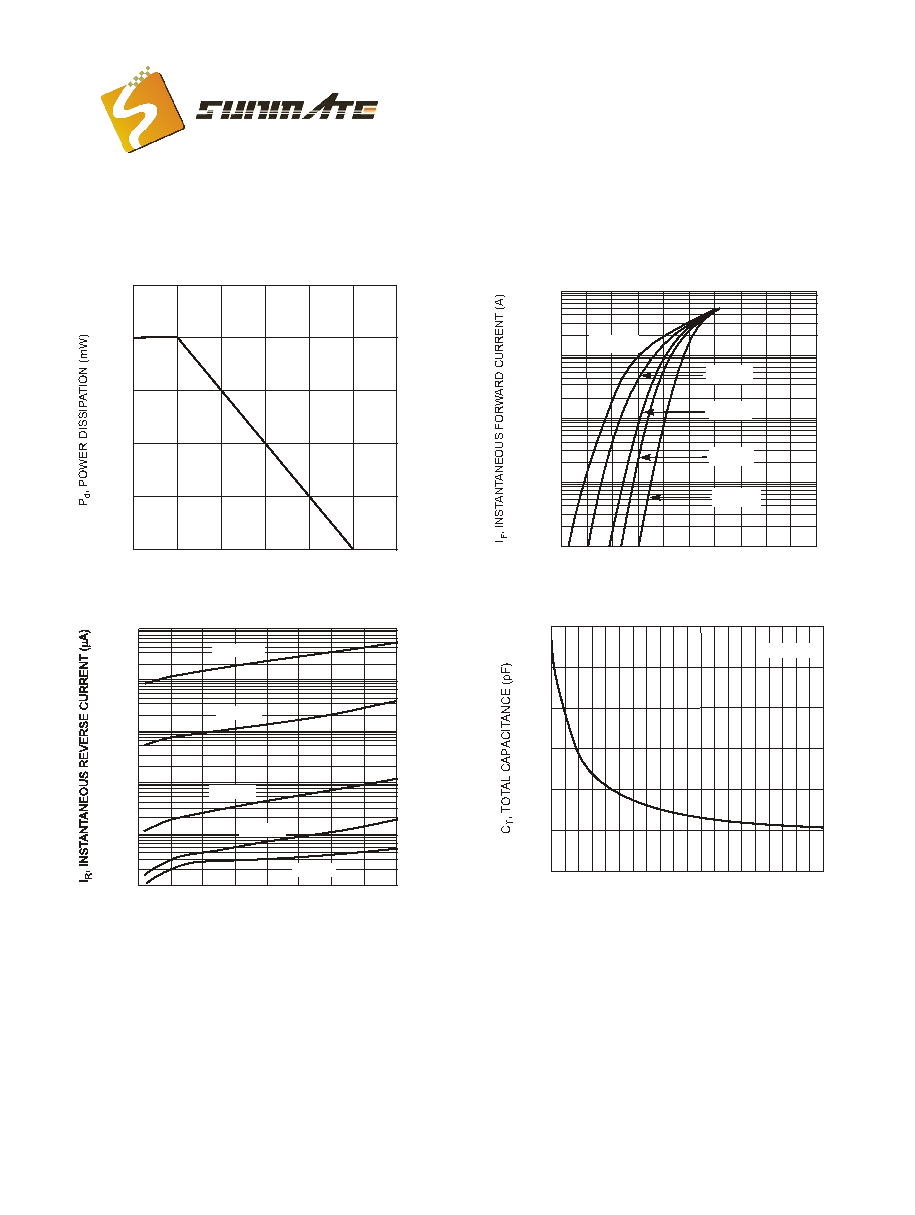

Fig.1 Power Derating Curve
100
300
400
0.01
0.1
1
0.001
0.0001
0
800
600
400
200
1000
V , INSTANTANEOUS FORWARD VOLTAGE (mV)
F
Fig. 2 Typical Forward Characteristics
T = 25
°C
A
T= 75
°C
A
T = 125
°C
A
T = 0
°C
A
T = -40
°C
A
0.01
0.1
1
10
100
1000
0
5
10
15
35
30
25
20
V , INSTANTANEOUS REVERSE VOLTAGE (V)
R
Fig.3 Typical Reverse Characteristics
T = 125°C
A
T = 75°C
A
T = 25°C
A
T = 0°C
A
T = -40°C
A
40
0
10
5
15
25
20
30
0
10
20
30
40
V , REVERSE VOLTAGE (V)
R
Fig. 4 Typ. Total Capacitance vs. Reverse Voltage
f = 1.0MHz
www.sunmate.tw
2 of 2
