AB08X5 Real-Time Clock Family

Date of Issue: October 16, 2014

3.0 x 3.0 mm

Page 25 of 33

Abracon Drawing #453567

Revision: C

5.10 Power On AC Electrical Characteristics

Figure 19 and Table 13 describe the power on AC electrical characteristics for the FOUT pin and XT

oscillator.

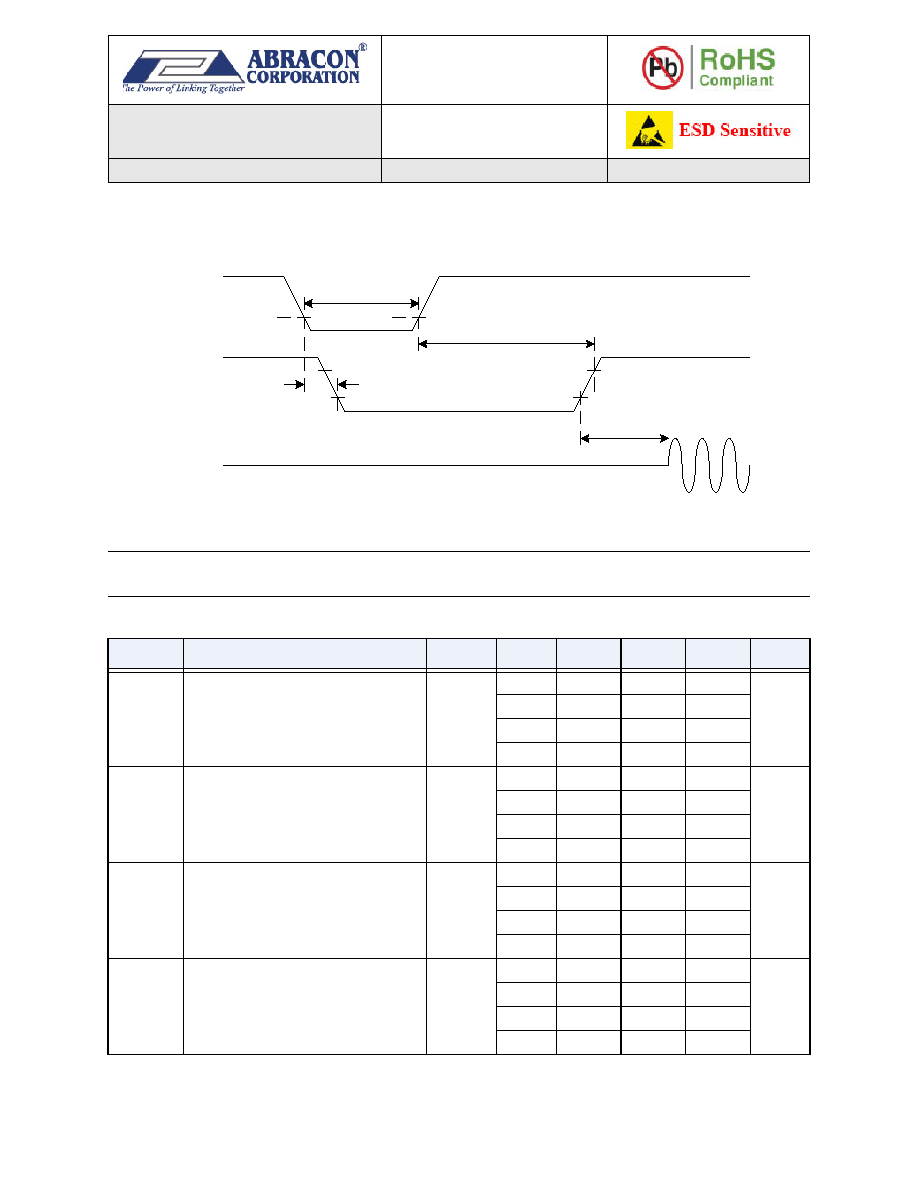

Figure 19. Power On AC Electrical Characteristics

 For Table 13, T

A = -40 °C to 85 °C, VBAT < 1.2 V

Table 13: Power On AC Electrical Parameters

SYMBOL

PARAMETER

VCC

MIN

TYP

MAX

UNIT

tLOW:VCC

Low period of VCC to ensure a valid POR

1.7V–3.6V

85 °C

0.1

25 °C

0.1

-20 °C

1.5

-40 °C

tVL:FOUT

VCC low to FOUT low

1.7V–3.6V

85 °C

0.1

25 °C

0.1

-20 °C

1.5

-40 °C

tVH:FOUT

VCC high to FOUT high

1.7V–3.6V

85 °C

0.4

25 °C

0.5

-20 °C

-40 °C

tXTST

FOUT high to XT oscillator start

1.7V–3.6V

85 °C

0.4

25 °C

0.4

-20 °C

0.5

-40 °C

1.5

VCC

FOUT tVL:FOUT

tLOW:VCC

tVH:FOUT

VCCRST

VCCST

tXTST
