AB08X5 Real-Time Clock Family
Date of Issue: October 16, 2014
3.0 x 3.0 mm
Page 16 of 33
Abracon Drawing #453567
Revision: C

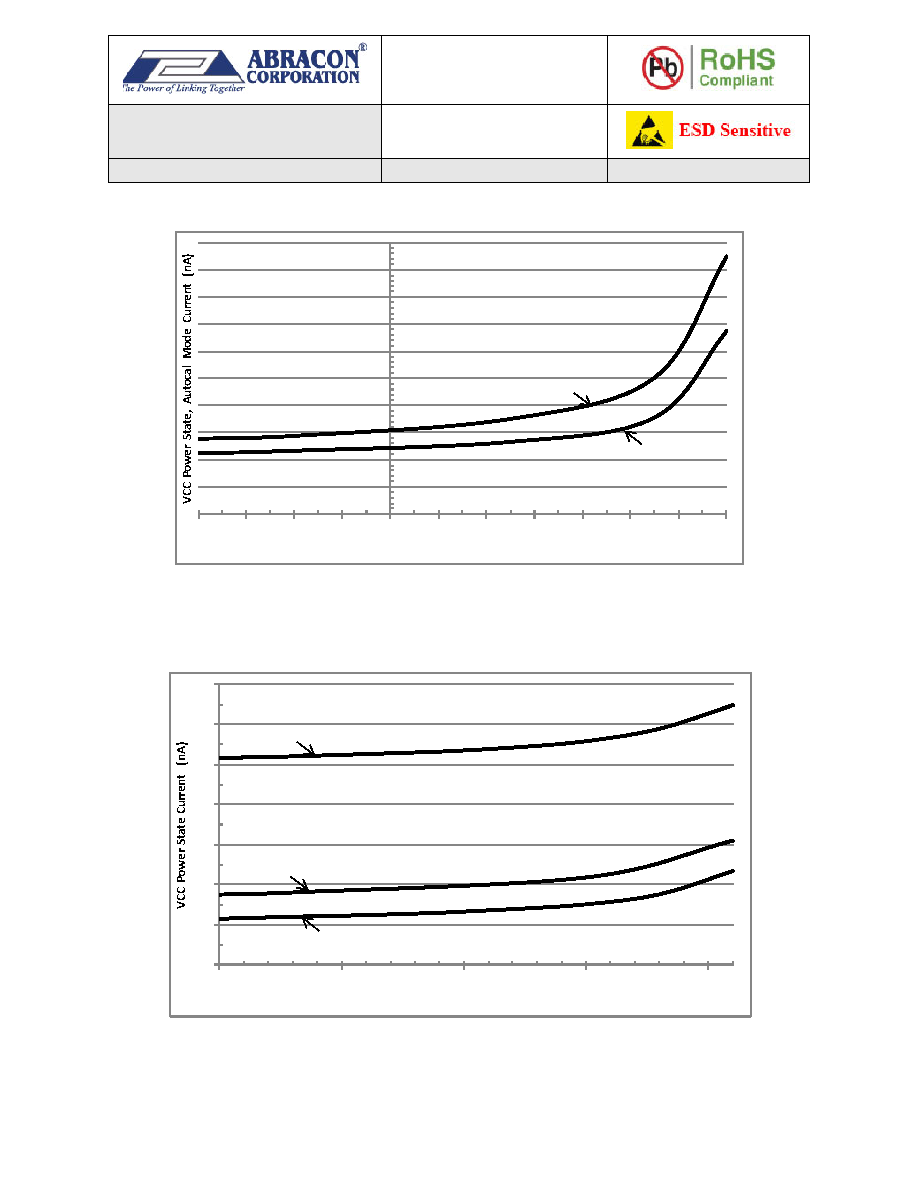

Figure 8 shows the typical VCC power state operating current vs. temperature in RC Autocalibration mode.
Figure 8. Typical VCC Current vs. Temperature in RC Autocalibration Mode
Figure 9 shows the typical VCC power state operating current vs. voltage for XT Oscillator and RC
Oscillator modes and the average current in RC Autocalibrated mode.
Figure 9. Typical VCC Current vs. Voltage, Different Modes of Operation
5
10
15
20
25
30
35
40
45
50
55
‐40
‐30
‐20
‐10
0
10
2030405060
70
Temperature  (°C)
VCC = 1.8V
VCC = 3.0V
TA = 25 °C
0
10
20
30
40
50
60
70
1.52
2.53
3.5
VCC  Voltage (V)
RC Oscillator Mode
XT Oscillator Mode
RC Autocalibrated Mode
TA = 25 °C
