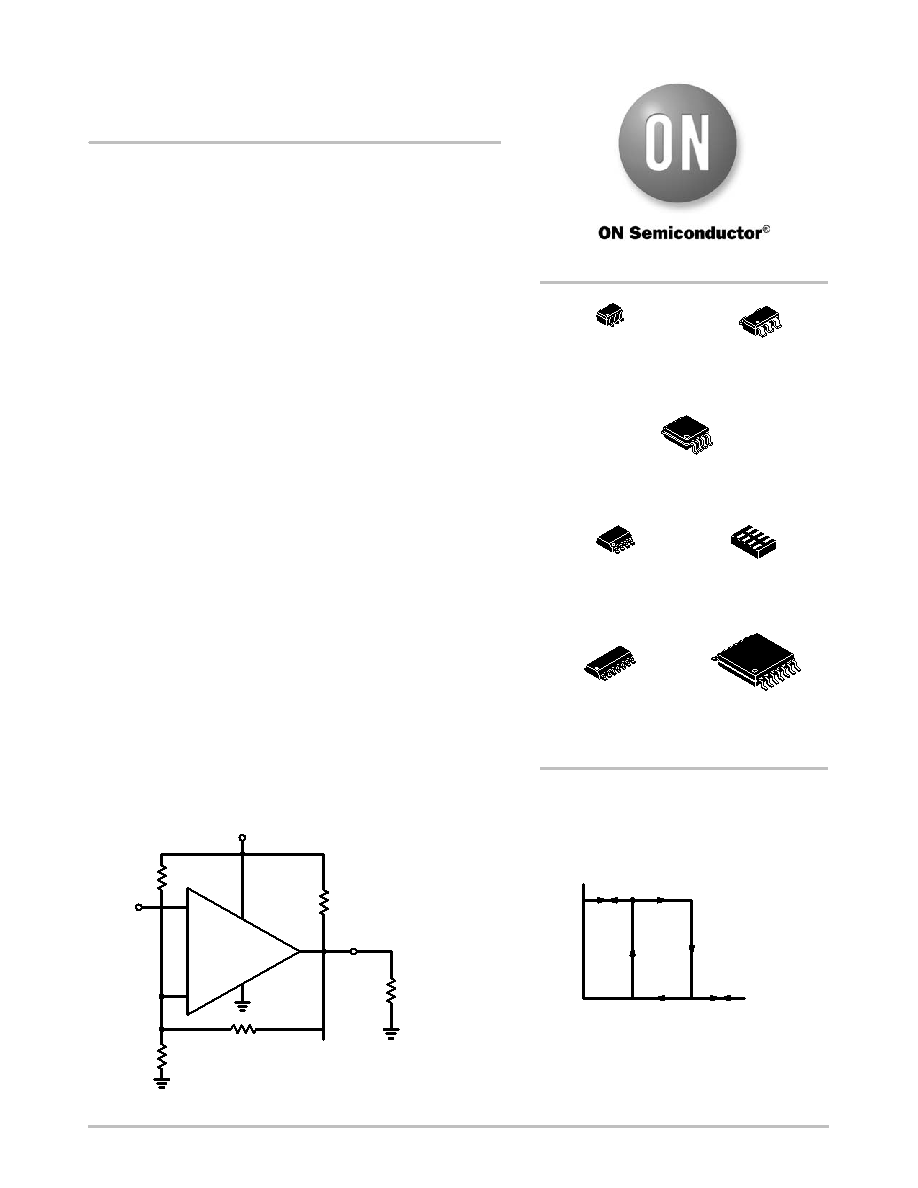

1 / 19 page

November, 2014 − Rev. 7

1

Publication Order Number:

LMV331/D

LMV331, NCV331, LMV393,

LMV339

Single, Dual, Quad General

Purpose, Low Voltage

Comparators

The LMV331 is a CMOS single channel, general purpose, low

voltage comparator. The LMV393 and LMV339 are dual and quad

channel versions, respectively. The LMV331/393/339 are specified

for 2.7 V to 5 V performance, have excellent input common−mode

range, low quiescent current, and are available in several space saving

packages.

The LMV331 is available in 5−pin SC−70 and TSOP−5 packages.

The LMV393 is available in a 8−pin Micro8

t, SOIC−8, and a

UDFN8 package, and the LMV339 is available in a SOIC−14 and a

TSSOP−14 package.

The LMV331/393/339 are cost effective solutions for applications

where space saving, low voltage operation, and low power are the

primary specifications in circuit design for portable applications.

Features

• Guaranteed 2.7 V and 5 V Performance

• Input Common−mode Voltage Range Extends to Ground

• Open Drain Output for Wired−OR Applications

• Low Quiescent Current: 60 mA/channel TYP @ 5 V

• Low Saturation Voltage 200 mV TYP @ 5 V

• Propagation Delay 200 ns TYP @ 5 V

• NCV Prefix for Automotive and Other Applications Requiring

Unique Site and Control Change Requirements; AEC−Q100

Qualified and PPAP Capable

• These Devices are Pb−Free, Halogen Free/BFR Free and are RoHS

Compliant

Typical Applications

• Battery Monitors

• Notebooks and PDA’s

• General Purpose Portable Devices

• General Purpose Low Voltage Applications

Figure 1. Inverting

Comparator with Hysteresis

+VCC

+

−

R3

V+

RPULL−UP

VO

RLOAD

R2

R1

VIN

VT1

VT2

VIN

VO

VCC

0

Figure 2. Hysteresis Curve

http://onsemi.com

SC−70

CASE 419A

See detailed ordering and shipping information in the package

dimensions section on page 13 of this data sheet.

ORDERING INFORMATION

Micro8

CASE 846A

SOIC−14

CASE 751A

TSSOP−14

CASE 948G

1

8

SOIC−8

CASE 751

1

5

TSOP−5

CASE 483

1

8

UDFN8

CASE 517AJ
