Surface Mount Multilayer Ceramic Chip Capacitors (SMD MLCCs)

HV-HT Series, High Voltage, High Temperature 200°C, C0G Dielectric, 500 – 2,000 VDC (Industrial Grade)

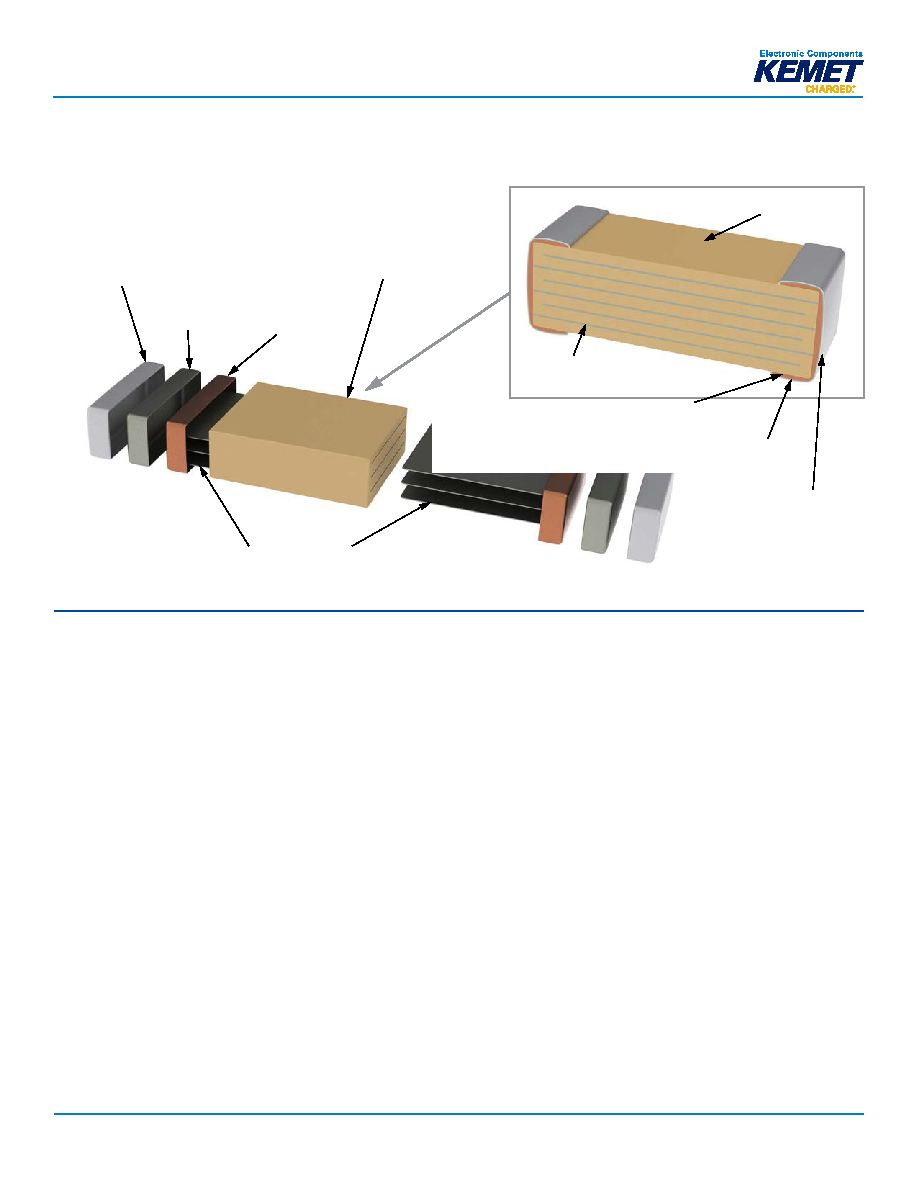

Construction (Typical)

Dielectric Material

Detailed Cross Section

Barrier Layer

(Ni)

Inner Electrodes

(Ni)

Barrier Layer

(Ni)

Inner Electrodes

(Ni)

Dielectric Material

Termination Finish:

C = 100% Matte Sn

L = SnPb - 5% Pb min

E = Gold (Au) 1.97 - 11.8 µin

F = Gold (Au) 30 - 50 µin

G = Gold (Au) 100 µin min

Termination Finish

(See options at left)

End Termination/

External Electrode

(Cu)

End Termination/

External Electrode

(Cu)

Capacitor Marking (Optional):

Laser marking option is not available on:

• C0G, Ultra Stable X8R and Y5V dielectric devices

• EIA 0402 case size devices

• EIA 0603 case size devices with Flexible Termination option.

• KPS Commercial and Automotive grade stacked devices.

These capacitors are supplied unmarked only.
