Data Sheet

ADP195

Rev. C | Page 7 of 12

CH1 2V

CH2 2V

M4µs

A CH1

2.32V

T 10%

CH3 1A Ω BW

VOUT

LOAD CURRENT

VEN

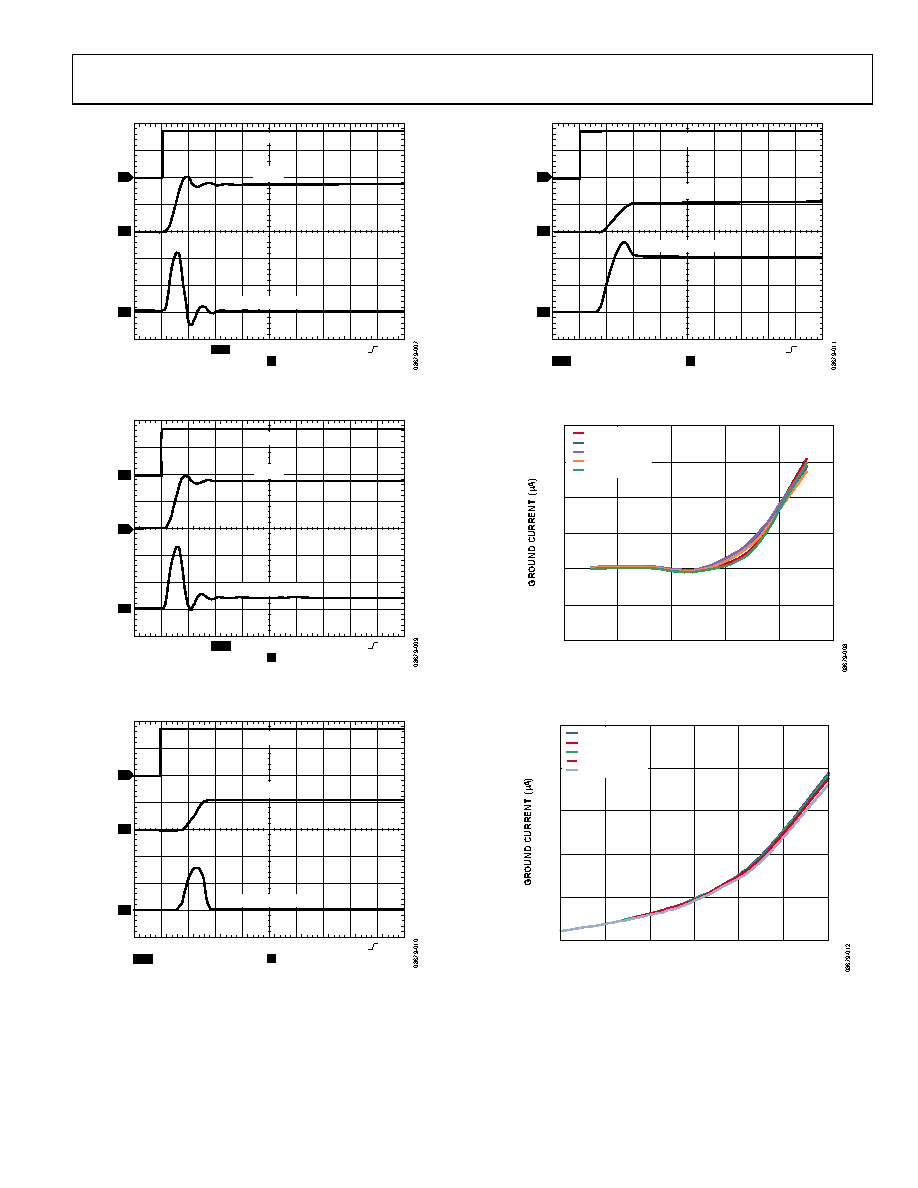

Figure 11. Typical Rise Time and Inrush Current,

VIN = 3.6 V, No Load

CH1 2V

CH2 2V

M4µs

A CH1

2.32V

T 10%

CH3 1A Ω BW

VOUT

LOAD CURRENT

VEN

Figure 12. Typical Rise Time and Inrush Current,

VIN = 3.6 V, Load = 200 mA

CH1 2V

CH2 1V

M10µs

A CH1

2.32V

T 10%

VEN

CH3 100mA Ω BW

VOUT

LOAD CURRENT

Figure 13. Typical Rise Time and Inrush Current,

VIN = 1.2 V, No Load

CH1 2V

CH2 1V

M10µs

A CH1

2.32V

T 10%

VEN

CH3 100mA Ω BW

VOUT

LOAD CURRENT

Figure 14. Typical Rise Time and Inrush Current,

VIN = 1.2 V, Load = 200 mA

–40

125

TEMPERATURE (°C)

IOUT = 10mA

IOUT = 100mA

IOUT = 200mA

IOUT = 300mA

IOUT = 500mA

Figure 15. Ground Current vs. Temperature

1.2

1.6

2.0

2.4

2.8

3.2

3.6

VIN (V)

IOUT = 10mA

IOUT = 100mA

IOUT = 200mA

IOUT = 500mA

IOUT = 1000mA

Figure 16. Ground Current vs. Input Voltage (VIN)
