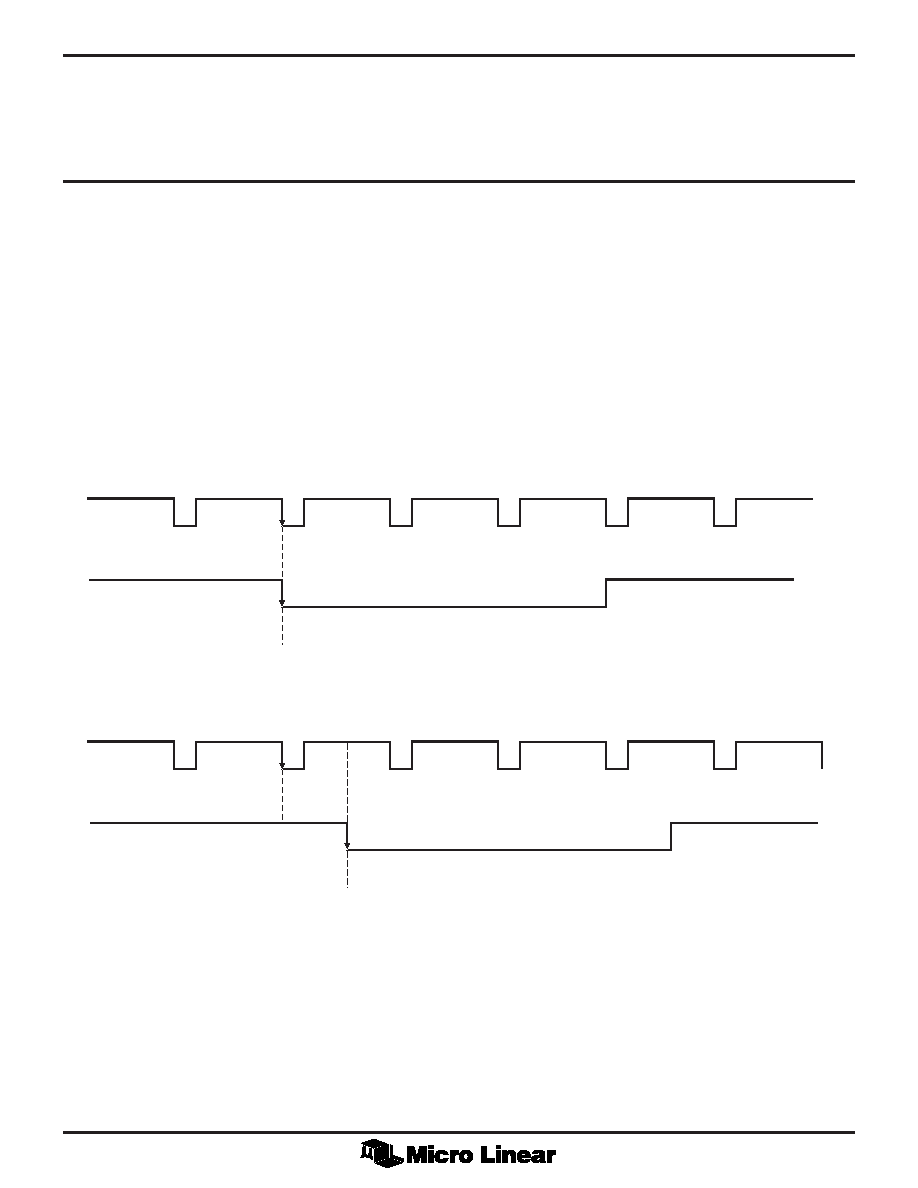

Figure 1. Example of the Beginning of the Odd And Even Fields vs. HSYNC and VSYNC in Master Mode.

(SLAVE/MASTER = 0, SENSE_HSYNC = 0, SENSE_VSYNC

===== 0)

fields (1-2) and (3-4). The ML6461 also supports a frame

based synchronization mode (B17 = FSYNC = 1) where a

vertical reset pulse unconditionally resets the vertical line

counter to line 4. For proper operation only one active

edge should be sent per frame. The polarity is controlled

by SENSE_VSYNC (B10).

HSYNC

Line 3

Line 4

Line 5

Line 6

HSYNC

Line 265

Line 266

Line 267

Line 268

VSYNC

VSYNC

Beginning of

an Odd Field

Beginning of

an Even Field

Line 269

Coincident

Active Edges
