FEATURES:

738

INVERTING

Very Fast Settling Time

Very Fast Slew Rate

Wide Bandwidth

Low Noise

Very Accurate (Low Offset)

Contact MSK for MIL-PRF-38534 Qualification Status

MIL-PRF-38534 CERTIFIED

DESCRIPTION:

The MSK 738 is an inverting operational amplifier that exhibits an impressive combination of high speed and precision

D.C. characteristics. The Op-amp's very fast slew rate, very fast settling time and wide bandwidth, along with its ex-

tremely low input offset voltage, offset drift and low noise, make it an outstanding performer.

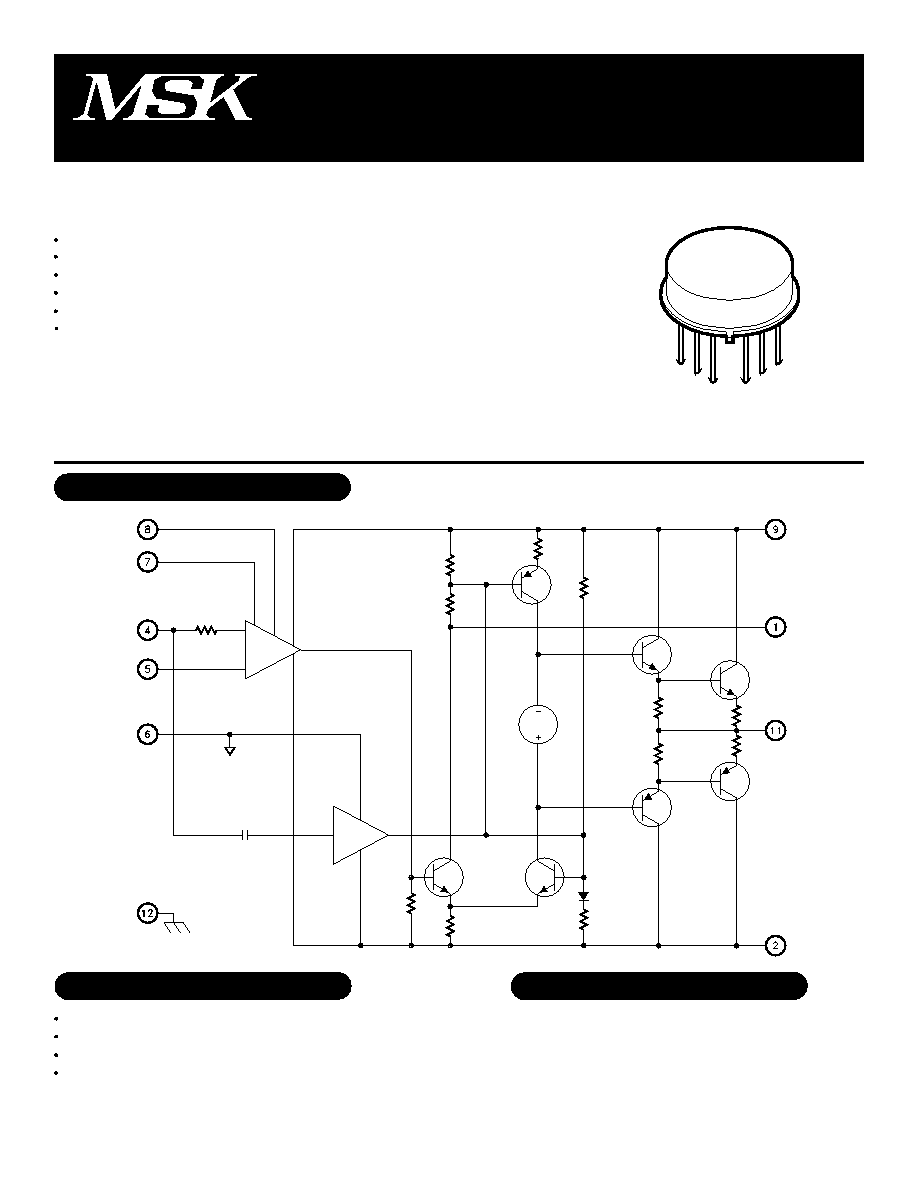

EQUIVALENT SCHEMATIC

TYPICAL APPLICATIONS

TYPICAL APPLICATIONS

PIN-OUT INFORMATION

High Performance Data Aquisition

Coaxial Line Driver

Data Conversion Circuits

High Speed Communications

Compensation

Negative Power Supply

NC

Inverting Input

Non-Inverting Input

Ground

1

2

3

4

5

6

Balance

Balance

Positive Power Supply

NC

Output

Case Connection

7

8

9

10

11

12

Rev. C 9/06

1

EQUIVALENT SCHEMATIC

OPERATIONAL AMPLIFIER
