NJM431 datasheet(4/4 Pages) NJRC

Nome de Peças	NJM431

Descrição Electrónicos	ADJUSTABLE PRECISION SHUNT REGULATOR

PDF	4 Pages

Scroll/Zoom	100%

Fabricante Electrônico	NJRC [New Japan Radio]

Página de início	http://www.jrc.co.jp/eng/index.html

Logo

4 / 4 page

NJM431

- 4 -

Ver.2003-07-18

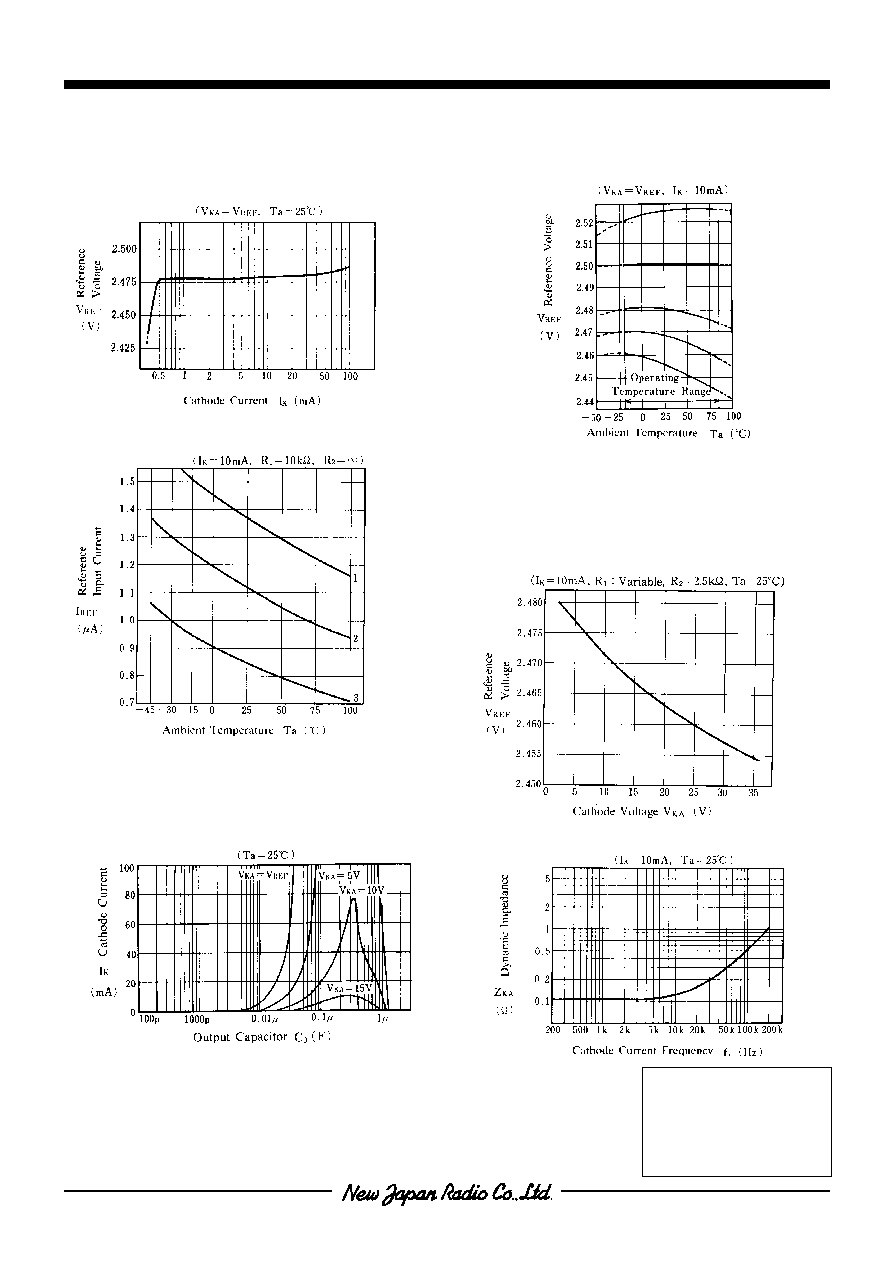

■TYPICAL CHARACTERISTICS

Reference Voltage

Reference Input Current

VREF(dev)

(Ta = -20 to 25°C)

(Ta = 25 to 85°C)

(Ta = 25°C)

No. 1

+5mV

+1mV

2525mV

No. 2

0mV

2501mV

No. 3

0mV

-6mV

2481mV

No. 4

-2mV

-9mV

2468mV

No. 5

-5mV

-12mV

2456mV

Reference Voltage

IREF(dev)

No.1 -0.38µA

No.2 -0.27µA

No.3 -0.21µA

Safety Operating Boundary Condition

Dynaminc Impedance

[CAUTION]

The specifications on this databook are only

given for information , without any guarantee

as regards either mistakes or omissions. The

application circuits in this databook are

described only to show representative usages

of the product and not intended for the

guarantee or permission of any right including

the industrial rights.

Note) Oscillation might occure while operating

within the range of safety curve.

So that, it is necessary to make ample

margins by taking considerations of

fluctuation of the device.
