MT-059 Folha de dados(PDF) 9 Page - Analog Devices

Nome de Peças MT-059
Descrição Electrónicos  Low Cost, Dual/Triple Video Amplifiers
PDF  13 Pages
Scroll/Zoom Zoom In 100%  Zoom Out
Fabricante Electrônico  AD [Analog Devices]
Página de início  http://www.analog.com
Logo AD - Analog Devices

MT-059 Folha de dados(HTML) 9 Page - Analog Devices

Back Button MT-059 Datasheet HTML 5Page - Analog Devices MT-059 Datasheet HTML 6Page - Analog Devices MT-059 Datasheet HTML 7Page - Analog Devices MT-059 Datasheet HTML 8Page - Analog Devices MT-059 Datasheet HTML 9Page - Analog Devices MT-059 Datasheet HTML 10Page - Analog Devices MT-059 Datasheet HTML 11Page - Analog Devices MT-059 Datasheet HTML 12Page - Analog Devices MT-059 Datasheet HTML 13Page - Analog Devices
Zoom Inzoom in Zoom Outzoom out
 9 / 13 page
background image
REV. D
AD8072/AD8073
–8–
1k
1k
RL
150
50
VIN
VOUT
0.1 F
0.1 F
0.001 F
0.001 F
10 F
10 F
+
+
VS
–VS

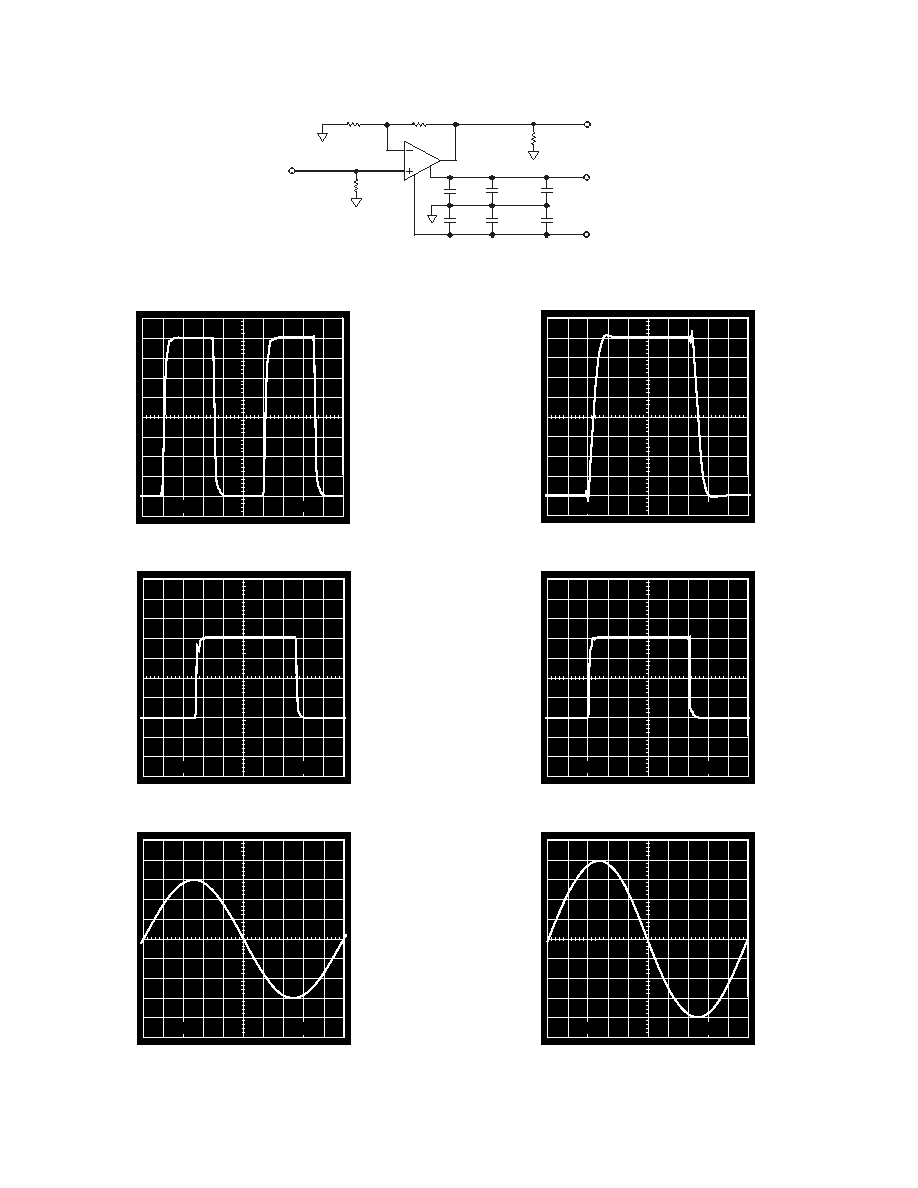

TPC 18. Test Circuit; Gain = +2
*
VS =
±2.5 V operation is identical to VS = 5 V single supply operation.
20ns
250mV
TPC 19. 2 V Step Response; G = +2, VS =
±5 V
20ns
50mV
TPC 20. 200 mV Step Response; G = +2, VS =
±5 V
20ns
1V
TPC 21. Sine Response; G = +2, VS =
±5 V
10ns
250mV
TPC 22. 2 V Step Response; G = +2, VS =
±2.5 V*
20ns
50mV
TPC 23. 200 mV Step Response; G = +2, VS =
±2.5 V*
20ns
250mV
TPC 24. Sine Response; G = +2, VS =
±2.5 V*
